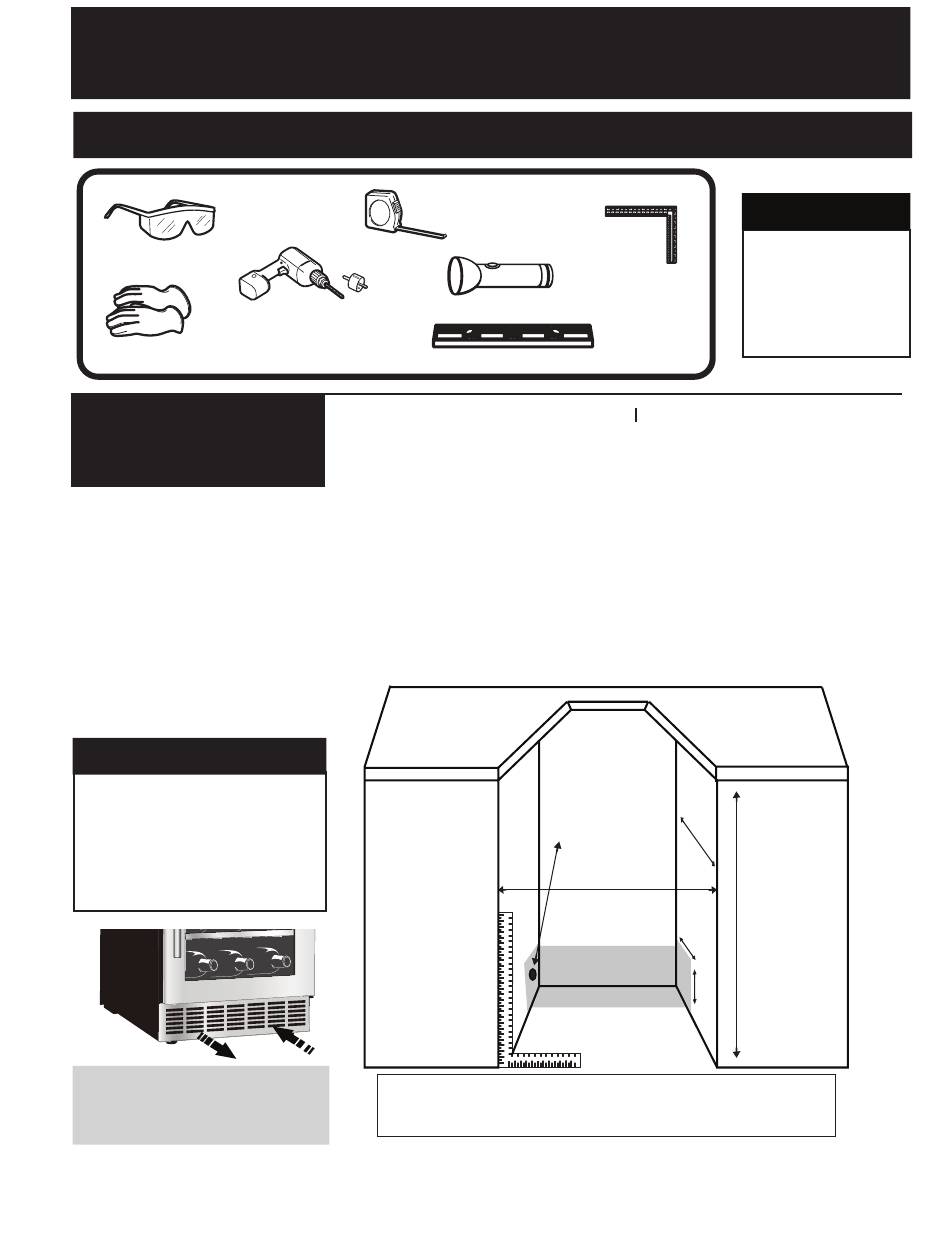

Installation Instructions; Tools You Will Need; Preparing The Enclosure - Danby Silhouette Professional DWC031D1BSSPR Manuel Du Propriétaire

Installation Instructions - Intergrated Application

Tools You Will Need

Safety goggles
Electric drill with hole bit
Gloves
Preparing the
Enclosure
• It is recommended that you do
not install the Wine Cooler
into a corner (i.e. directly beside
a wall). This is to allow the
door(s) to have a greater then
90° opening swing. A limited
door swing will prevent the
shelves from sliding out as
intended, and may lead to dam-
aging the door gasket(s).
Electrical Requirements:
The appliance must be
connected to an individual
properly grounded electrical
outlet, protected by a 15 or
20 ampere circuit breaker or
time delay fuse.
NOTE: This unit is front breathing.
Do not block the front air vent. Blockage
of the vent will result in high operating
temperatures and system failure. (Fig.E)
Tape measure
Flashlight
Level
• The rough cabinet opening
must be on a level floor area
and at least 24 / " deep
14
16
(63.2cm) by 15 / "(38.6cm)
3
16
wide. The opening should also
have a height of at least
34 / "(86.8 cm).
3
16
• The electrical outlet may be
positioned from within either
side of the adjacent cabinetry , or
the rear of the shaded area (as
shown in Fig D).
Cabinet is
square
and plumb
*the listed depth requirement for the installation is assuming that
the electrical outlet is located in the adjacent cabinetry or is flush
mounted in the rear wall, not surface mounted in the enclousre.
8
Carpenter square
Important： If the electrical outlet
is surface mounted (not flush)
within the enclosure, the depth
requirement for the installation
may be affected.
• If the electrical outlet is located
inside the adjacent cabinetry, cut
a 1 / "(3.81cm) diameter hole to
1
2
admit the power cord. If the cabi-
net wall is metal, the hole edge
must be covered with a bushing
or grommet.
24
14
/16"
min
1
1
/ " dia hole
2
*If electrical outlet
is in adjacent cabinetry
15 / "
3
16
1 / "
3
16
Electrical Access
6"
FOR YOUR SAFETY
While preforming
installations described
in this section. gloves,
safety glasses or
goggles should be
worn
"
/
3
34
16
From underside
of countertop
to floor
