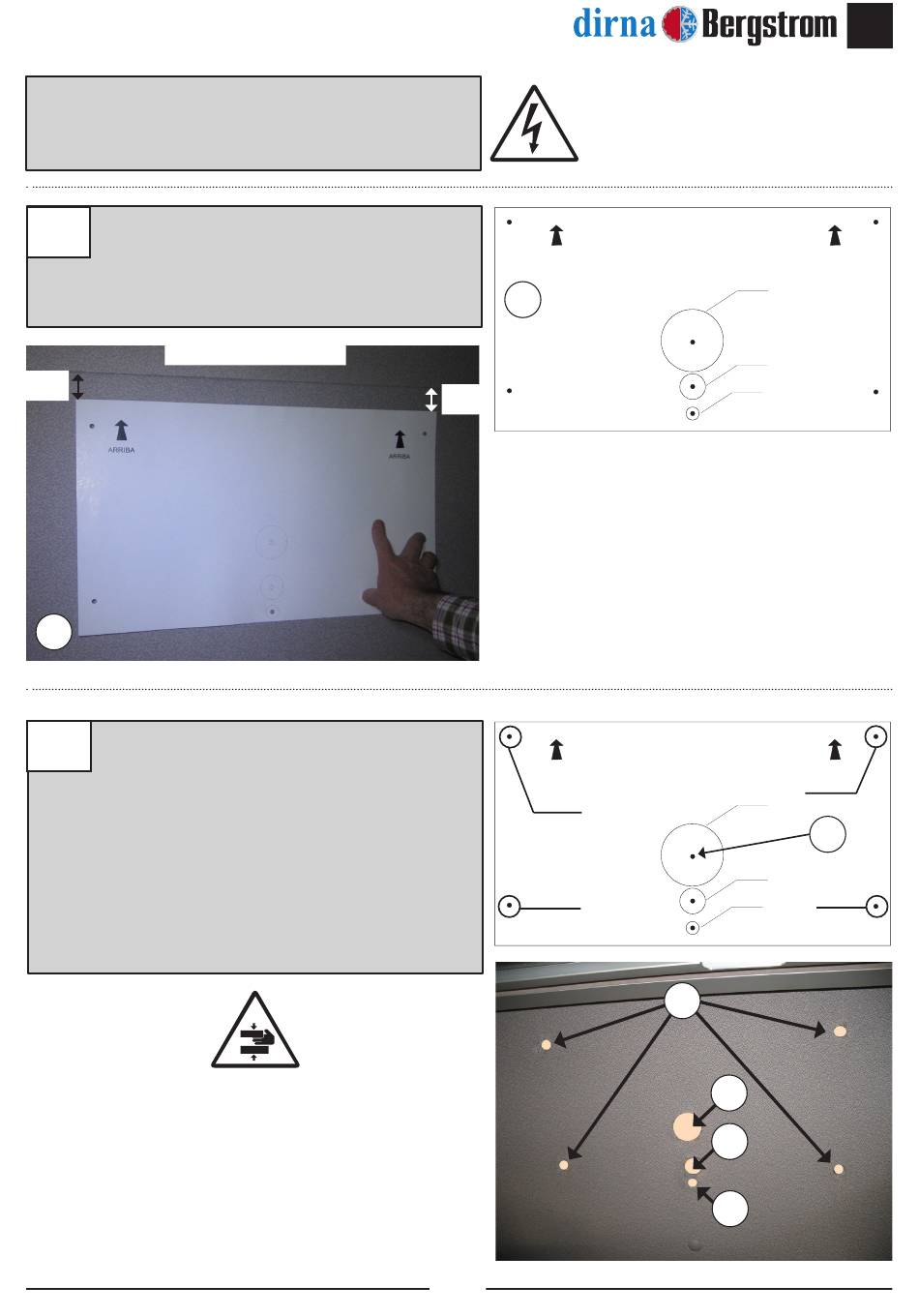

PRIOR OPERATIONS:
• Disconnect the battery.
• Remove the evaporator unit cover.
INSIDE THE CABIN:
1
Position the supplied template above the upper
bed in accordance with the measurements and
mark the boreholes.
30 mm
1
Make a Ø4 through bore with long broach in
2
bore position Ø48, and then make the following
bores.
A- Make (1) Ø35 borehole in
upholstery only.
B- Make (1) Ø19 borehole in
upholstery only
C- Make (1) Ø48 borehole in
upholstery only
D- Make (4) Ø22 borehole in
upholstery only
upholstery joint
UP
1
30 mm
UP
Ø 22
Ø 22
27
®
UP
Ø48
Ø35
Ø19
UP
Ø 22
Ø48
2
Ø35
Ø19 Ø 22
D
C
A
B
