POWERED SPEAKER
MS300
Owner's Manual
Mode d'emploi
Bedienungsanleitung
Manual del Usuario

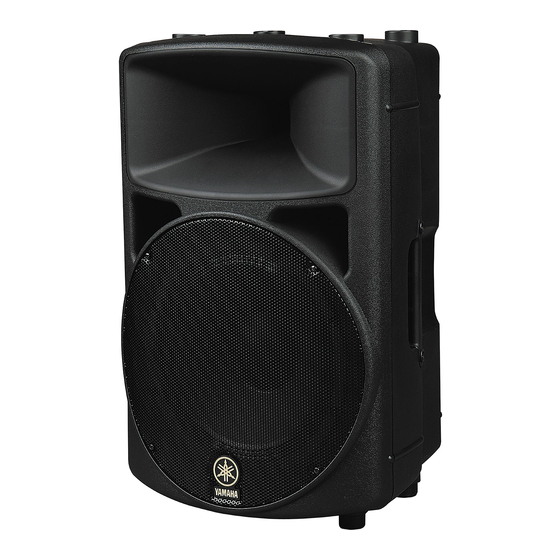

Thank you for purchasing the Yamaha MS300 powered speaker system.
The development of this powered bi-amplifier speaker system is a natural extension of
Yamaha's extensive experience and knowledge of PA devices. The MS300 faithfully repro-
duces sound for a wide range of applications. Please read this owner's manual thoroughly
to make the best use of the MS300 for the longest possible period of time. Keep the manual
in a safe place for future reference.
Features
• Lightweight, high-powered speaker with a
newly-developed 12-inch woofer
• The speaker uses an "EE Engine" based on
Yamaha's proprietary amplifier drive technology
for high-efficiency drive. It features a high-output
bi-amplifier configuration (LF 225 W and HF
85 W).
• Optional speaker stand and installation brackets
available for various applications.
Contents
Precautions............................................................... 3
Rear Panel................................................................. 4
Connection Examples.............................................. 5
Specifications............................................................ 6
General specifications .............................................. 6
Amp.unit .................................................................. 6
Dimensions .............................................................. 6
Performance graph .................................................. 6
Block Diagram.......................................................... 6
Installation Examples............................................... 7
