Overview of contents
Safety notes.......................................... B - 1
Description of apparatus ....................... B - 1
Set-up .................................................. B - 2
Operation.............................................. B - 2
Commissioning ..................................... B - 2
Shutting down ...................................... B - 2
Filter cleaning ....................................... B - 3
Transportation of apparatus .................. B - 3
Care & maintenance ............................. B - 3
Troubleshooting .................................... B - 3
Technical data ...................................... B - 3
Spare parts list ..................................... B - 4
Spare parts overview ............................ B - 4
Care and maintenance log .................... B - 4

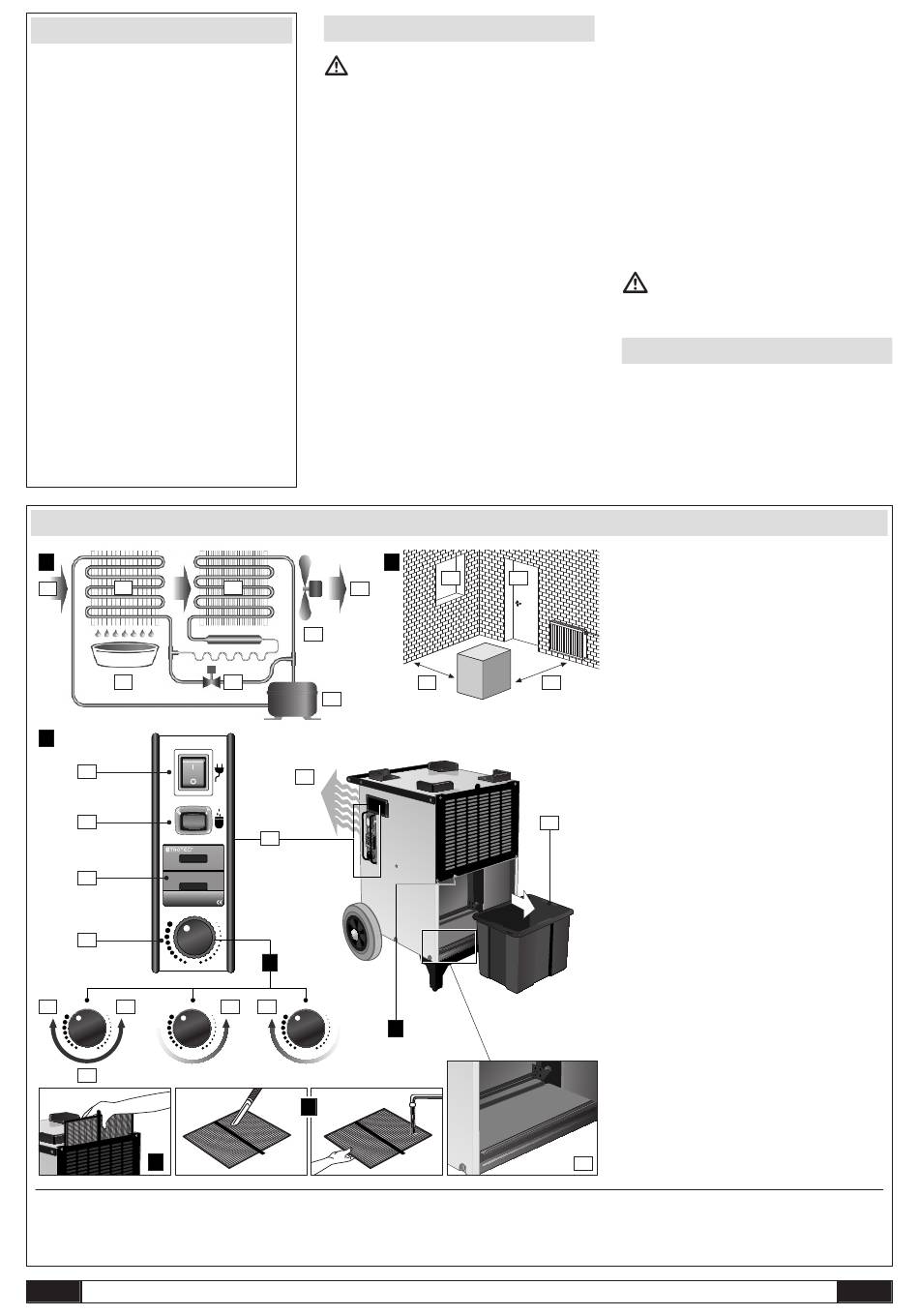

Pictures of apparatus
A
A.4
A.6
A.2
C
1
C.8
0
C.6
0 0 0 1 7 2
C.7
0 0 0 2 0 7
Max.
C.4
Med.
D.2 D.1
Max. Min. Max.
Med. Med.
D.3
F
This publication replaces all previous announcements. No part of this publication may be reproduced, processed using electronic systems, replicated or distributed in any form, without our written authorisation. Subject to technical changes. All rights re-
served. Names of goods are used without guarantee of free usage keeping to the manufacturer's syntax. The names of goods used are registered and should be considered as such. We reserve the right to modify design in the interest of on-going prod-
uct improvement, such as shape and colour modifications. The scope of delivery may vary from that in the product description. All due care has been taken in compiling this document. We accept no liability for errors or omissions. © TROTEC
B - 1

Safety notes

This manual should be read carefully before
setting up / using the apparatus, and it should
always be kept close to the place of use or
on the machine!
The apparatus was subjected to extensive material, function
and quality tests before delivery.
Nevertheless, dangers can arise from the use of the appara-
tus if it is incorrectly used by untrained personnel!
Please observe the following instructions.
• The apparatus should not be set up and operated in
rooms where a danger of explosion exists.
• The apparatus should not be set up and operated in
saliferous environments or where the ambient air
contains oil, sulphur or chlorine.
• The apparatus must be placed upright in
a stable position.
• The apparatus should not be subjected to direct
contact with running water.
• Unrestricted access to the air intake and air exhaust
must always be guaranteed.
• The air intake side must be kept free of dirt and
loose objects.
• Never insert foreign objects into the apparatus.
A.3
A.7
A.1
A.8
A.5
C.1
C.2
h
kWh
Min.
D
D.4 D.5
Min. Max. Min.
Med.
G
Operating manual dehumidifier TTK 170 S
B
B.1 B.2
B.3 B.4
C.3
E
• The apparatus must never be covered or transported
during operation.
• All electrical cables outside of the apparatus are to be
protected from damage (e.g. by animals).
• Extension of the mains cables must be carried out with
due regard for the installed load of the apparatus, cable
length and application.
• The apparatus may only be transported upright, the
condensate container must be emptied before each
change of location.
• It is not permitted to operate or utilise the apparatus
in a manner other than that described in this manual.
All liabilities and warranty claims are invalidated in the
event of non-compliance with this stipulation.
Work on the refrigeration system and the electri-
cal equipment may only be carried out by an
authorised & qualified company!

Description of apparatus

The apparatus has been designed for automatic air
dehumidification. It can be easily transported and set
up due to its compact dimensions.
The apparatus works in accordance with the condensation
principle. It is equipped with a hermetically-sealed refrigera-
tion system, a low-noise, low-maintenance ventilator and a
mains cable with plug.
A. Schematic representation of the principle of operation
A.1 Ventilator
A.2 Condensate container
A.3 Condenser
A.4 Evaporator
A.5 Compressor
A.6 Humid room air
A.7 Dehumidified room air
A.8 Solenoid valve
B. Set-up
B.1 Keep windows closed
B.2 Keep doors closed
B.3 Keep apparatus at least 0.5 m away from walls
B.4 Keep apparatus away from heaters or other
sources of heat
C. Operation
C.1 Air intake
C.2 Operating console
C.3 Condensate container (tank)
C.4 Rotary-type control switch
C.5 Rocker
C.6 Tank warning lamp
C.7 Dual counter for operating hours
and power consumption
C.8 On/off switch (mains switch)
D. Set-up for operating mode
D.1 Anticlockwise limit - off position
(appliance turned off)
D.2 Clockwise limit - maximum position
(permanent operation)
D.3 Hygrostat-controlled mode
D.4 Reduce dehumidification performance
D.5 Increase dehumidification performance
E. Connecting nozzle / hose connection
F. Filter
C.5
G. Filter cleaning
®
EN
