2.2.5. NTP option

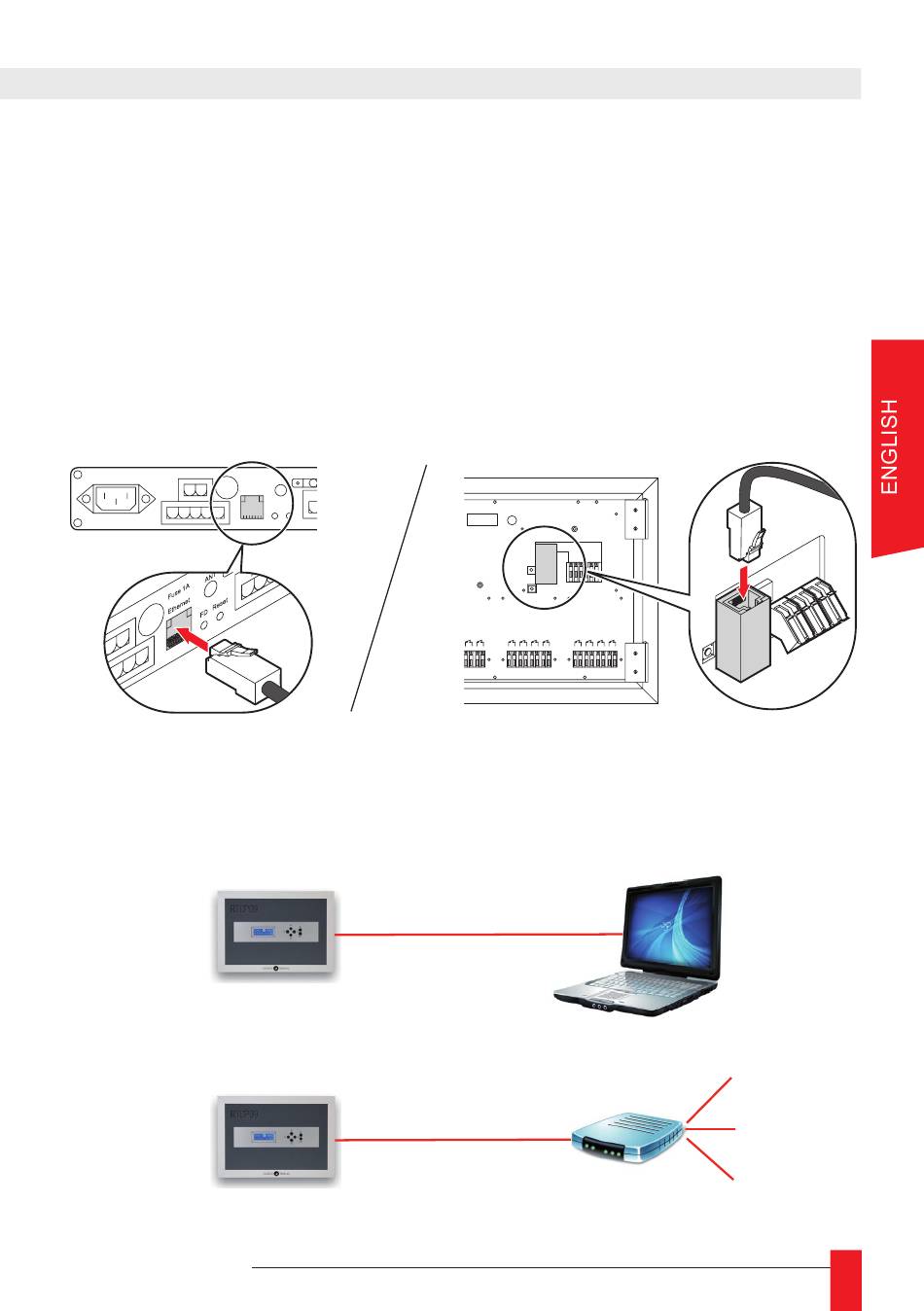

Connecting the RTCP09 to the network
The RTCP09 should be connected to the network in 3 cases:
• To access the web interface.
• To program relay outputs (if available).
• Constantly, for the NTP server or client to function properly, depending on the avai-
lable options.
The RTCP09 is connected to the network via an RJ-45 cable.
Rack version
Fuse 1A
Impuls
Ethernet
AC 230V, 50-60Hz, 0,1A
► There can be 2 types de connection:
• Direct connection:
• Connection via a network:
MDE-RTCP09-3060V2.2
ANT
A B C D E
FD Reset
IMPULS. OUT
AFNOR OUT A
Crossover cable
Câble croisé
Straight cable
Câble droit
Unit version
F G H I J K L
230V;50-60Hz;0,1A
FUSE 1A
RESET
FD
B C D E F G H I J K L
Distributor
Répartiteur
(switch, hub, ...)
(switch, hub, etc.)
AFNOR
