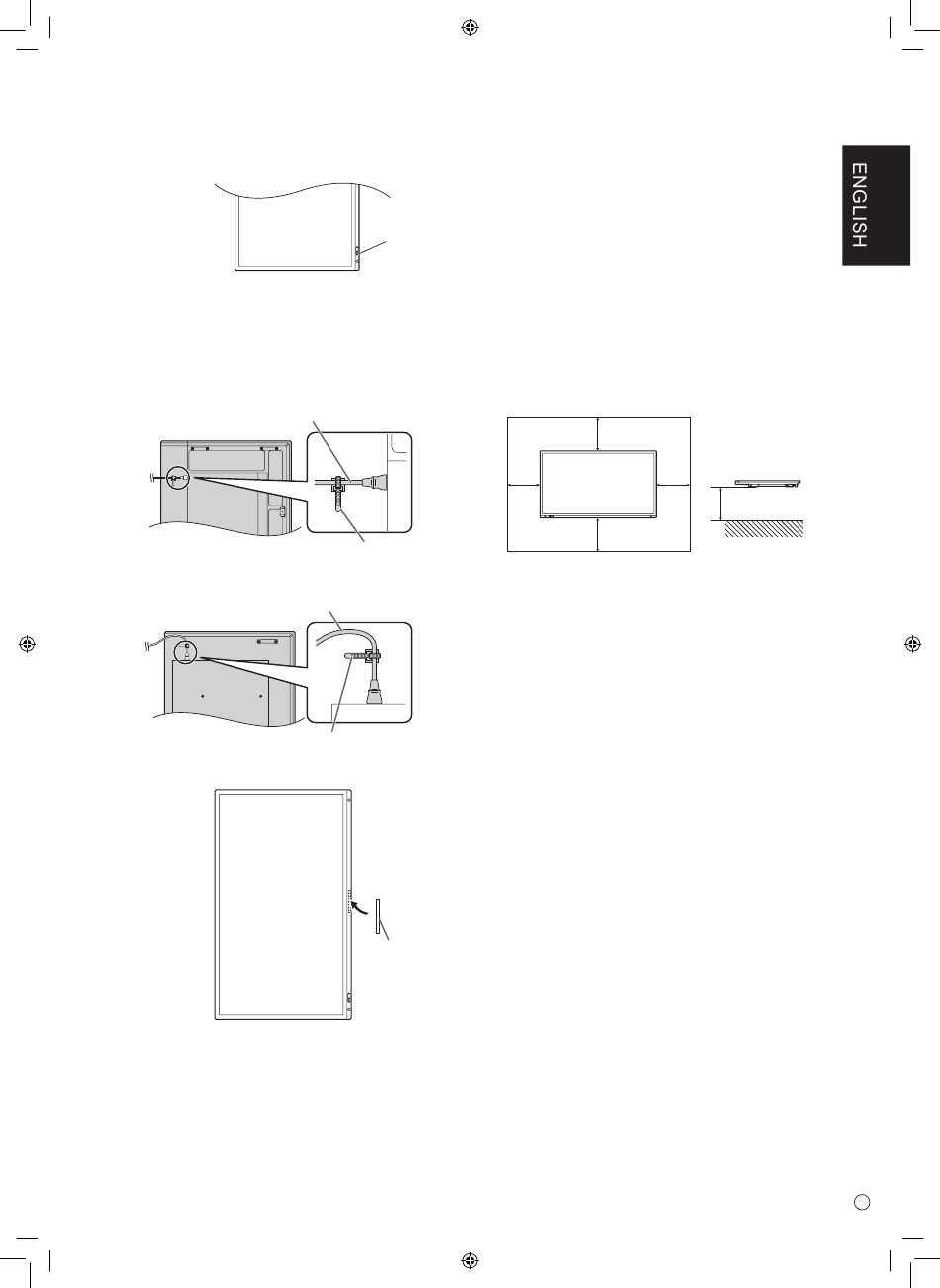

• Adhere to the following when installing the monitor in its
portrait orientation. Failing to adhere to the following may
cause malfunctions.
- Install the monitor such that the power LED is located on
the bottom side.
- Set the "PORTRAIT/LANDSCAPE INSTALL" on the
ADMIN menu to "PORTRAIT".
(See OPERATION MANUAL.)
- Be sure to clamp the power cord (supplied) onto the cable
clamp attachment using the supplied cable clamp. When
clamping the power cord, take care not to stress the terminal
of the power cord. Do not bend the power cord excessively.
Power cord (Supplied)
PN-LA652
Power cord (Supplied)
• Use the cover SHARP logo when you install the monitor in
portrait orientation.
Power LED
Cable clamp (Supplied)
Cable clamp (Supplied)
Cover SHARP logo
Flat installation
• When using the monitor laying flat on a surface (when
the monitor is tilted more than 20 degrees upward from
the perpendicular in relation to a level surface), consult
an authorized dealer because there are some specific
mounting conditions.
Adhere to the following. Failing to adhere to the following
may cause malfunctions.
- Set "HORIZONTAL INSTALLATION" in the ADMIN menu
to "FACE UP". (See OPERATION MANUAL.)
- Use this monitor at the ambient temperature between
41°F (5°C) and 86°F (30°C). Provide 7-7/8 inch (200
mm) or more space between the monitor and the floor
or other mounting surfaces and surrounding objects to
prevent heat from accumulating inside. If it is difficult to
provide sufficient space or if the ambient temperature
may be outside of the range of 41°F (5°C) to 86°F (30°C),
install a fan or take other measures to keep the ambient
temperature within the required range.
7-7/8 [200]
7-7/8
[200]
7-7/8 [200]
- Do not press hard on the LCD panel or otherwise subject
it to impacts.
Unit: inch [mm]
7-7/8
[200]
7-7/8
[200]
5
E
