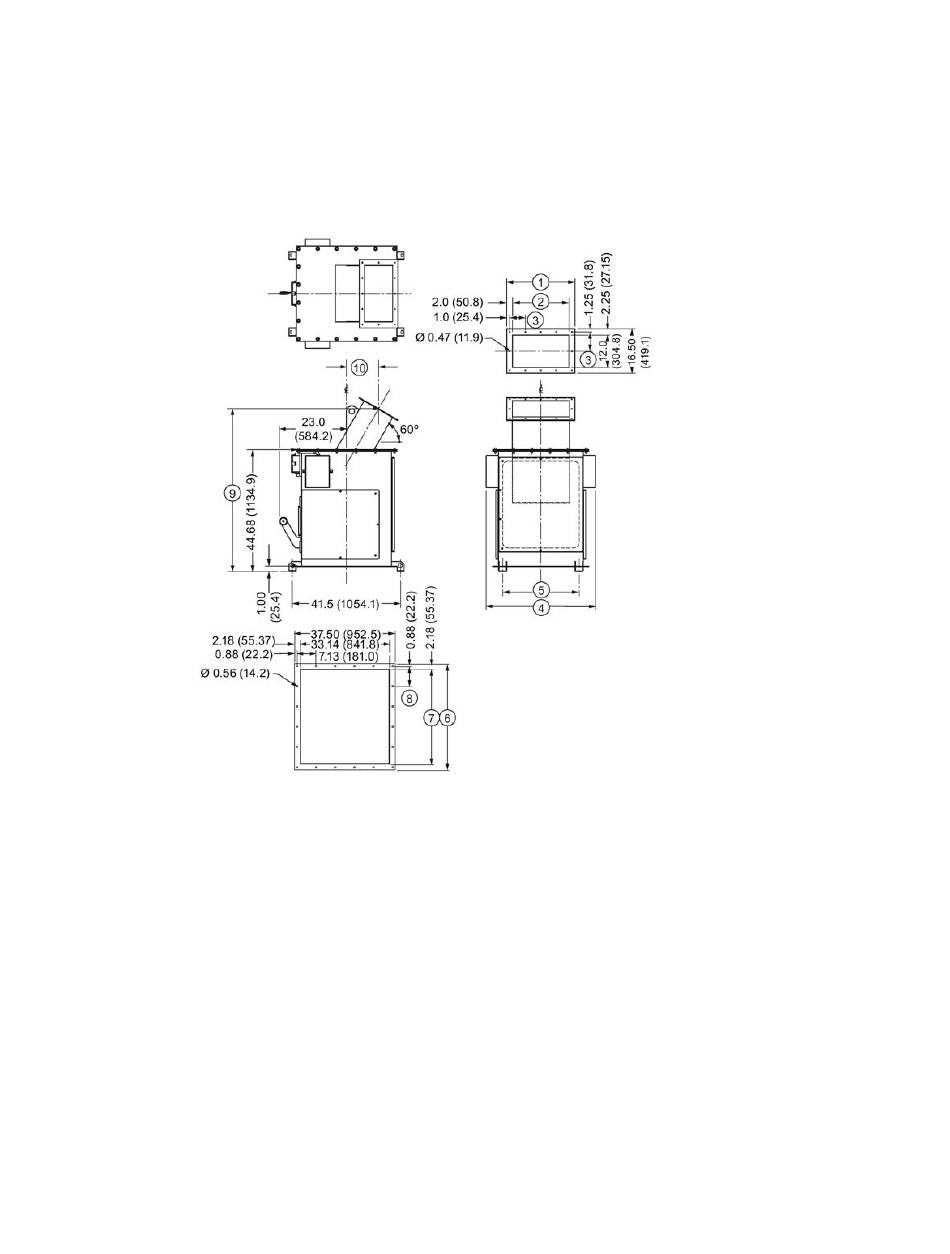

Dessins côtés
9.1
Dimensions SITRANS WF200
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
Dimensions en inch (mm)
SITRANS WF200 et WF250
Instructions de service, 02/2012, A5E37799413_AA
500 t/h
25.0 (635,0)
21.0 (533,4)
5.75 (146,1), x 4
40.68 (1033,3)
29.13 (739,8)
35.5 (901,7)
31.14 (791,0)
6.75 (171,5), x 5
59.0 (1498,6)
11.97 (304,1)
900 t/h
30.0 (762,0)
26.0 (660,4)
7.0 (177,8), x 4
46.68 (1185,7)
35.13 (892,2)
41.5 (1054,1)
37.14 (943,4)
6.63 (168,3), x 6
64.0 (1625,6)
14.86 (377,4)
9
39
