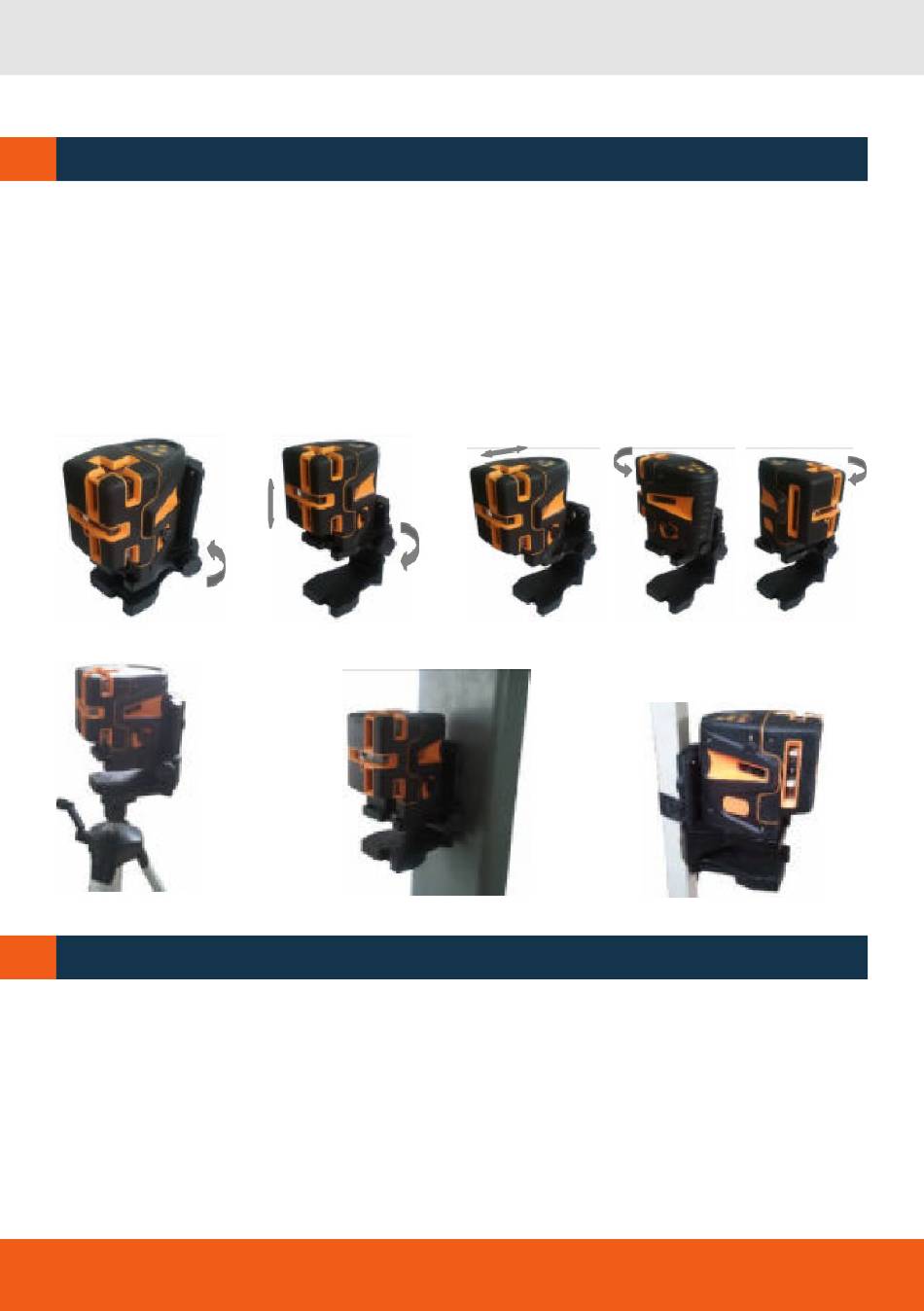

MULTI-FUNCTIONAL MOUNT

Fix the instrument on the multi-functional mount by using the 1/4" adapter.
To move the instrument up or down on the mount declamp hand screw. For locking the desired position
of the instrument tighten the hand screw again. (A)
The instrument can be rotated or moved backwards/frontwards on the mount by releasing the fixing
bolt. (B)
Use of the laser on a tripod. (C)
Use of the laser with magnets. (D)
Use of the laser with strap attachment. (E)
A
C
F

OPERATION

Switch instrument on/off
Turn the ON/OFF knob clockwise to switch the laser on. The ON/OFF LED will be illuminated. Turn ON/
OFF switch counter-clockwise to switch the instrument off. The ON/OFF LED will be off.
NOTE:
During transport ON/OFF knob (compensator lock) must be set to OFF . Disregard may lead to damage
to the compensator.
14
B
D
E
