Caliber RCD 232BT Guide De Démarrage Rapide page 3

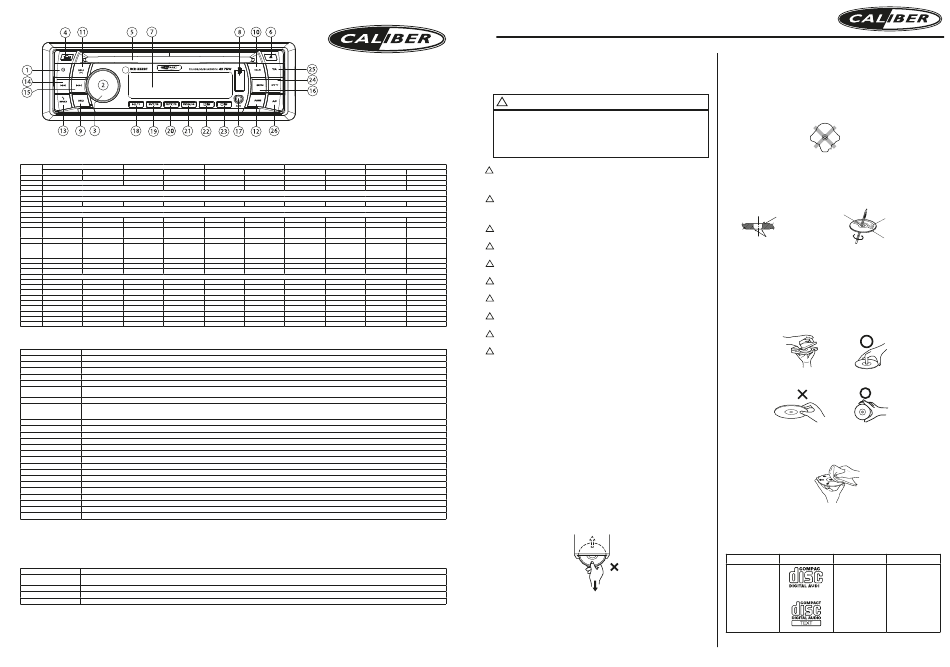

Key System Tuner
Short press long press Short press long press
1 Power Power off
2 Rotary Volume
3 Menu (audio / system)
4
5
6
7
8
9 Mode Mode
10 Display
11 Mute
12 AMS
13
Band
14 Seek down Manual down
15 Seek up Manual up
16 Scan
17
18 M1 Store M1
19 M2 Store M2
20 M3 Store M3
21 M4 Store M4
22 M5 Store M5
23 M6 Store M6
24 PTY
25 TA
26 AF
Description of the functions
Panel Release Push this button to release the frontpanel.
Eject Push this button to eject the CD out of the unit.
Power Power function to activate or deactivate the unit.
Band Band selection allows you to select different reception bands, f.i. FM1, FM2 and FM3
AF AF stands for Alternative frequencies; the tuner will return to alternative frequencies whenever the reception signal is getting worse.
TA TA stands for Traffic announcement which means that it will give you information about the traffic (if broadcasted) no matter what mode you are in (CD,USB, etc.) it will automatically interrupt the cd
and give the information, after that it automatically switches back to the selected mode
Manual up/down Long press to move the radio frequency number up/down step by step.
Menu (system) Press the VOL/SEL button for several seconds to activate the cyclical mode to choose from the following user instructions: DSP ON/OFF > ESP 12/45
(CD mode) > BEEP ON/OFF > AREA > VOL LAST/ADJ > SEEK. (Press to enter fuctions)
In DSP mode you can choose from preset EQ settings: FLAT, CLASSIC, POP, ROCK
Audio Menu The Audio menu button gives you the possibility to adjust your sound system with the following options Bass, Treble, Balance and Fader. These options can be used to fine tune your sound.
Mode The mode button allows you to go from one source (f.i. CD) to another source (f.i. Tuner) by pushing the button as many times as needed.
AMS AMS stands for Automatic store; in tuner mode it will automatically store the 6 strongest stations (M1-M6). Note: all previous stored stations are lost.
Rotary volume This knob allows you to adjust the volume from minimum to maximum level. NOTE high sound levels may cause damage to your ears.
M1-M6 These are the preset stations where you can store your favorite radio stations if in tuner mode.
Pause/Play This button allows you in CD, USB or SD mode to play or to pause the music.
Scan Scan will play 10 seconds of each song on the CD, USB or SD. If the preferred song is playing, push again and it will play that song.
Repeat Repeat will play a selected song or album continuously. Available in CD, USB and SD mode.
Shuffle Shuffle will play all the songs random. Available in CD, USB and SD mode.
File down/up In MP3 mode press this button to go up or down one folder.
Track down/up In MP3 mode press this button to go up or down one track
fast forward/backward Long press to fast forward to the CD, USB or SD.
3,5mm AV jack in To connect an external audio system.
USB poort When inserting a USB stick the unit will switch to USB mode.
SD card input (behind panel) Remove the frontpanel to insert SD card. When inserting a SD card the unit will switch to SD mode. (Max 16GB card)
Reset (behind panel) Use a non-metallic pointed object to press and hold the reset button for 5 seconds. The unit will be set to factory default.
Bluetooth
Pairing Activate Bluetooth on your mobile phone, and search for available devices. Select "CAR AUDIO", password "8888". If succesfull "Connected" is displayed, if not "Pairing Fail!" will be displayed for 3
seconds. The unit will go back to the previous mode.
Reconnect The unit will normally auto-reconnect.
Reject incomming call Press (MU) button if you not wish to answer the call, and return to normal playing mode.
Transfer To audio transfer from headunit back to the mobile phone. Long press the Transfer (BND) button to transfer the audio back to your mobile.
Note! Do not operate the unit while driving!
RCD 2 32BT
English
CD/MP3/WMA BT Audio
Short press long press Short press long press Short press
OK
Panel release
Disc slot
Eject
LCD display
USB port
Mode
Reject incoming
call/end call
Answer
incomming call
Track down fast backward Track down
Track up fast forward Track up
3,5mm AUX In Jack
Play/Pause Play/Pause
Intro
Repeat
Shuffle
File down
File up
RCD
PRECAUTIONS
WARNING
Points to observe for safe usage
• Read this manual carefully before using this disc and the system components. They contain in-
structions on how to use this product in a safe and effective manner. Alpine cannot be responsible
for problems resulting from failure to observe the instructions in this manual.
!
This symbol means important instructions. Fail-
ure to heed them can result in injury or material
property damage.
Bluetooth
Do not operate any function that takes your attention away from safely driving your vehicle.
!
long press
Any function that requires your prolonged attention should only be performed after coming to a
complete stop. Always stop the vehicle in a safe location before performing these functions. Failure
to do so may result in an accident.
! Keep the volume at a level where you can still hear outside noises while driving.
Excessive volume levels that obscure sounds such as emergency vehicle sirens or road warning
signals (train crossings, etc.) can be dangerous and may result in an accident. LISTENING AT
LOUD VOLUME LEVELS IN A CAR MAY ALSO CAUSE HEARING DAMAGE.
! Do not disassemble or alter.
Doing so may result in an accident, fire or electric shock.
Use only in cars with a 12V volt negative ground.
Transfer !
conversation to
(Check with your dealer if you are not sure.) Failure to do so may result in fire, etc.
mobile phone
! Keep small objects such as screws out of the reach of children.
Swallowing them may result in serious injury. If swallowed, consult a physician immediately.
Use the correct ampere rating when replacing fuses.
!
Failure to do so may result in fire or electric shock.
! Do not block vents or radiator panels.
Doing so may cause heat to build up inside and may result in fire.
! Use this product for mobile 12V applications.
Use for other than its designed application may result in fire, electric shock or other injury.
Do not place hands, fingers or foreign objects in insertion slots or gaps.
!
Doing so may result in personal injury or damage to the product.
! Halt use immediately if a problem appears.
Failure to do so may cause personal injury or damage to the product. Return it to your authorized
Alpine dealer or the nearest Alpine Service Centre for repairing.
Product cleaning.
Use a soft dry cloth for periodic cleaning of the product. For more severe stains, please dampen the
cloth with water only. Anything else has the chance of dissolving the paint or damaging the plastic.
Temperature.
Be sure the temperature inside the vehicle is between +45°C (+113°F) and 0°C (+32°F) before turn-
ing your unit on.
Moisture condensation.
You may notice the disc playback sound wavering due to condensation. If this happens, remove
the disc from the player and wait about an hour for the moisture to evaporate.
Damaged disc.
Do not attempt to play cracked, warped, or damaged discs. Playing a bad disc could severely dam-
age the playback mechanism.
Maintenance.
If you have problems, do not attempt to repair the unit yourself. Return it to your Alpine dealer or
the nearest Alpine Service Station for servicing.
Never attempt the following.
Do not grip or pull out the disc while it is being pulled back into the player by the automatic reload-
ing mechanism. Do not attempt to insert a disc into the unit when the unit power is off.
Inserting discs.
Your player accepts only one disc at a time for playback. Do not attempt to load more than one disc.
Make sure the label side is facing up when you insert the disc. "Disc error" will be displayed on your
player if you insert a disc incorrectly. If "Disc error" continues to be displayed even though the disc
has been inserted correctly, push the RESET switch with a pointed object such as a ballpoint pen.
Playing a disc while driving on a very bumpy road may result in skips, but this will not scratch the disc
or damage the player.
WARNING
Irregular shaped discs.
Be sure to use round shaped discs only for this unit and never use any special shaped discs. Use of
special shaped discs may cause damage to the mechanism.
new discs.
To prevent the disc from jamming, "Disc error" is displayed if discs with irregular surfaces are inserted
or if discs are inserted incorrectly. When a new disc is ejected immediately after initial loading, use
your finger to feel around the inside of the centre hole and outside edge of the disc. If you feel any
small bumps or irregularities, this could inhibit proper loading of the disc. To remove the bumps, rub
the inside edge of the hole and outside edge of the disc with a ballpoint pen or other such instrument,
then insert the disc again.
Oneffenheden
Installation location.
Make sure that the system will not be installed in a location subjected to:
• Direct sun and heat
• High humidity and water
• Excessive dust
• Excessive vibrations
Correct handling.
Do not drop the disc while handling. Hold the disc so you will not leave fingerprints on the surface. Do
not affix tape, paper, or gummed labels to the disc. Do not write on the disc.
Disc cleaning.
Fingerprints, dust, or soil on the surface of the disc could cause the DVD player to skip. For routine
cleaning, wipe the playing surface with a clean, soft cloth from the centre of the disc to the outer
edge. If the surface is heavily soiled, dampen a clean, soft cloth in a solution of mild neutral detergent
before cleaning the disc.
Disc-accessoires
There are various accessories available on the market for protecting the disc surface and improving
sound quality. However, most of them will influence the thickness and/or diametre of the disc. Using
such accessories can cause operational problems.
Playable discs
Music - CD
Opening in
Opening in
Nieuwe
het midden
het midden
Disc
Buitenkant
(oneffenheden)
Correct
Niet correct
Correct
Mark Recorded content Disc-size
Audio 12 cm
