INSTALLING THE BLADE GUARD

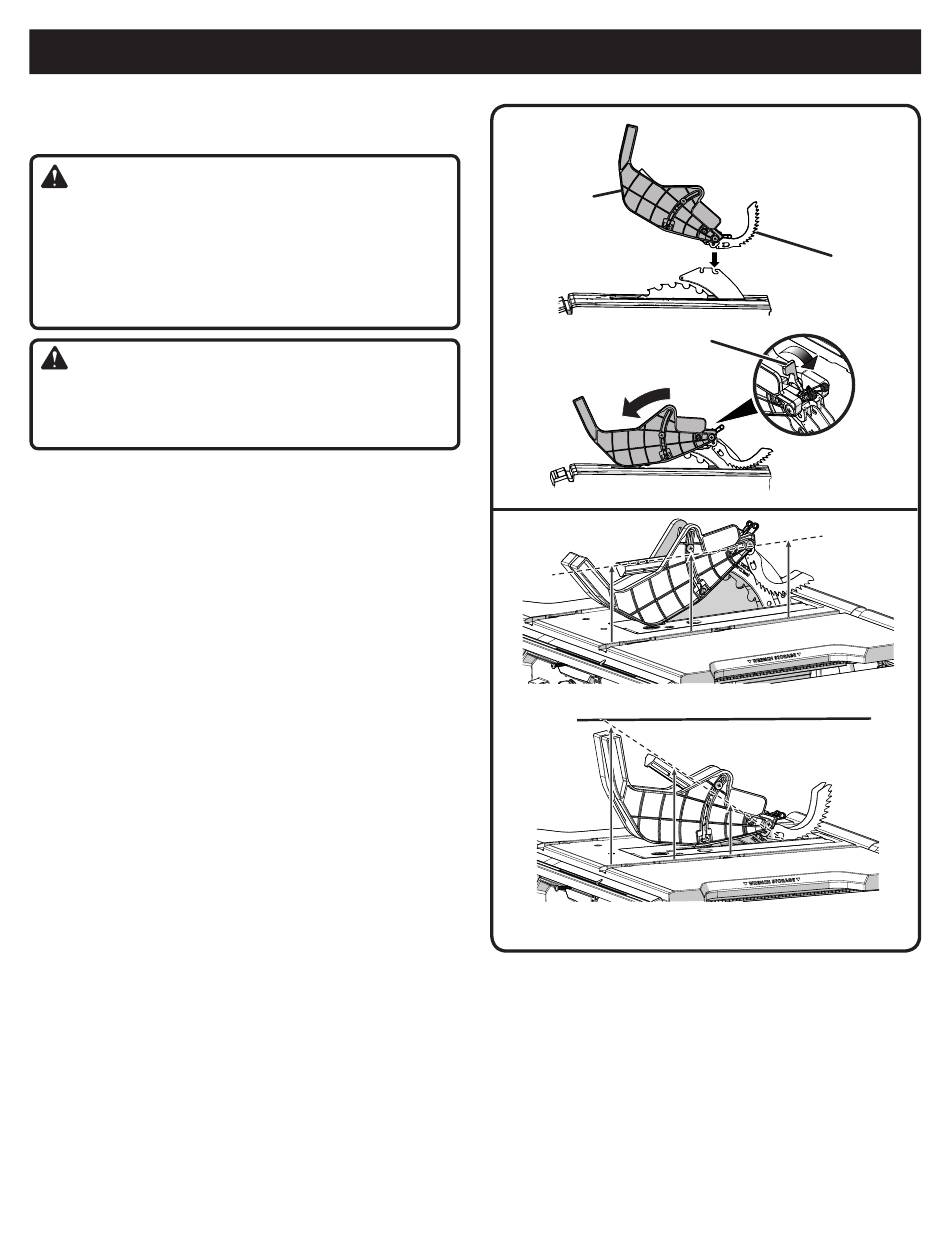

See Figures 14 - 15.
WARNING:
Always install the blade guard onto the riving knife in
the "up" position to provide proper blade coverage.
Installing the guarding components onto the riving knife
in any other position will prevent them from working
as designed, which could increase the risk of serious
personal injury.
WARNING:
Replace the blade guard if the anti-kickback pawls are
dull or damaged. Dull or damaged pawls may not stop
a kickback increasing the risk of serious personal injury.
Anti-kickback pawls are part of the blade guard for this saw.
They should only be used for through cuts. When not needed,
they may be positioned to be out of the way.
 Unplug the saw.
 Raise the saw blade by turning the height/bevel adjusting
handwheel clockwise.
 Place riving knife in "up" position.
 Reinstall the throat plate.
To install blade guard:
 Lift the guard lever up to unlock.
 With the front of the blade guard raised, lower the back
of the guard into the riving knife in the position shown.
Push the front of the guard down until it is parallel to the
table (see figure 15). If the blade guard is not parallel to
the table, the riving knife is not in the "up" position.
 Lock the guard in place by pushing the guard lever down.
 The blade guard side barriers may be lifted and folded
back, then positioned out of the way without being
removed for easier measurement.
NOTE: Blade alignment can be adjusted for different blade
widths. Refer to: To Check and Align the Riving Knife and
Saw Blade. Check the blade guard assembly for clearances
and free movement.
ASSEMBLY
BLADE
GUARD
19 - English
KICKBACK
PAWLS
GUARD
LEVER
CORRECT
INCORRECT
ANTI-
Fig. 14
Fig. 15
