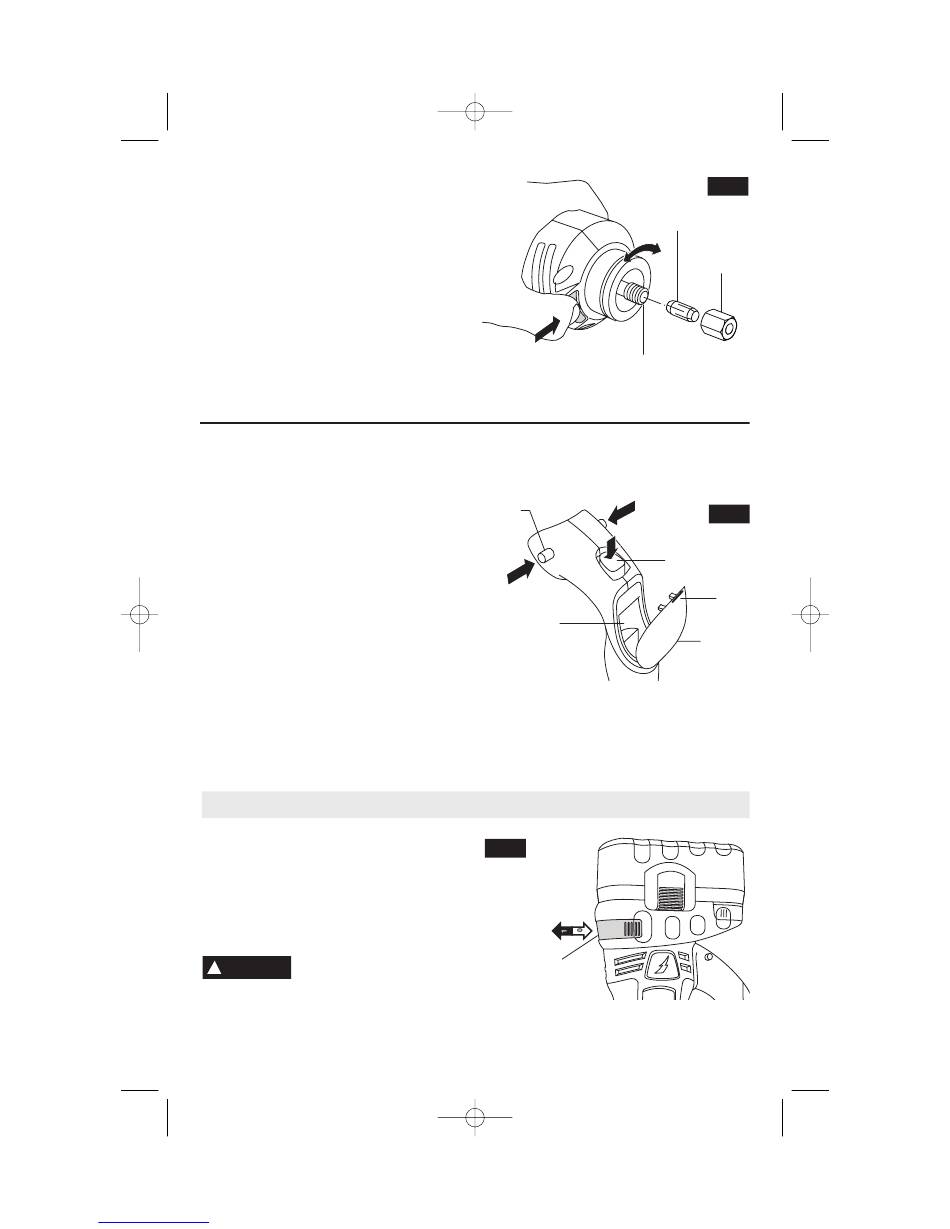

CHANGING THE COLLET
The 1/8" collet is used with 1/8" diameter Zip
bits, the 1/4" collet is used with 1/4" diameter
Zip bits and the 5/32" collet is used with
5/32" diameter Zip bits. To change collets,
first remove the bit. Continue to loosen and
unscrew the collet nut until you can remove it
from the tool. Remove the collet and replace
it with the other (Fig. 4). (Each collet is
double-ended, and either end is acceptable
to use.) By hand, re-tighten the collet nut
around the collet in a clockwise direction.
You are now ready to insert a new bit as
instructed in Installing Zip Bits (Fig. 2 or 3).
REMOVING AND INSTALLING THE HARD
AUXILIARY CONTROL HANDLE
Turn the tool OFF and remove battery pack.
Firmly grasp the tool. Depress and hold lock
pin from either side of the handle. While
depressing the lock pin, depress release
button so lock pin is engaged, then remove
handle (Fig. 5).
With the lock pin engage, gently engage the
two (2) front latches on handle into the tool and
push handle until it snaps securely into place.
Your handle is equipped with a bit and collet
storage area. To open door, pull tab on door
downward away from tool. To close door, lift
BUMP-OFF SLIDE "ON/OFF" SWITCH
This tool is switched "ON" by the slide switch
located on the front of the motor housing (Fig. 6).
TO TURN THE TOOL "ON" slide the switch
button out to "I" position.
TO TURN THE TOOL "OFF" slide the switch
button in to "0" position.
Hold the tool with both
WARNING
!
hands while starting, since
torque from the motor can cause the tool to
twist.
11:04 AM
Page 12
door upward toward the tool. Be sure door is
closed to prevent bits from falling out.
LOCK
PIN
BIT / COLLET
STORAGE
Operating Instructions
FIG. 6
BUMP-OFF
SLIDE "ON/OFF"
SWITCH
-12-
FIG. 4
COLLET
COLLET
NUT
OUTPUT SHAFT
FIG. 5
RELEASE
BUTTON
TAB
DOOR
