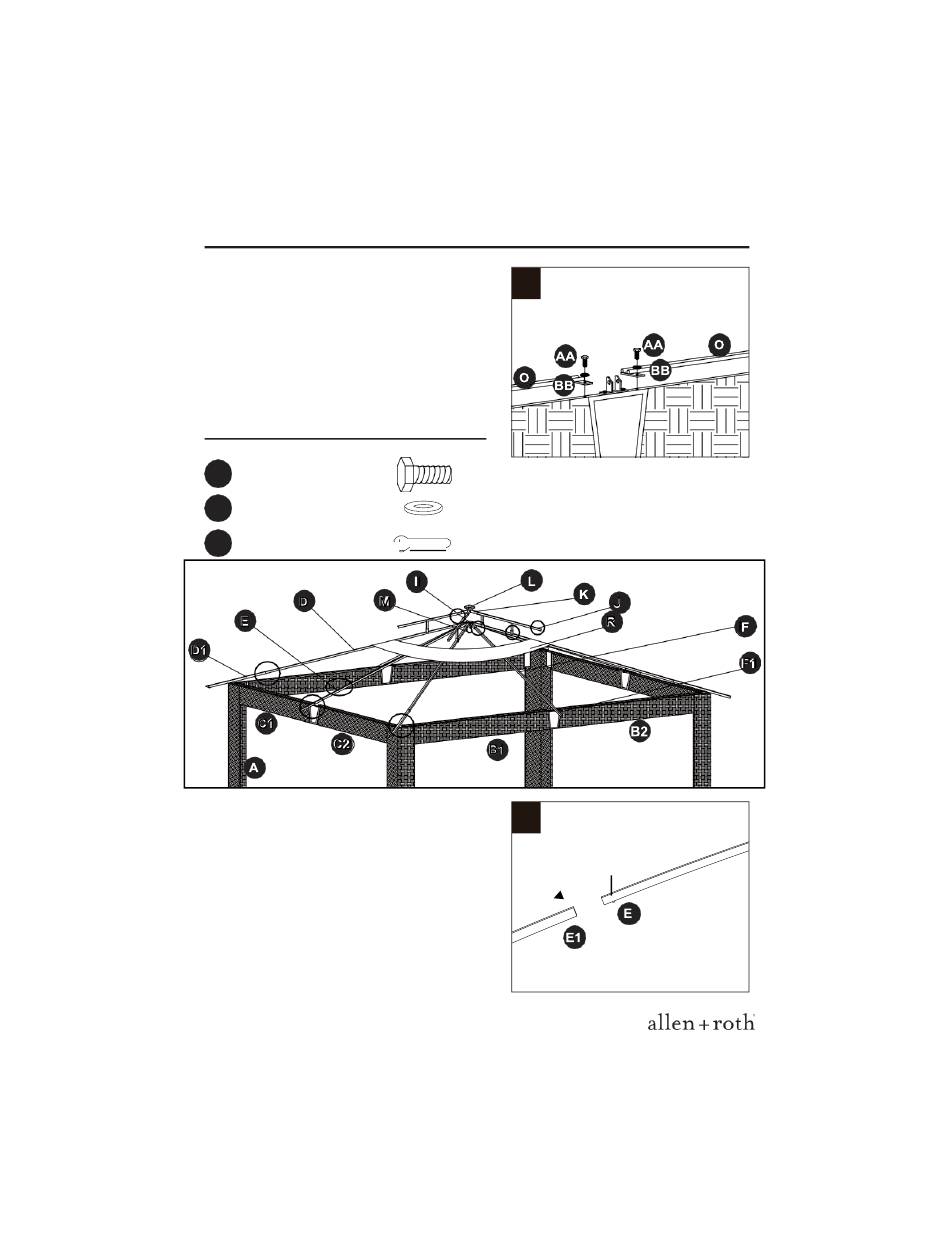

ASSEMBLY INSTRUCTIONS
5. Attach long mosquito netting pipes (O) to
the inside of long crossbeam assemblies
using bolts (AA) and flat washers (BB).
Tighten with wrench (FF).
Repeat this step for attaching short
mosquito netting pipes (P) to short
crossbeam assemblies.
Hardware Used
M6 x 20 mm Bolt
AA
BB
M6 Flat Washer
M6 Wrench
FF
Fig.9
Fig.6
Fig.8
6. Connect long middle beams (E) and long
middle beam lower tubes (E1). Repeat to
connect short middle beams (F) and short
middle beam lower tubes (F1).
5
x 8
x 8
x 1
Fig.12 Fig.14
Fig.13
Fig.10
Fig.7 Fig.15
Fig.11
