PEERLESS PM 13 Montage Et Installation

Installation and Assembly - TV Wall Mount
R
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, call
Peerless customer service at 1-800-729-0307.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic
building construction, and fully understands these instructions.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached
hardware and components.
• Never mount this product to a metal stud wall construction unless the stud can be verified to be constructed of
25 gauge steel minimum, the drywall is 1/2" thick minimum and you obtain and use the Peerless accessory kit
for metal studs.
• Never exceed the Maximum UL Load Capacity.
• If mounting to wood wall stud wall construction, make sure that mounting screws are anchored into the center of
the studs. Use of an "edge to edge" stud finder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws and nuts firmly, but do not overtighten. Overtightening can damage the items, greatly reducing
their holding power. See suggested torque values where applicable within these instructions.
IMPORTANT! Certain types of walls require additional mounting hardware...
WALL CONSTRUCTION
Wood Stud, Wood Beam
Solid Concrete, Cinder
Block
Metal Stud (Attachment to
metal studs has not been
evaluated by UL and the
product is not UL listed if
attached to metal studs.)
Other or unsure?
PM 13, PM 13S, The Maximum UL Load Capacity for this
PM 13W product is rated up to 13" TV, 125 lb
PM 20, PM 20C, The Maximum UL Load Capacity for this
PM 20S, PM 20W product is rated up to 20" TV, 125 lb
PM 27, PM 27C,
The Maximum UL Load Capacity for this
PM 27S, PM 27W product is rated up to 27" TV, 125 lb

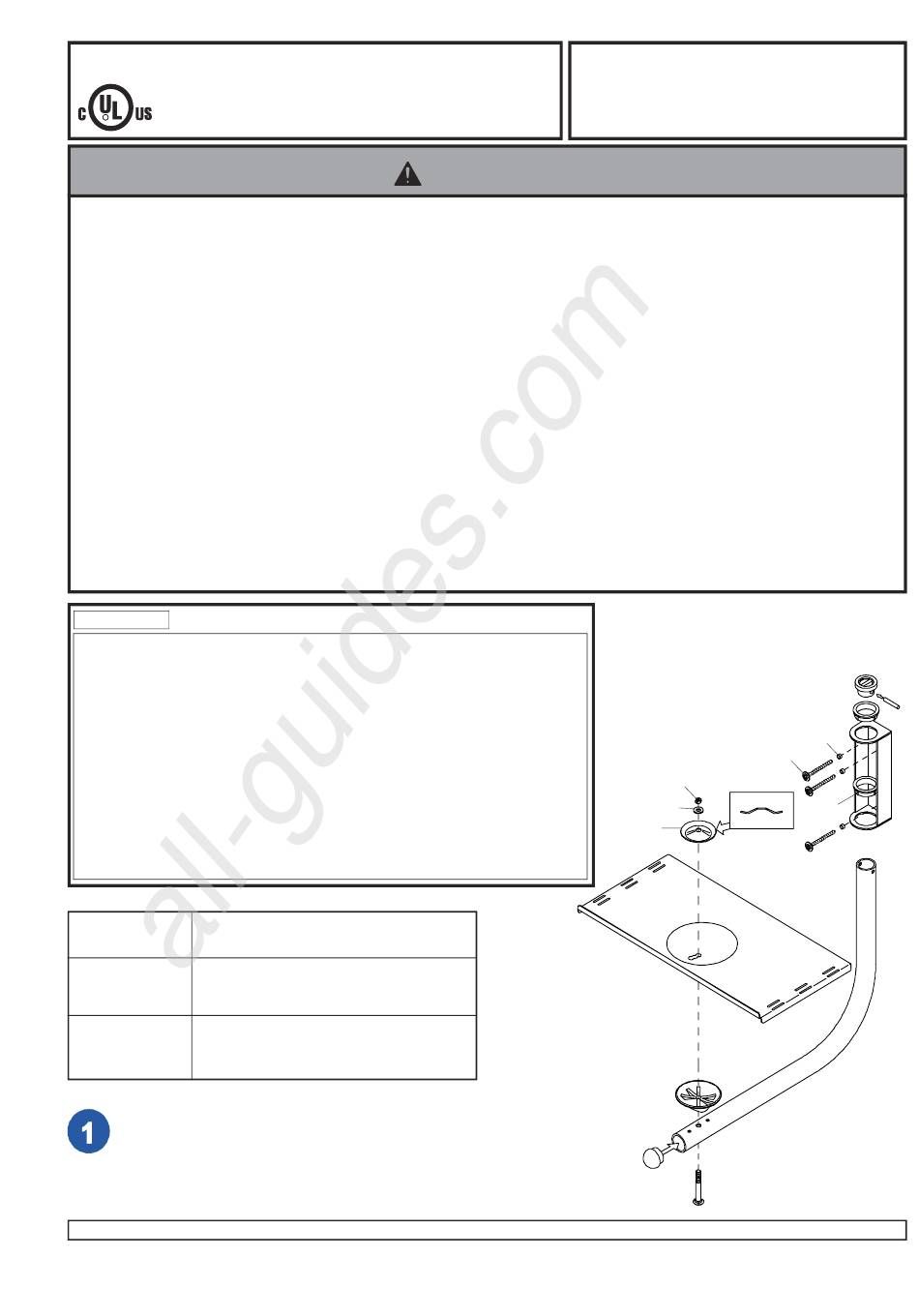

Before you start make sure all of the parts
shown are included with your product. See page
5 for a complete parts list.
Visit the Peerless Web Site at www.peerlessindustries.com
All manuals and user guides at all-guides.com
WARNING
ADDITIONAL HARDWARE REQUIRED
none
Contact Customer Service for accessory kit
unless you have a PM 20C or PM 27C which
includes concrete fasteners
Do not attach except with Peerless accessory kit
for metal studs; Contact Customer Service for
Peerless accessory kit for metal studs.
Contact Customer Service
Models: PM 13, PM 13S, PM 13W, PM 20,
PM 20C, PM 20S, PM 20W, PM 27, PM 27C,
PM 27S, PM 27W
M
1 of 12
ISSUED: 07-17-96 SHEET #: 170-9001-7 10-26-04
For customer service call 1-800-729-0307 or 708-865-8870.
B
A
G
E
H
I
J
L
N
C
D
E
F
K
