TB121C DIGITAL TIMER INSTRUCTIONS
Thank you for purchasing the TB121C Digital Timer.
Features:
• Easy set up
• 2 on /2 off settings
• 5 Ft. cord
• Can be used for incandescent lights up to 300 Watts
• Manual Override
Set Up:
Batteries Activation-The timer is shipped with 2 batteries (L1154/SR44/LR44) installed.
Pull the protective strip from the battery carrier (See Fig 1). The display will flash 12:00AM.
(Note: To conserve battery power, if the timer is not plugged in and no button is pushed,
the display will go blank. To restore, press any button).
BATTERY
HOLDER
DOOR
Clock (See Fig 2):
1)Press SET button once. The display will advance to TIME mode and the time will be
flashing.
2)Press + or – button until time of day is displayed. Holding either button down will
increase the speed of the setting.
On/Off Time:
1)After the time is set, press SET button once. The display will now show EVENT 1 ON
mode. EVENT 1 ON will be flashing with a blank display. (See Fig. 3)
2)Press + or – to advance to the ON time.
3)Once the ON time is set, press SET button once. The display will now show EVENT 1
OFF. (See Fig 4)
4)Press + or – to advance to the OFF time.
5)Repeat Steps 1-4 for the 2nd ON/OFF settings.
6)When timer events are completed, press SET once. This will put the timer in RUN
mode. The display will show the time of day entered, with the colon flashing.
Note: To clear an event time, push + and – buttons at the same time while in the ON or
OFF mode that you want to clear

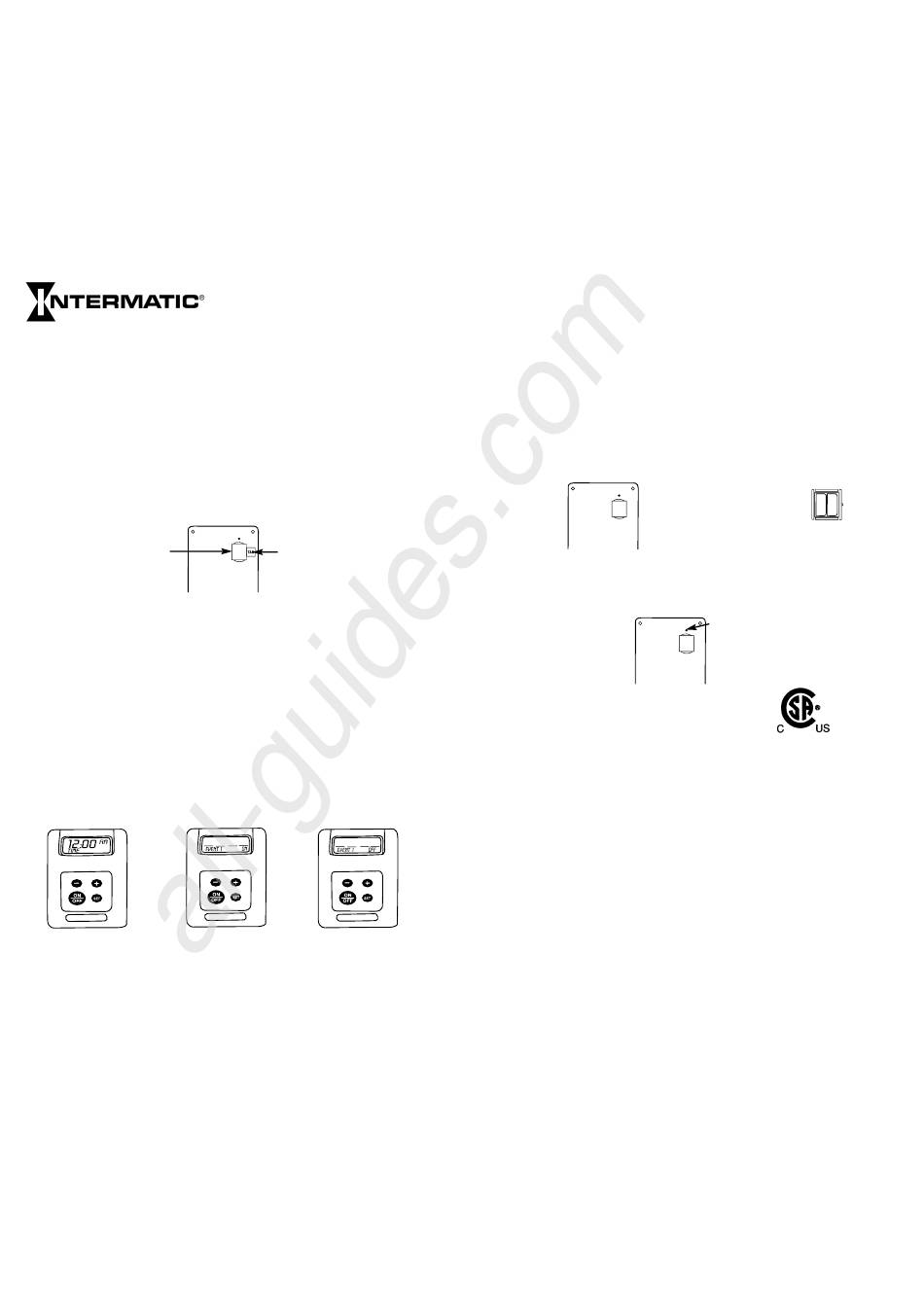

FIG. 2
Lamp Connection:
1)Turn lamp switch to ON position.
2)Plug lamp into the receptacle located on the cord.
3)Plug the Timer Cord into the wall outlet.
All manuals and user guides at all-guides.com
PULL
TAB
FIG. 1
:
:
FIG. 3
TB121C DIGITAL TIMER INSTRUCTIONS
Manual Override:
To override the ON or OFF settings, press ON/OFF button. The override setting will
change at the next timed event.
Battery Replacement (See Fig 5 and 6):
When the batteries are running out, LO will be displayed.
1) Remove the timer from the wall socket.
2) Using a small flat screwdriver, pry the battery holder open. The TB121C uses 2
model L1154, SR44 or LR44 batteries.
3) Remove the old batteries (you have one minute to replace the batteries once the old
batteries are removed without losing the existing programs) and replace the new
batteries with the + facing the terminals.
4) When the batteries are in place, press the battery holder back into its original position.
5) Plug the timer into the wall socket.
Reset (See Fig 7):
To quickly delete the time and event settings, at one time, using the point of a pencil,
press the RESET button found above the battery holder on the rear of the timer.
Ratings:
8.3 Amp Resistive, and Inductive
300 Watt Tungsten, 120VAC, 60Hz
