OPERATION
ADJUSTING THE BLADE PARALLEL TO THE
MITER GAUGE GROOVE (REMOVING HEEL)
See Figures 43 - 45.
WARNING:
The blade must be made parallel to the miter
gauge groove so the wood does not bind result-
ing in kickback. Failure to do so could result in
serious personal injury.
Do not loosen any bolts for this adjustment until you have
checked with a square and made test cuts to be sure adjust-
ments are necessary. Once the bolts are loosened, these
items must be reset.
 Unplug the saw.
 Remove the blade guard, riving knife, and anti-kickback
pawls. Raise the blade by turning the height/bevel adjust-
ing handwheel.
NOTE: For details on removing and reinstalling the riving
knife, see Cleaning the Riving Knife Lock Lever Plates
in the Maintenance section of this manual.
 Mark beside one of the blade teeth at the front of the
blade. Using a ruler, measure the distance from the inside
face of the blade tooth to the left edge of the right miter
gauge groove.
NOTE: For greater accuracy, place the marked blade
tooth on top of the ruler.
 Turn the blade so the marked tooth is at the back.
 Move the ruler to the rear and again measure the distance
from the inside face of the blade tooth to the left edge
of the right miter gauge groove. If the distances are the
same, the blade and the miter gauge groove are parallel.
 Replace blade guard, riving knife, and anti-kickback pawls.
MITER GAUGE GROOVE
32 − English
BLADE
TOOTH
MITER GAUGE
RULER
RULER
Ensure the rip fe
sliding extensio
Assurez-vous qu
lors du glisseme
Asegúrese de qu
(13 pulg.) al des

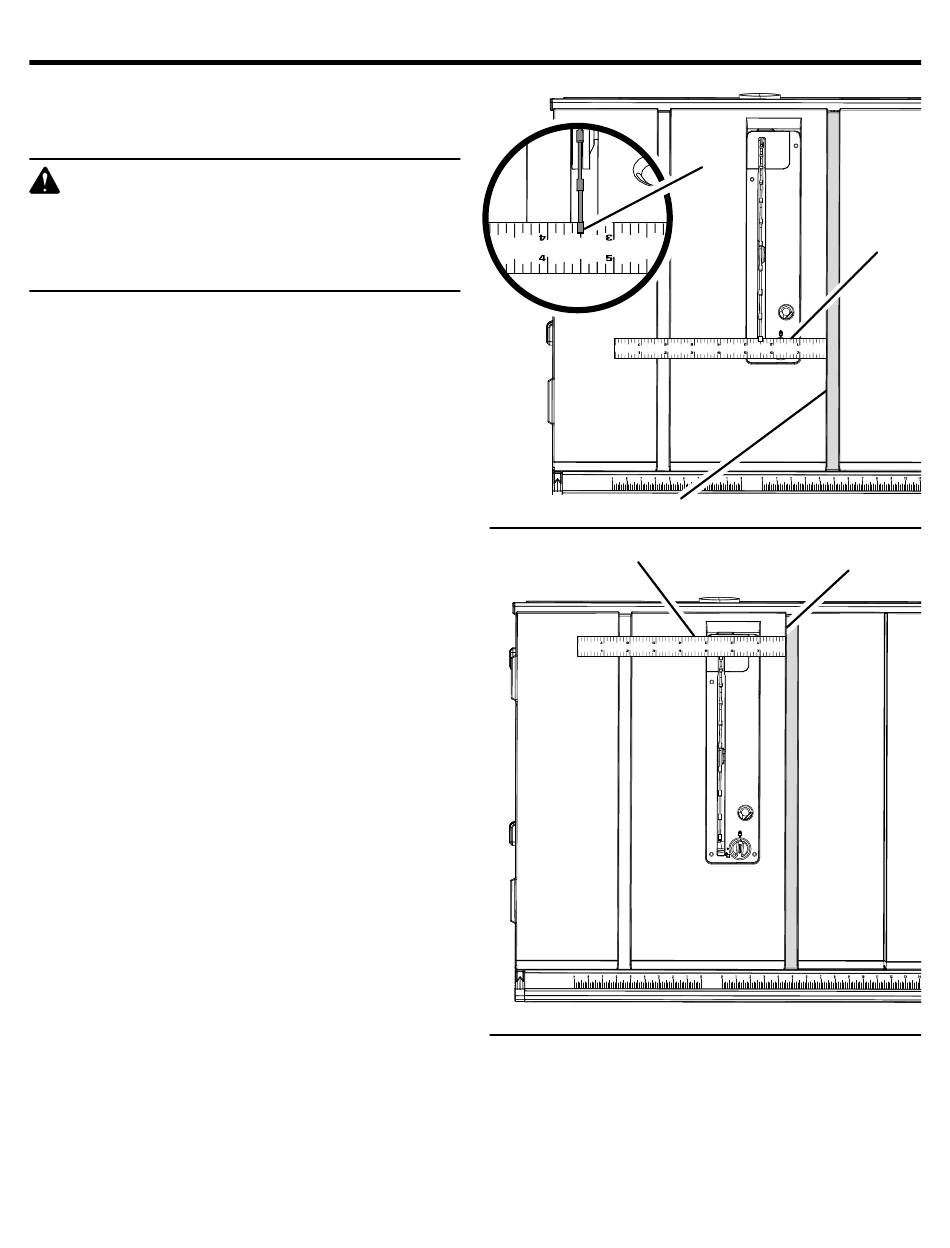

Fig. 43
GROOVE
Ensure the rip fence is mounted at 13 in. when using the
sliding extension table.
Assurez-vous que la clôture est montée à 330,2 mm (13 po)
lors du glissement de la table d'extension.
Asegúrese de que la guía de rip está montada a 330,2 mm
(13 pulg.) al deslizar la mesa de extensión.
Fig. 44
