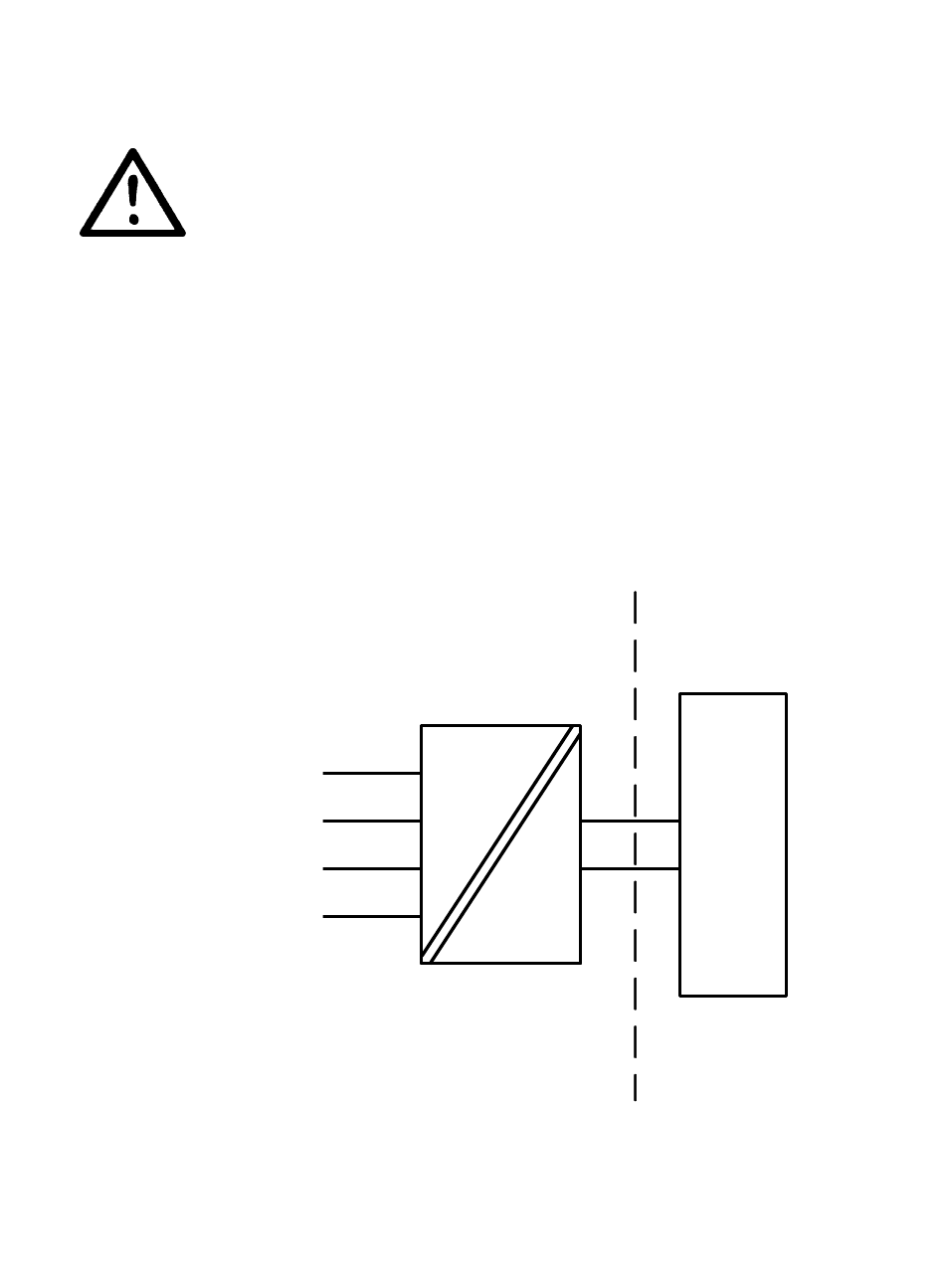

IECEx-installation drawing 5335QI01-V5R0
For safe installation of 5335D or 5337D the following must be
observed. The module shall only be installed by qualified personnel
who are familiar with the national and international laws, directives
and standards that apply to this area. Year of manufacture can be
taken from the first two digits in the serial number.
Certificate
Marking
Standards
Hazardous area
Zone 0, 1, 2, 21, 22
Terminal: 3,4,5,6
Uo: 9.6 VDC
Io: 28 mA
Po: 67 mW
Lo: 35 mH
Co: 3.5 μF
Terminal: 1,2
Ui: 30 VDC Ii: 120 mA
Li: 0 μH Ci: 1.0 nF
IECEx DEK 20.0063X
Ex ia IIC T6...T4 Ga
Ex ia IIIC Db
Ex ia I Ma
IEC 60079-0: 2017, IEC 60079-11: 2011
6
5
4
3
Pi: 0.84 W or Pi: 0.75 W
5337V108-FR
Non Hazardous Area
+
1
-
2
5335D
5337D
Barrier
21
