INSTALLATION

Typical Installations

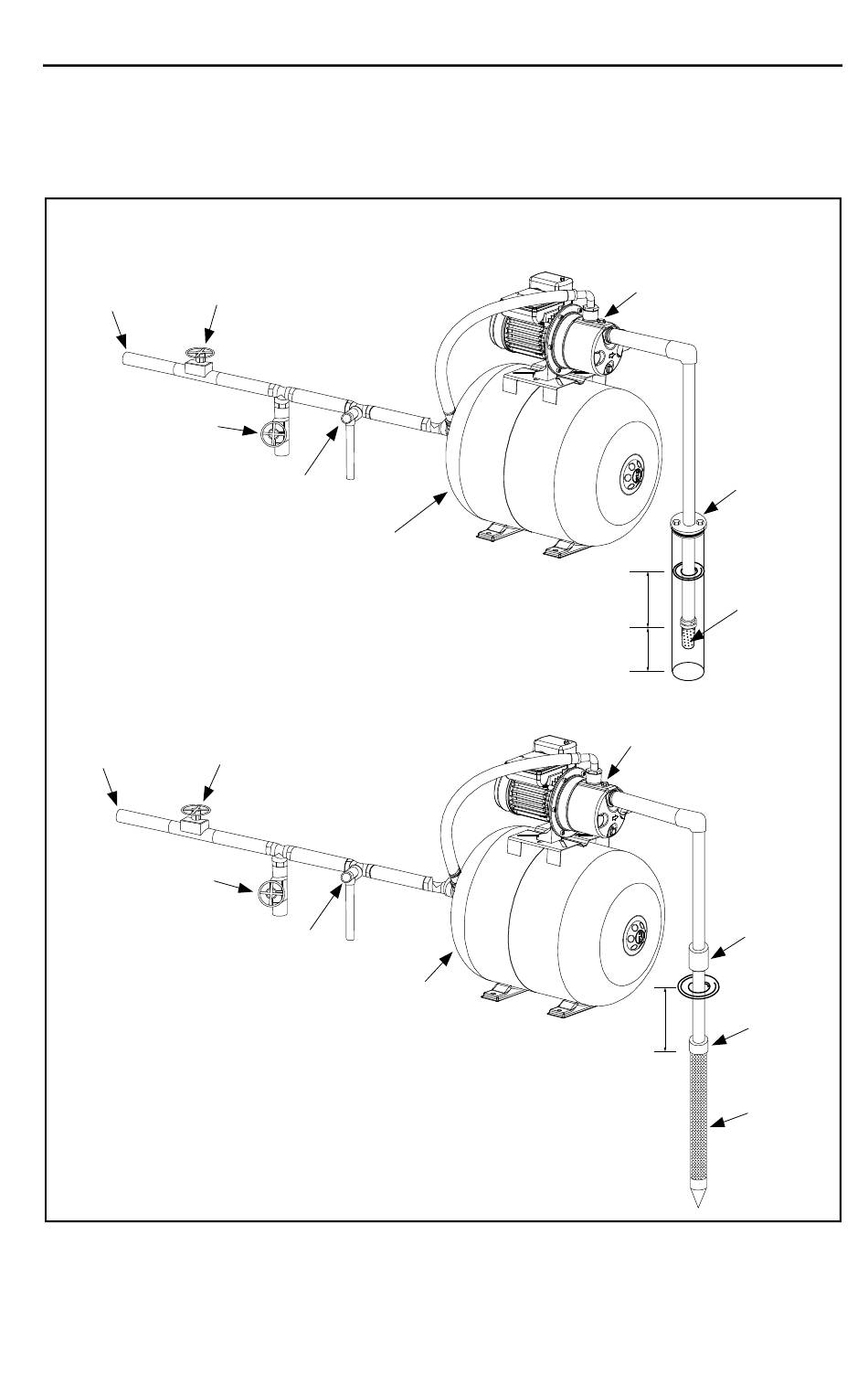

The following drawings illustrate how the system should be arranged in the plumbing system.
Shut-Off Valve
To House
Drain
Pressure Relief Valve
To House
Drain
Pressure Relief Valve
Typical Foot Valve Installation
Tank
Typical Driven Point Installation
Shut-Off Valve
Tank
Well point below water level
INSTALLATION
Typical Installations
Priming Plug
Well Cap
10'
Foot Valve
Min.
5-10'
Priming Plug
Check Valve
Coupling
Well Point
3
