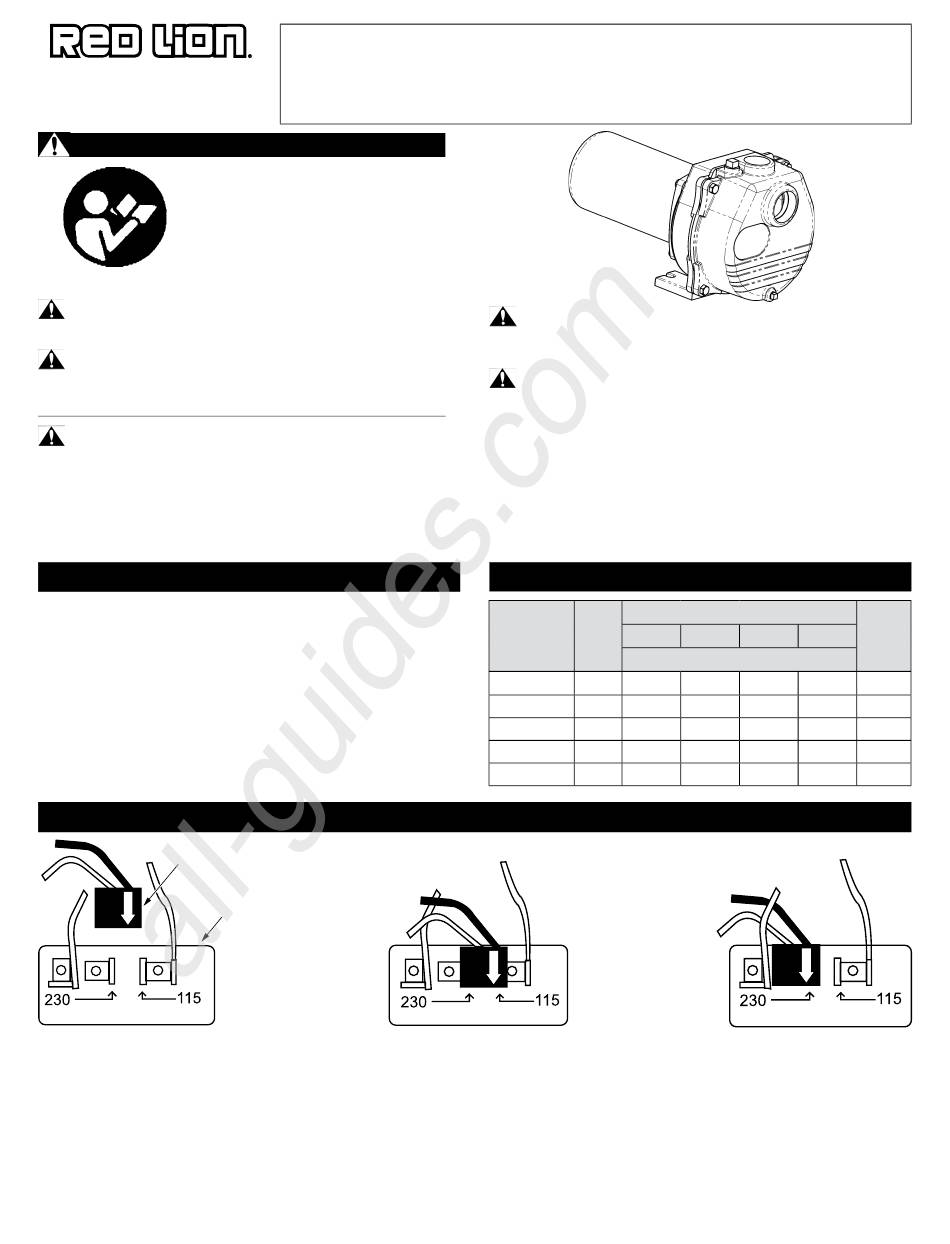

P. O. Box 12010
Oklahoma City, OK 73157-2010
Ph/Tél/Tel: 888.956.0000
Fax/Téléc: 405.228.1561
www.RedLionProducts.com
SAFETY WARNINGS
BEFORE OPERATING OR
INSTALLING THIS PUMP, READ
THIS MANUAL AND FOLLOW ALL
SAFETY RULES AND
OPERATING INSTRUCTIONS.
SAFETY
CAREFULLY READ THESE SAFETY
MESSAGES IN THIS MANUAL AND ON PUMP.
CAUTION
DO NOT OPERATE THIS PUMP DRY!
•
•
Review instructions before operating.
WARNING - ELECTRICAL PRECAUTIONS
All wiring, electrical connections, and system grounding must
comply with the National Electrical Code (NEC) and with any local
codes and ordinances. Employ a licensed electrician. For non-
thermally protected motors use with approved motor control that
matches motor input in full load amperes with overload element(s)
selected or adjusted in accordance with control instructions.
APPLICATION
This pump is suitable for installations where the vertical distance
from the pump to the water level does not exceed 25 ft. In all
installations, friction losses in the suction pipe must be taken into
consideration.
Voltage change device
Figure 1
NOTE: DO NOT move the white lead wires on L1 & L2.
Figure 1 shows the motor switch before the voltage change device
is pressed onto the voltage terminals.
Figure 2 shows the motor switch set for 115V. The voltage change
device is pressed onto both terminals, with the arrow on the
All manuals and user guides at all-guides.com
VOLTAGE WIRING INSTRUCTIONS - UP TO 1-1/2 HP
Terminal board

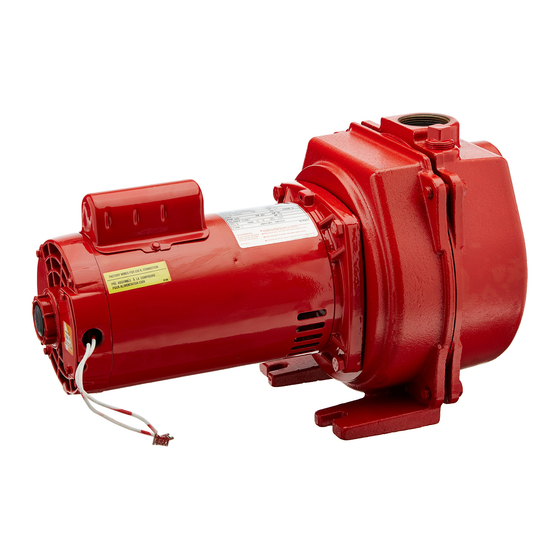

RLSP
LAWN AND TURF PUMPS
ELECTRIC MOTOR DRIVEN
FOR DUAL VOLTAGE MOTORS:
Voltage change instructions are located on motor label or on wiring
access cover.
WARNING - RISK OF ELECTRICAL SHOCK
•
Have an electrician provide electrical power to the motor.
•
Motor must be grounded and terminal cover in place to
reduce electrical shock hazard.
•
Keep motor operating area as dry as possible.
•
A ground fault interrupter (GFI) protected circuit is
recommended for use with any electrical device operating
near water.
•
Always disconnect power before servicing.
•
Not investigated for use in swimming pool areas.
Model
HP
RLSP-75
3/4
RLSP-100
1
RLSP-150
1-1/2
RLSP-200
2
RLSP-250
2-1/2
Figure 2
voltage change device pointing to the 115V arrow on the terminal
board.
Figure 3 shows the motor switch set for 230V. The voltage change
device is pressed onto only one terminal, with the arrow on the volt-
age change device pointing to the 230V arrow on the terminal board.
1
PERFORMANCE
Discharge Pressure in PSI
10
20
30
Capacities in U.S. GPM
58
39
29
63
46
38
71
53
44
89
69
60
97
90
74
Figure 3
40
Max.
PSI
7
43
7
45
15
44
36
47
47
48
