9 Using Sample Data Memory

Performing a Data Logger sampling operation from the E-CON3 Mode causes sampled
results to be stored in the "current data area" of E-CON3 memory. Separate data is saved
for each channel, and the data for a particular channel in the current data area is called that
channel's "current data".
Any time you perform a sampling operation, the current data of the channel(s) you use is
replaced by the newly sampled data. If you want to save a set of current data and keep it
from being replaced by a new sampling operation, save the data in sample data memory
under a different file name.
k Managing Sample Data Files
To save current sample data to a file
u
1. On the E-CON3 main menu (page 1-1), press 5(GRPH).
• This displays the Graph Mode screen.
• For details about the Graph Mode screen, see "10 Using the Graph Analysis Tools to
Graph Data".
2. Press 2(DATA).
• This displays the Sampling Data List screen.
9-1
Using Sample Data Memory
List of current data files
"cd" stands for "current data". The
text on the right side of the colon
indicates the channel name.

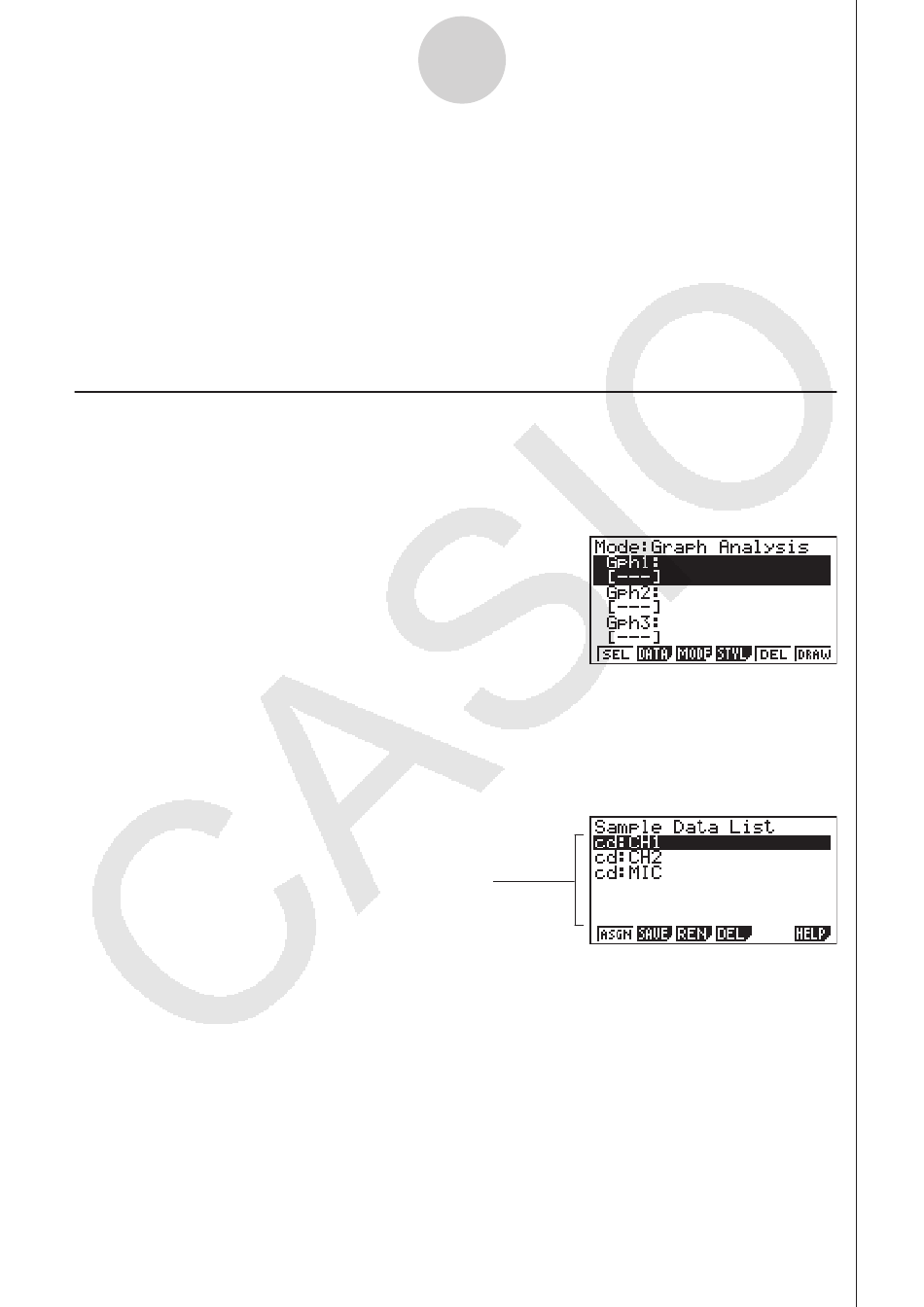

Graph Mode Screen
Sampling Data List Screen
