ASSEMBLY INSTRUCTIONS

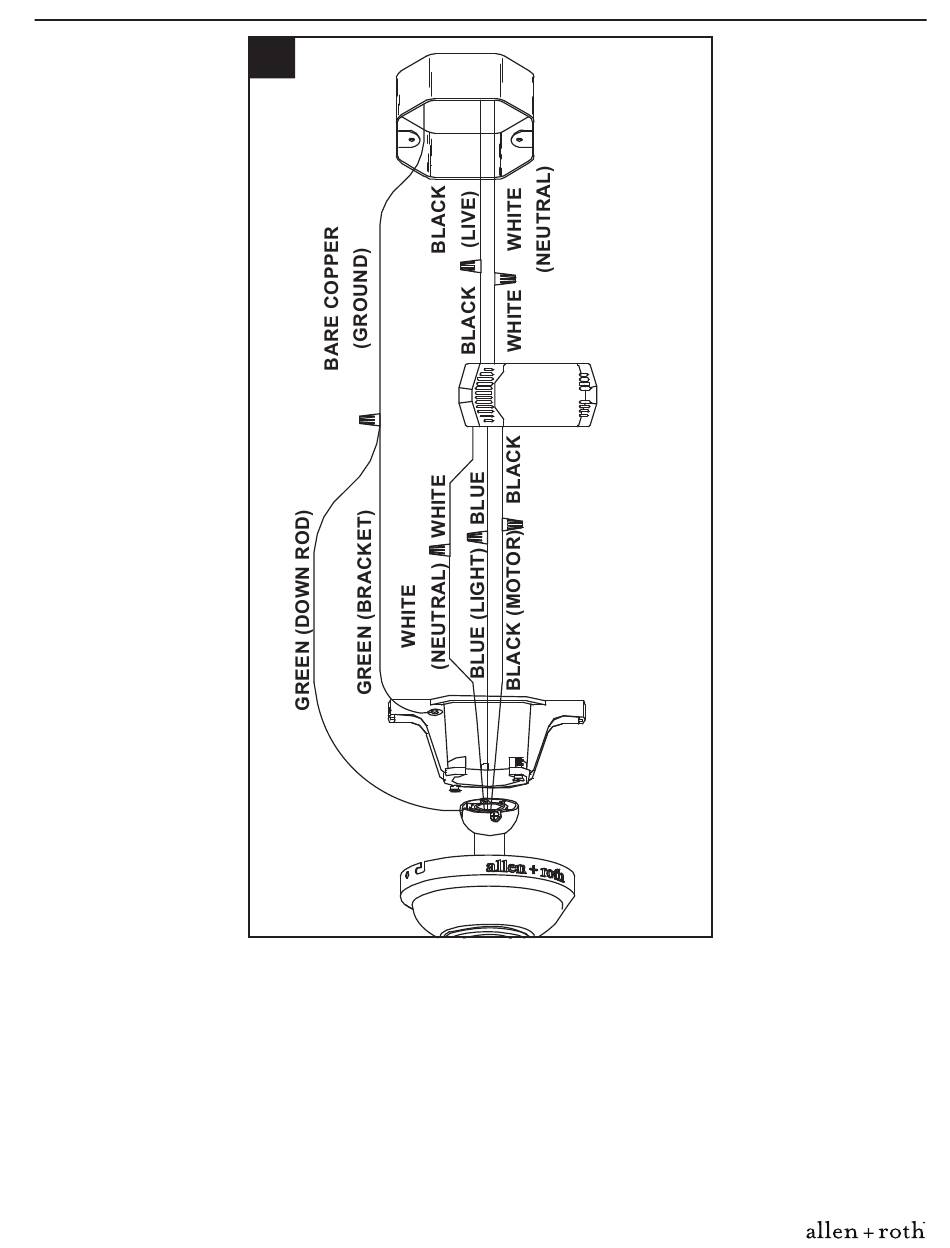

7. Wiring the fan per wiring diagram and securely connect wires with wire connectors: Wrap
electrical tape (not included) around each wire connector and make sure no bare wire or wire
strands are visible after making connections.
• Connect WHITE wire from the fan to WHITE wire marked TO MOTOR N from the receiver.
• Connect BLUE wire from the fan to BLUE wire marked FOR LIGHT from the receiver.
• Connect BLACK wire from the fan to BLACK wire marked TO MOTOR L from the receiver.
• Connect BLACK wire from the outlet box to BLACK wire marked AC IN L from the receiver.
• Connect WHITE wire from the outlet box to WHITE wire marked AC IN N from the receiver.
• Connect GROUND (GREEN) wires from hanger bracket and downrod ball, to GROUND (GREEN
or BARE COPPER) from house.
