ASSEMBLY INSTRUCTIONS

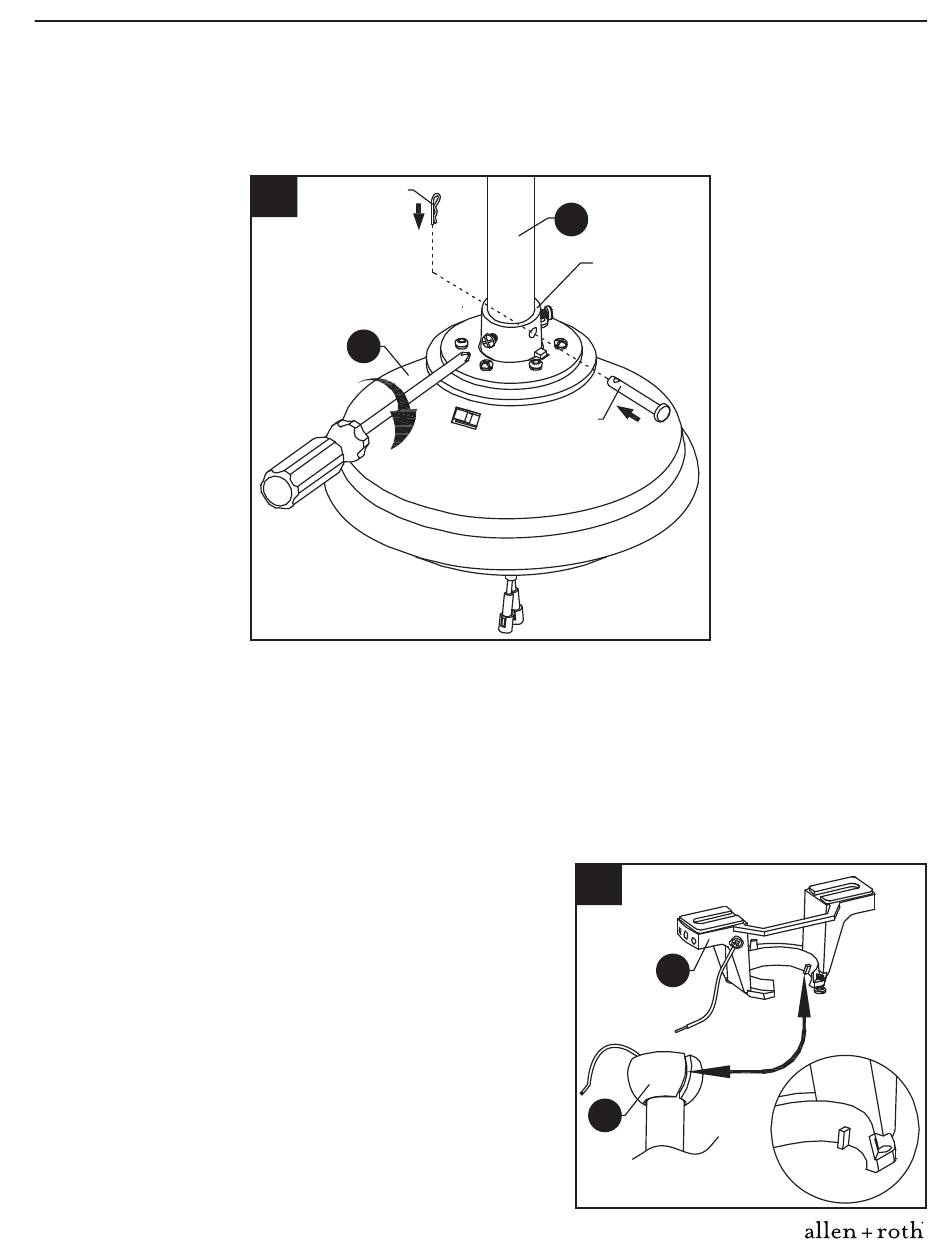

4. Pass the clevis pin through the down rod (B) and coupling found on the motor assembly (F) then
secure with the hair pin. Tighten set screws found on the coupling on the motor assembly (F).
Hair Pin
4
B
Coupling
F
Clevis Pin
5. Carefully lift the fan and seat the downrod (B)/hanger
5
ball assembly on the hanger bracket (A). Be sure the
groove in the ball is lined up with the tab on the
hanger bracket (A).
A
B
