4.3 « TARGET DISTANCE / MEASUREMENT FIELD DIAMETER »
RATIO

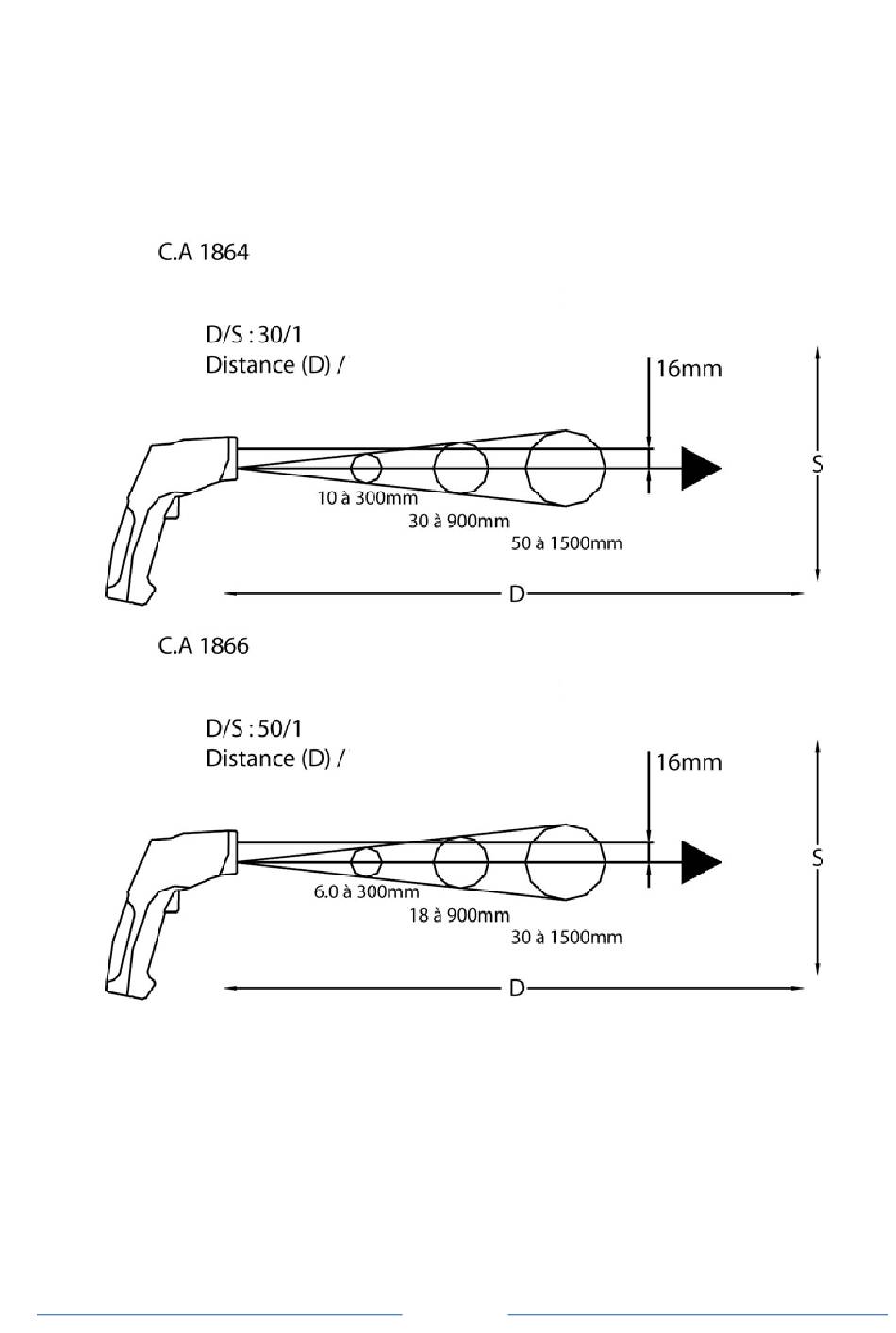

This ratio, also known as the field of vision, indicates the diameter of the probes'
measurement field at a given distance from the target (see figure below).
In the case of a measurement point of small dimensions, it is important to bring
the probe to a short enough distance from the target, so as to avoid including other
points into the field of measurement.
Spot diameter (S)
Spot diameter (S)
Page 23
Laser beam
Sensor beam
Laser beam
Sensor beam
