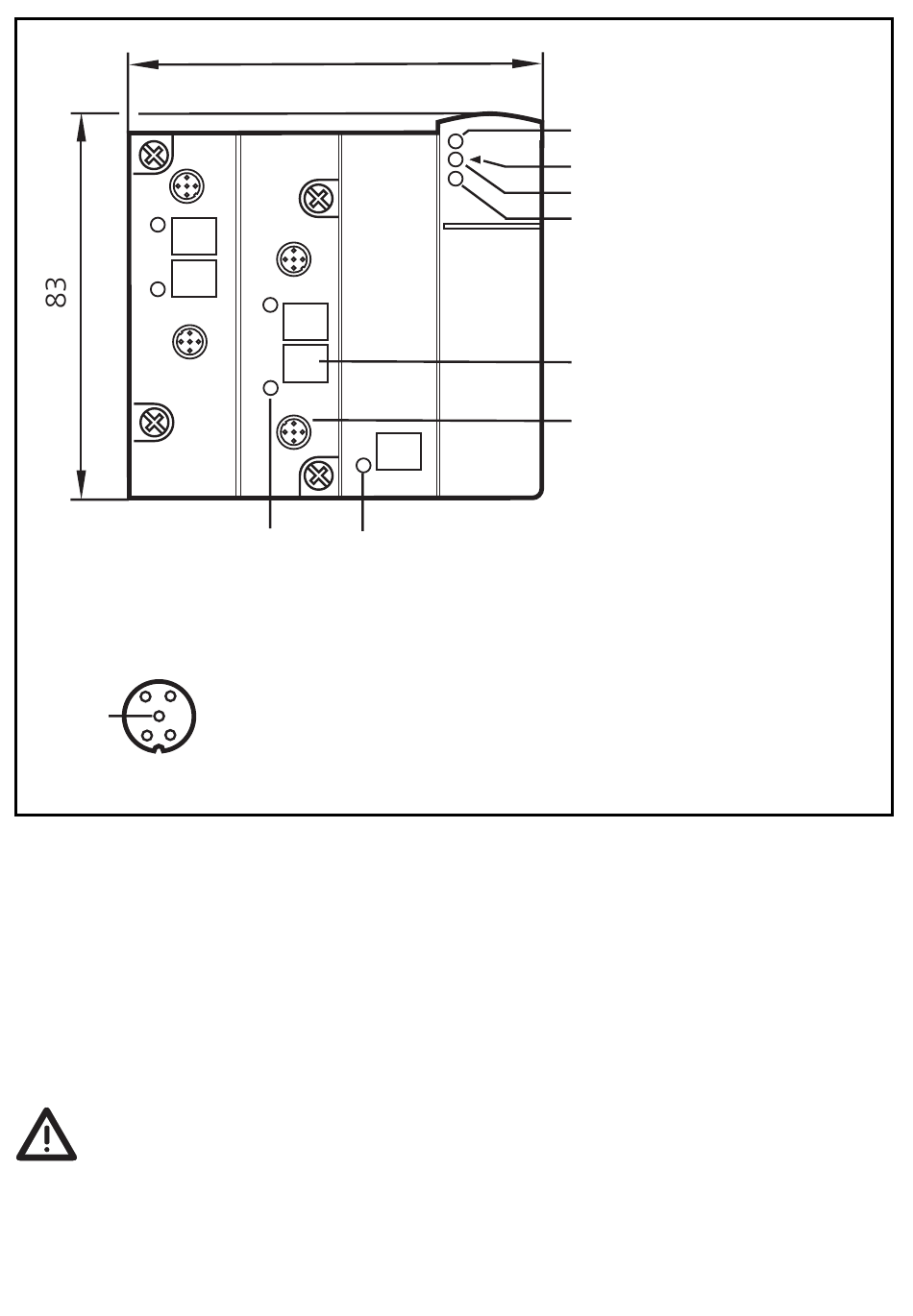

4x LED yellow
analogue outputs
3 4
5
2 1
Electrical connection
The analogue module is connected to the AS-Interface via the stan-
dardised EMS (supply from AS-i) or the E-EMS (supply from an ext. 24V
PELV voltage source).
If the supply is to be from an external 24V source, a FC-E lower part
(art. no. AC5003 or AC5011) must be used.
The supply is automatically changed when the external 24V vol-
tage is supplied.
8
PAGE
90
LED green AUX
Pin 1: AO+ analogue output
Pin 2: n.c. (not connected)
Pin 3: AO- analogue output 0V
Pin 4: n.c. (not connected)
Pin 5: functional earth
LED infrared reciever
fixture infrared adapter
LED red FAULT
LED green PWR
label
M12 socket
