ROXXY Navy Control 700
High-performance speed controller with forward/stop/reverse functions and
easy programming. Suitable for 600- to 700-size motors, Pro, Sports and
Ultra motors or multi-motor models with 400- to 600-size motors.
Specifi cation
Controller type Forward/stop/reverse
Drive battery
6-18 NC/NiMH, 6-24 V lead-acid
Motor current 40 A
Pulse frequency 1 kHz
Dimensions 75 x 67 x 39 mm
Weight 231 g
Connector system Battery: direct
Motor: direct
• The term „Motor current" means the average continuous current at „full throttle
forward", which flows for the duration of one battery charge (2000 mAh).
• The actual current varies according to the model and the individual operator's
driving style. The controller can tolerate brief current peaks above this value
without problem.
Special features
FET POWER MOS fi eld effect transistors (FETs)
OPTO
Galvanic separation of receiver power circuit and motor
power circuit, to eliminate receiver interference caused by
the electric motor.
POR Power On Reset – prevents the motor starting when the
battery is connected.
TP Thermal overload protection
PCO Low voltage shut-off
RXF RX fi lter – controller shuts down if transmitter signal fails
or suffers interference.
LED Display of operating and programming functions
WP Splashproof construction
• Ultra-fine, super-smooth control characteristics.
Connecting, programming and using the controller
1. Solder the blue/white power leads to the motor terminals.
2. Before you carry out the following procedure it is absolutely essential to
ensure that the motor (and any propeller mounted on it) is free to spin
without causing damage or injury.
3. Locate the receiver lead attached to the speed controller and connect it
to the receiver throttle channel socket.
4. Switch on the radio control system transmitter.
5. Switch on the receiving system. Do not move the throttle stick.
6. Connect the drive battery.
7. Hold the button pressed in for about 2 seconds. When you release the
button, the LED will fl ash once.
8. Move the throttle stick to the FULL THROTTLE FORWARD position; press
the button once briefl y to program the FULL THROTTLE FORWARD
position. The LED will fl ash twice with a one-second interval.
9. Move the throttle stick to the NEUTRAL position; press the button once
briefl y to program the NEUTRAL position. The LED will fl ash three
times at one-second intervals.
10. Move the throttle stick to the FULL THROTTLE REVERSE position; press
the button once briefl y to program the FULL THROTTLE REVERSE
position.
• This completes the programming procedure. If you now move the throttle
stick forward through the FORWARD range, motor speed should rise pro-
portionally. At the same time the LED should glow, its intensity increasing
as speed rises. At the STOP position of the stick the LED is off.
• When you move the throttle stick to the REVERSE range the LED will fl ash
at intervals of 2 seconds.
ROXXY Navy Control 700 – Operating instructions
Fault fi nding
• If it proves impossible to program the controller as described above,
repeat steps 4 to 10 using slightly different stick positions.
• If the motor spins in the wrong direction, i.e. the model moves backwards
when you advance the throttle, swap over the power leads at the motor
terminals.
The speed controller in use
The controller features a range of protective functions, and in everyday ope-
rations the unit may shut the motor down for a variety of reasons. You should
be aware of the possible causes:
• The speed controller will shut off the motor (brake active) if it overheats
(e.g. if the motors are too powerful, are run constantly at part-load, or if
cooling is inadequate), if battery voltage falls below a certain level, or if
the transmitter signal fails or suffers interference. The controller can be
re-activated by moving it to the STOP range and then forward again, but
only after you have removed the cause of the shut-off.
• If the controller is in the „OFF" state as described above, the LED fl ashes
at two-second intervals.

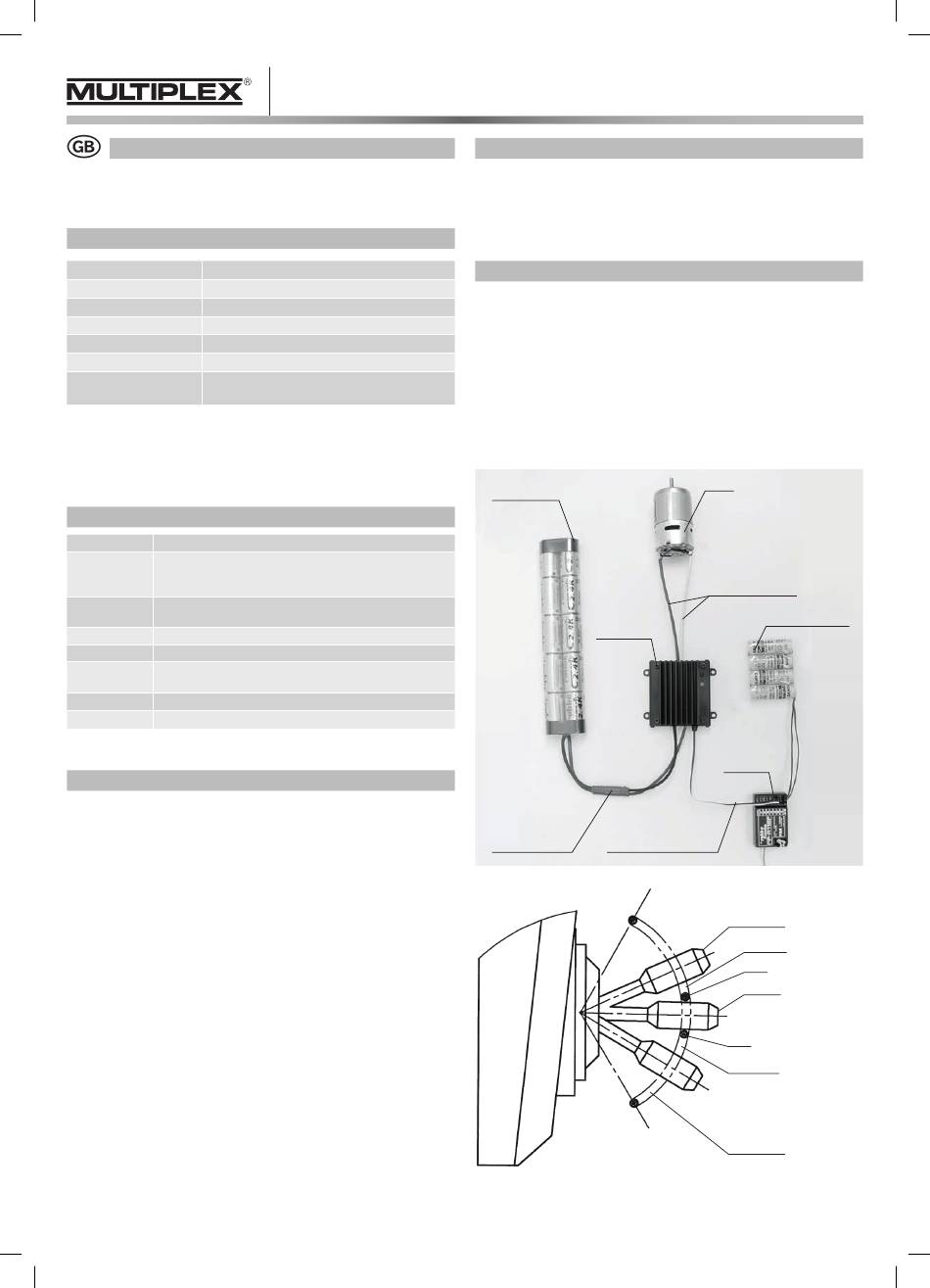

Drive battery
Motor
controller
Battery
connection Receiver connection
# 31 8616
Motor
Motor connection
Receiver battery
Receiver
Full throttle
Forward
Stop
Neutral
Stop
Backward
Full throttle
