Stand
Set the column (11) in place on the base and secure it using the "L" screw with
washer (10) while also engaging the counterweight.
Make sure column and base and counterweight are firmly coupled.
Fan
1. Unscrew the ring nuts: fan fixing (13) and rear grid (15) on the motor
shaft.
2. Insert the rear grille (16) in the motor housing, so that the handle (6)
appears at the top (as figure), and position it so that the pins fit in their
corresponding holes and lock it with the ring nut provided (15).
3. Insert the fan (14) on the motor shaft (1), so that the slot matches the
spline. Lock using the ring nut (13), (turning it counter clockwise to
tighten).
4. Couple the front grille (12) to the rear one (16) locking it with the closing hooks. For
safety reasons, you must make sure that it is attached by using the screws and nuts

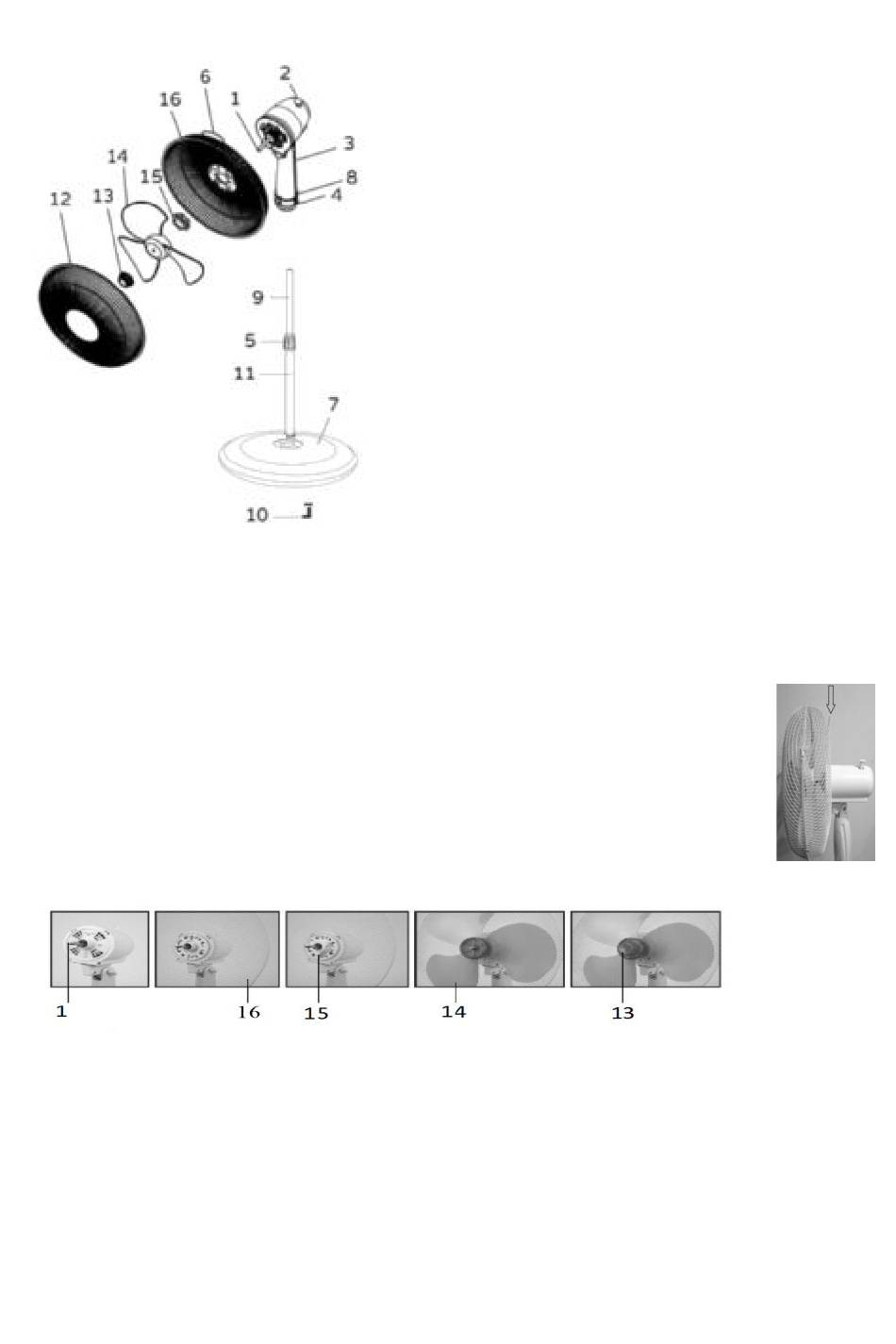

1) Motor shaft
2) Oscillation button
3) Body
4) Body attachment screw
5) Pole attachment ring nut
6) Handle
7) Base with counterweight
8) Selector
9) Adjustable pole
10) "L" screw
11) Fixed pole
12) Front grille
13) Fan attachment ring nut
14) Fan
15) Grille attachment ring nut
16) Rear grille
