5 INGEREV charging point

5.1 INGEREV FUSION

5.1.1 Description

In order to establish communication between the external wattmeter and the INGEREV FUSION
charging points, you need to add an RS485 board, which connects to the control board located on the
charging point door.
This RS485 board is included in the SMART DLM kit for INGEREV FUSION.

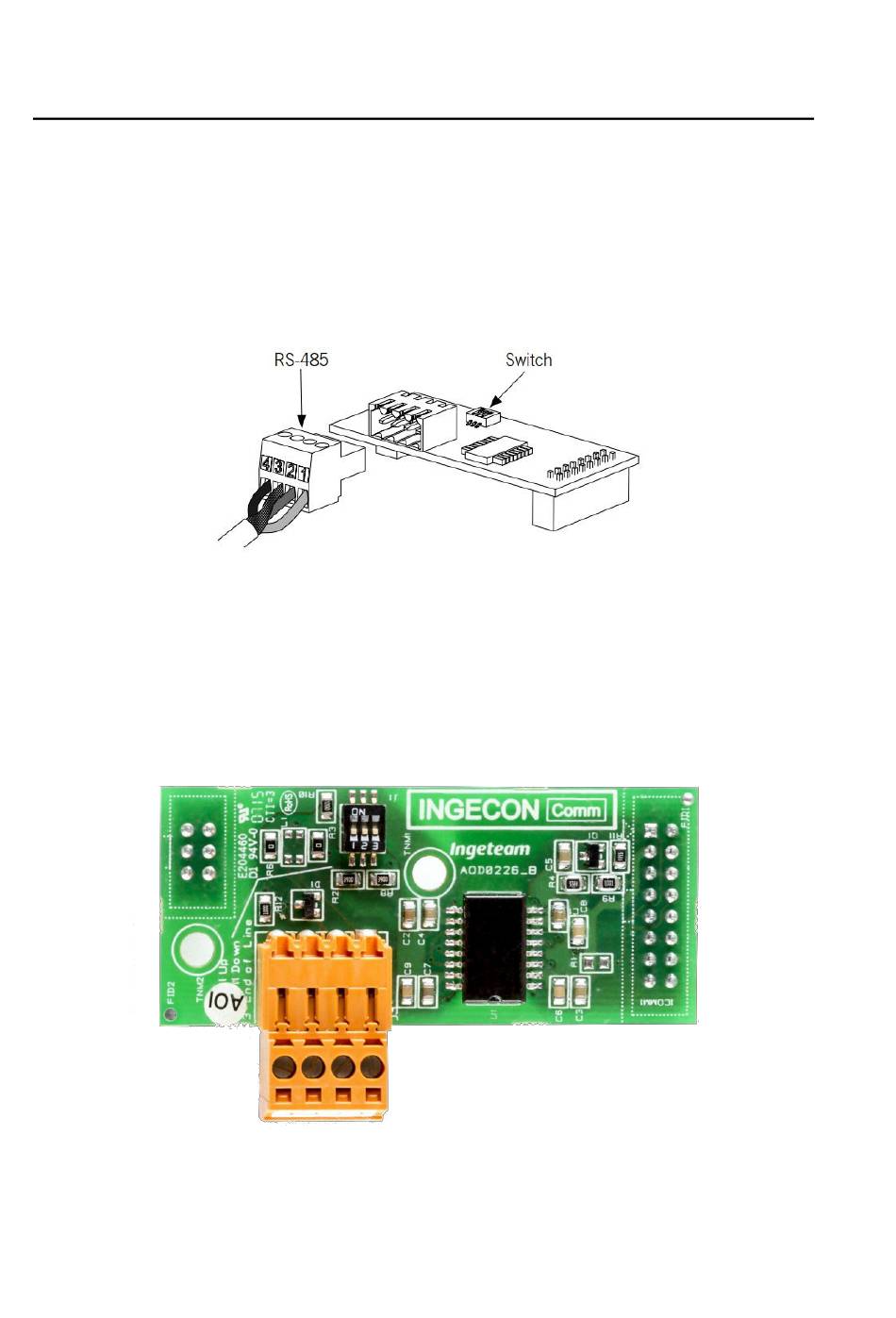

The main elements of the RS485 board are:
- Connector for RS485 wiring
- Micro-switch
- Connectors to insert in the control board.
16
RS485 Board.
