3
INSTALLATION

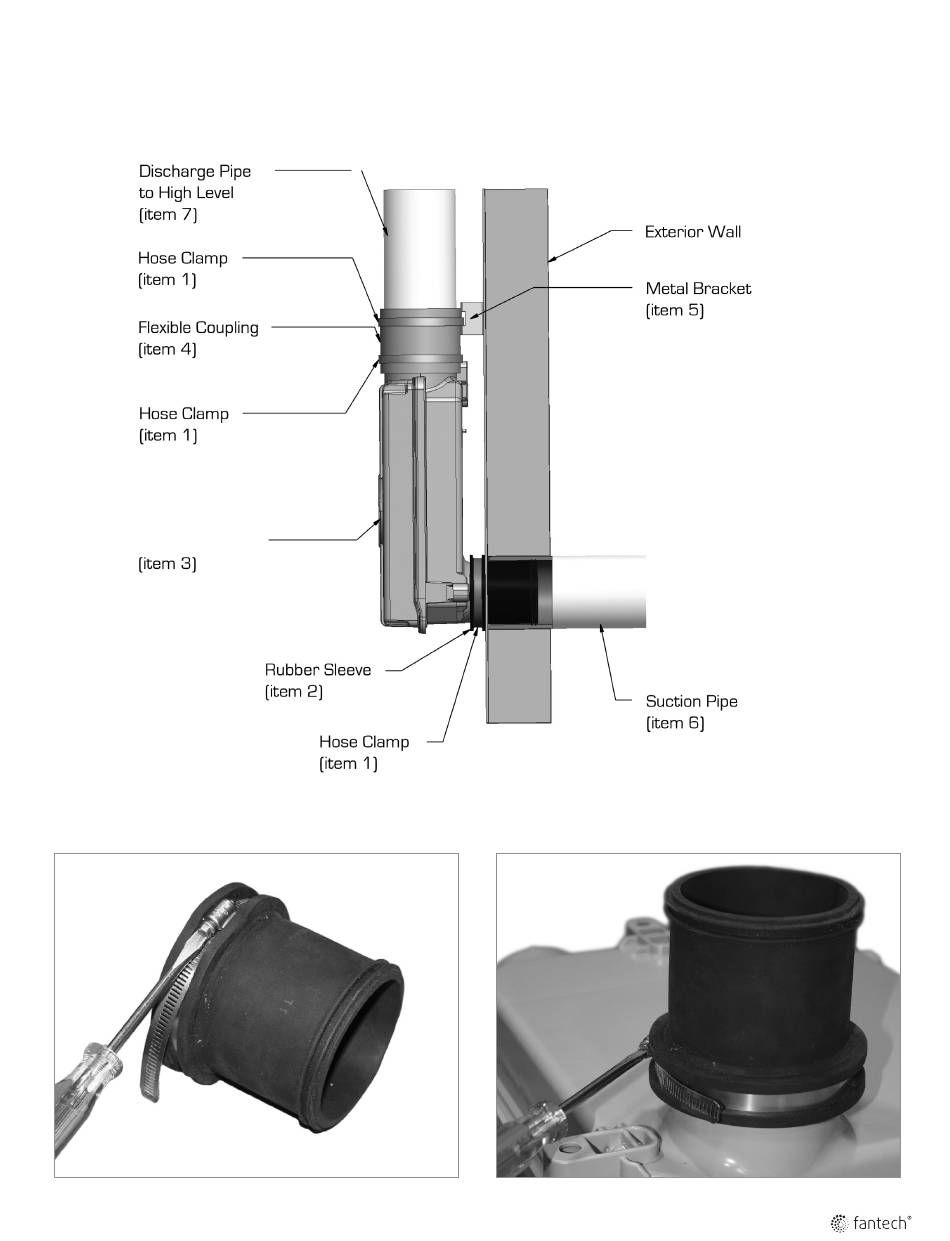

The Rn2SL is designed for use with 4" schedule 20 or schedule 40 PVC pipe. Prior to installation, the suction pipe should be terminated at the exte-
rior wall. The suction pipe should be installed with a slight incline to drain water away from the fan. The Rn2SL has an integrated condensate bypass. A
secondary condensate bypass is not required.
Rn2SL fan
1. Loosely place a Hose Clamp (item 1 provided) over Rubber Sleeve
2. Insert Rubber Sleeve over Rn2SL (item 3 provided) intake and se-
(item 2 provided).
curely mount it by tightening the Hose Clamp Screw clockwise.
