RCF RDNET CONTROL 2 Manuel De L'utilisateur page 8

7

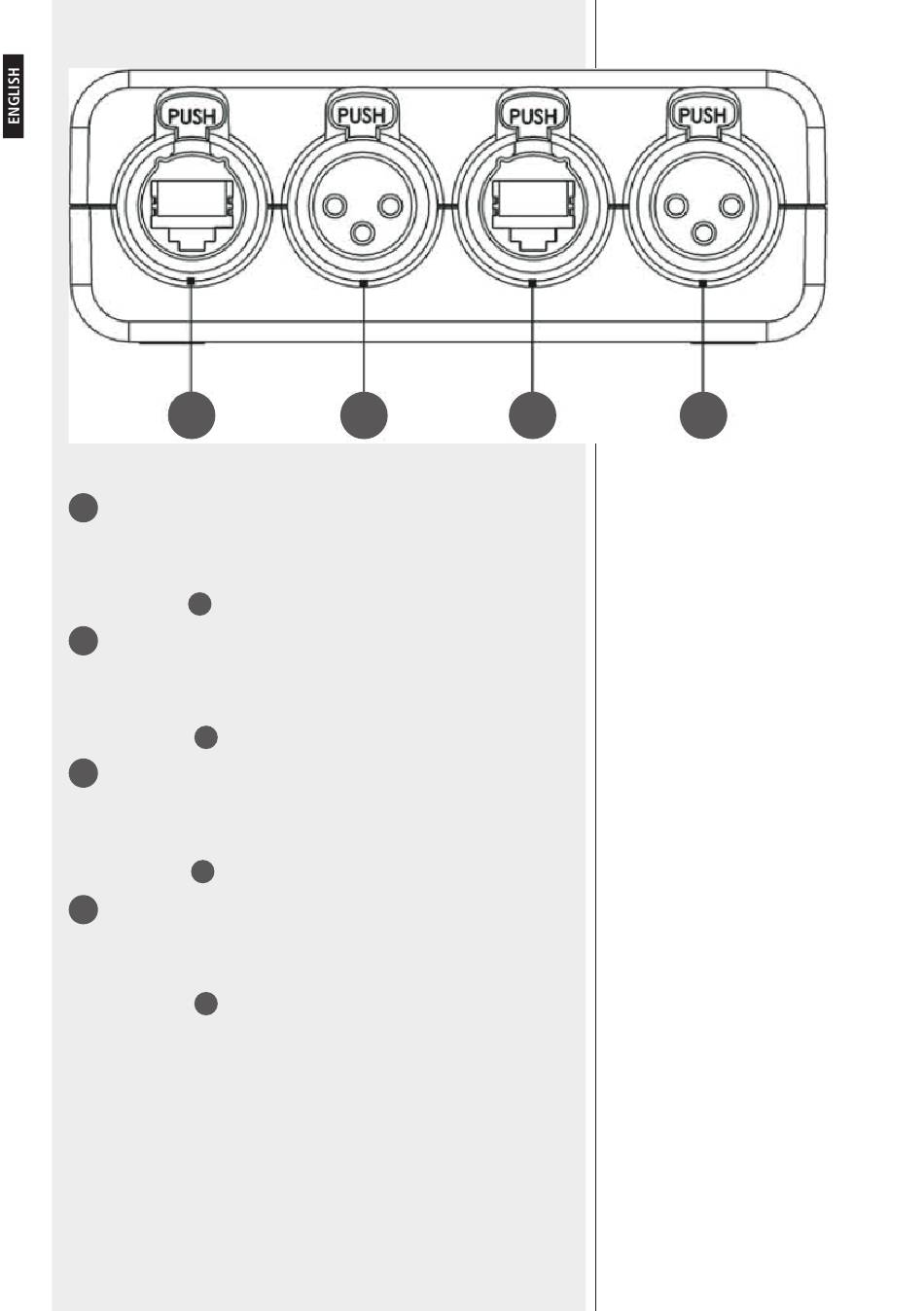

RJ45 CONNECTOR CH1
7
Connector for Subnet 1 RDNET connection by means of CATS cable.
For connections refer to "CHANNEL CONNECTIONS" paragraph.
If this connector is used DO NOT CONNECT the connector CH1
XLR socket
8
XLR CONNECTOR CH1
8
Connector for Subnet 1 RDNET connection.
For connections refer to "CHANNEL CONNECTIONS" paragraph.
If this connector is used DO NOT CONNECT the connector CH1
RJ45 socket
7
9 RJ45 CONNECTOR CH2
Connector for Subnet 2 RDNET connection by means of CATS cable.
For connections refer to "CHANNELCONNECTION" paragraph.
lf this connector is used DO NOT CONNECT the connector CH2
XLR socket
10
XLR CONNECTOR CH2
10
Connector for Subnet 2 RDNET connection. For connections refer
to "CHANNELCONNECTION" paragraph.
If this connector is used DO NOT CONNECT the connector CH2
RJ45 socket
9
8
8
.
.
.
.
9 10
