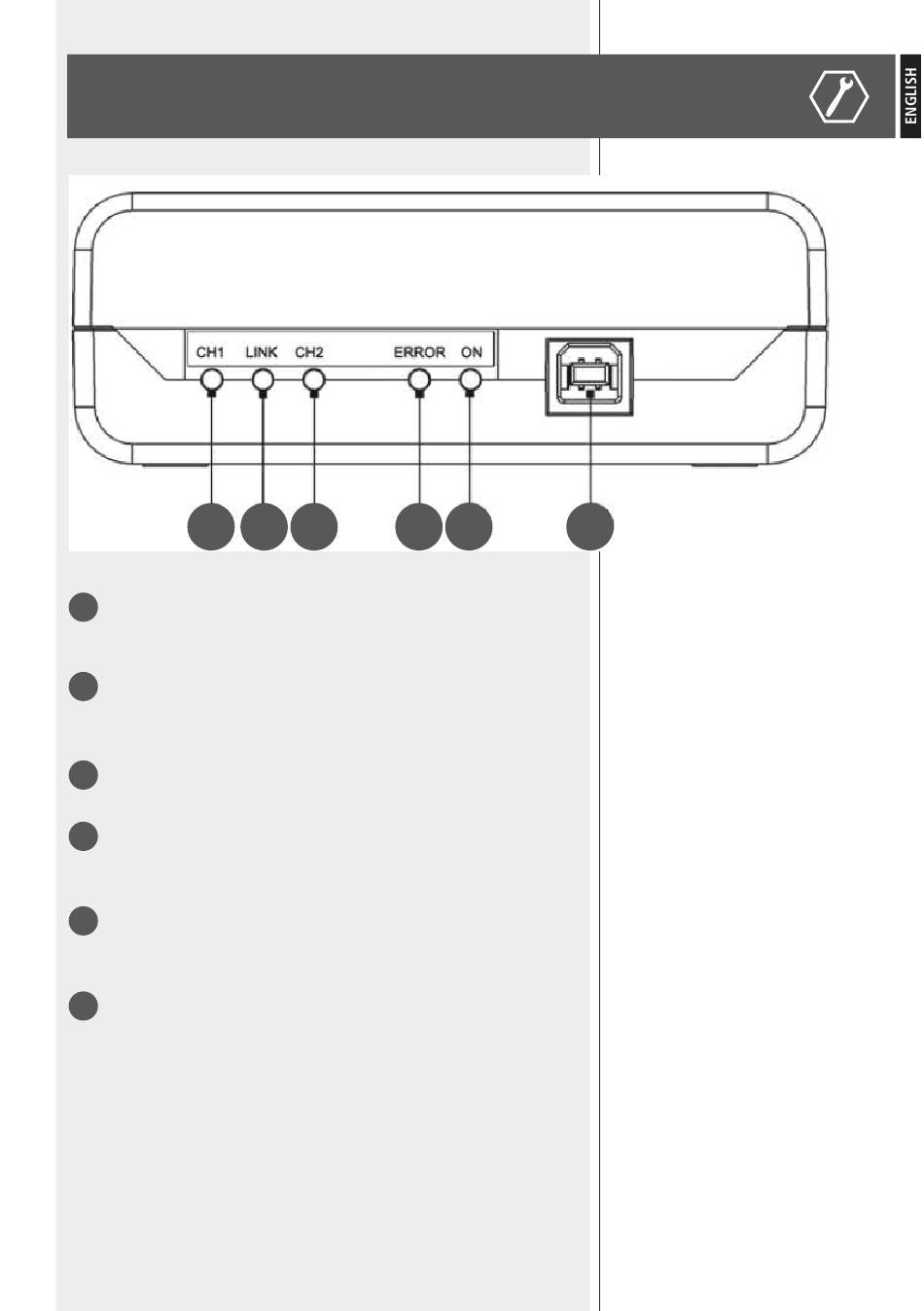

CH1 INDICATOR LIGHT
1
This indicator light, green LED,flashes to indicate data transmission
or reception in the subnet 1.
2
CH2 INDICATOR LIGHT
This indicator light, green LED, flashes to indicate data transmission
or reception in the subnet 2.
LINK INDICATOR LIGHT
3
This indicator light, green LED,will be used for future applications.
ERROR INDICATOR LIGHT
4
This indicator light, red LED, lights up to indicate errors during data
transmission or reception.
5
ON INDICATOR LIGHT
This indicator light, green LED, lights up to indicate that device is
on and powered by USB.
6
USB CONNECTOR
USB type B connector, for computer link, by means of cable
provided. The RDNET CONTROL 2 is powered by USB connector.
3
2
4
CONTROLS
AND FUNCTIONS
5
6
7
