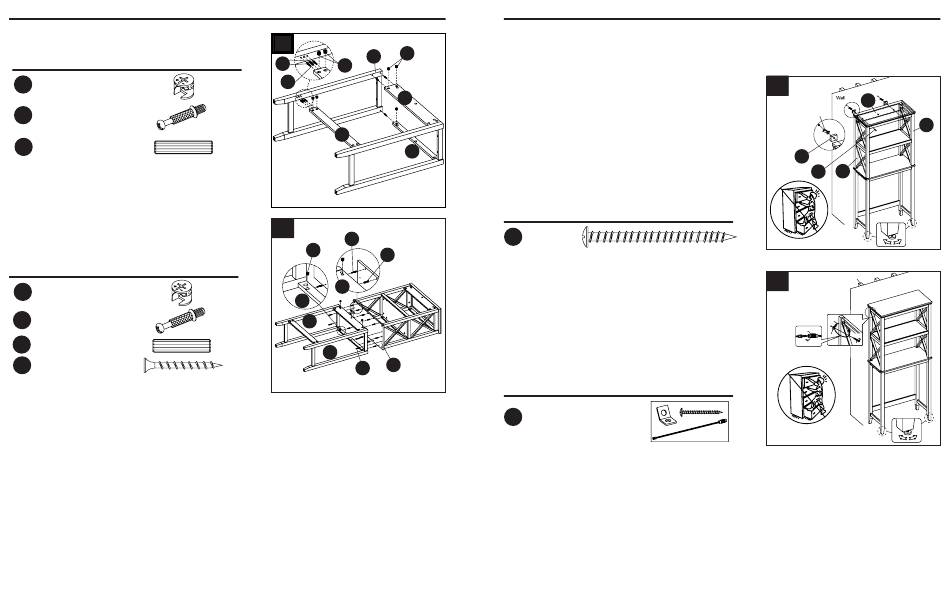

ASSEMBLY INSTRUCTIONS
7. Repeat the same procedure to attach right lower
side frame (E) at the opposite end.
Hardware Used
AA
Cam lock
BB
Cam bolt
Wood dowel
CC
8. Glue wood dowels (CC) and insert cam bolts (BB) into
bottom shelf (G). Attach assembled bottom section
to bottom shelf (G). Secure them into place with cam
locks (AA) and M4 x 38 mm screws (EE).
Hardware Used
AA
Cam lock
BB
Cam bolt
Wood dowel
CC
EE
M4 x 38 mm Screw
7
AA
E
BB
AA
CC
x 5
J
x 5
L
x 1
8
BB
AA
CC
J
x 6
H
D
x 6
x 6
C
x 4
G
EE
7
OPERATING INSTRUCTIONS
For stability, it is recommended you attach the unit to the wall. For instructions on how to attach the
unit directly to the mounting surface, refer to step 1. For instructions on how to attach the tipping
restraint hardware (HH), refer to step 2.
1. Adjust floor levelers to level the unit against the wall
where desired. Using back upper stretcher (I) as a
template, mark two mounting hole locations on the
wall. Drill two pilot holes into the wall where previously
marked. Make sure that the drilled holes can fit for
the wall anchors (sold separately) properly. Press the
anchors into the holes and gently tap with a hammer
H
until flush in the holes. If the mounting hole coincides
with a wooden stud, there is no need wall anchor.
Align back upper stretcher (I) and back crossers (M)
over the anchors and insert two M5 x 65 mm screws
(FF). Tighten securely with Phillips screwdriver.
Hardware Used
M5 x 65 mm
FF
Screw
2. Locate and mark wooden studs where the unit is to
be installed. Drill a 1/8" pilot hole on the wooden stud
behind one upper side frame approximately 3" below
the height of unit top. Attach bracket (a) securely with
screw (c) into the pilot hole on the wall. Adjust floor
levelers to level the unit against the wall where desired
and put the male end of the steel cable (b) through
the bracket (a) and round the back post of upper side
frame. Securely connect both ends together by turning
the female connector clockwise.
Hardware Used
HH
Tipping restraint hardware
1
I
Masonry/drywall
anchor not included
M
B
FF
x 2
Wooden stud
2
b
a
c
b
x 1
8
D
