Extraoral X-ray
US
The procedure is described using a PSP
Plus for Pano as an example.
Required accessories:
– PSP
– Plate protector matching the size of the phos-
phor storage plate
– X-ray cassette without intensifying screen, (see
"3.3 Optional items" or "8.4 Prepare the X-ray
cassette for an extraoral phosphor storage
plate")
Preparing the X-ray
ü The PSP has been cleaned.
ü The PSP is not damaged.
If using it for the first time or if it has been
❯
stored for over a week: erase the PSP (see
"11.5 Erasing the imaging plate").

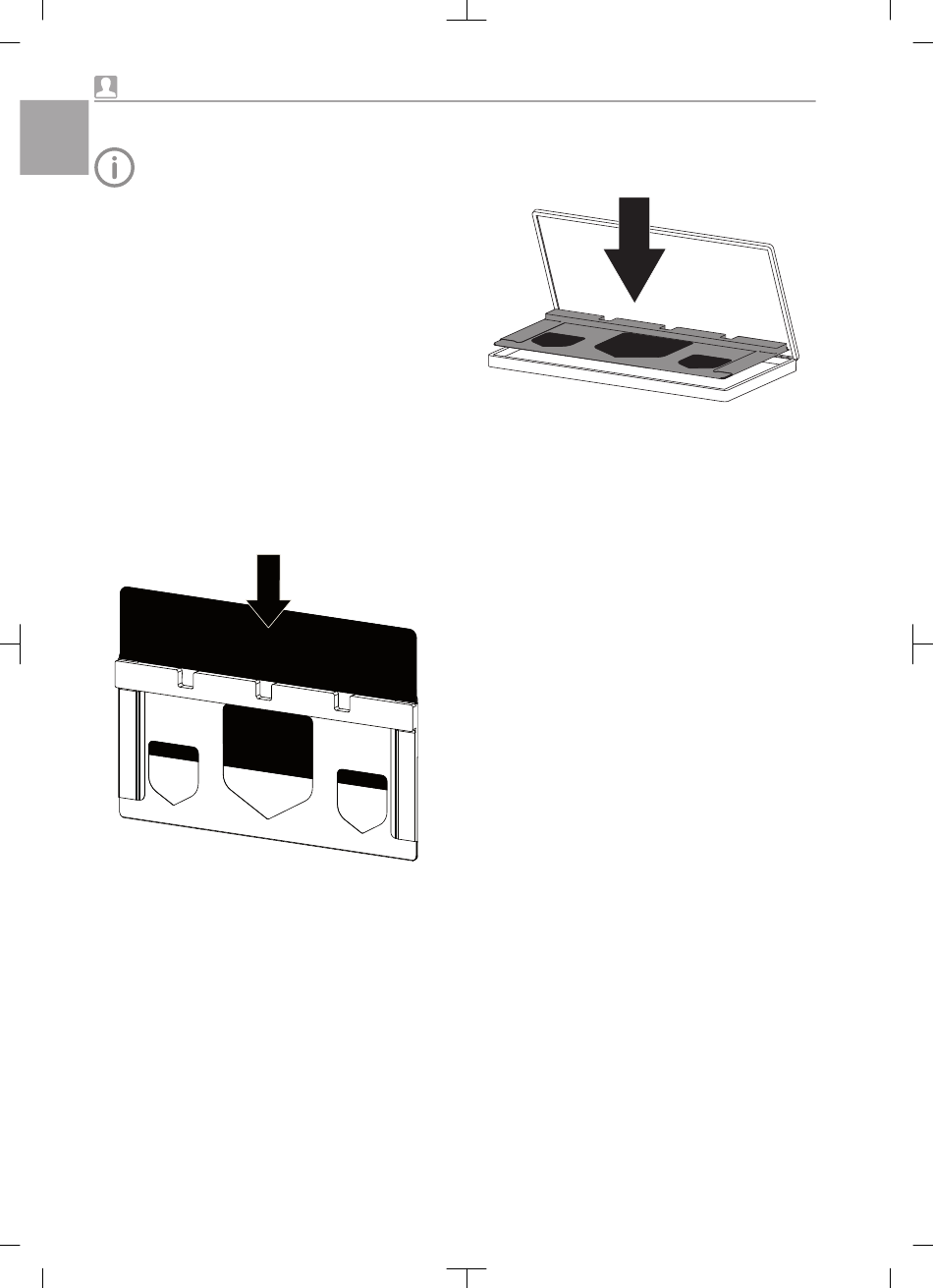

Slide the phosphor storage plate fully into the
❯
plate protector. The black (inactive) side of the
PSP must be visible.
38
Place the plate protector into the X-ray cas-
❯
sette. The foam side of the plate guide must
face in the direction of the cover of the X-ray
cassette.
Taking the X-ray image
Insert the X-ray cassette into the X-ray unit.
❯
Make sure that the active side of the phosphor
storage plate faces the X-ray tube.
Set the exposure time and setting values on
❯
the X-ray unit (see "8.5 X-ray unit settings").
Record the X-ray image.
❯
The image data must be scanned within 30
minutes.
