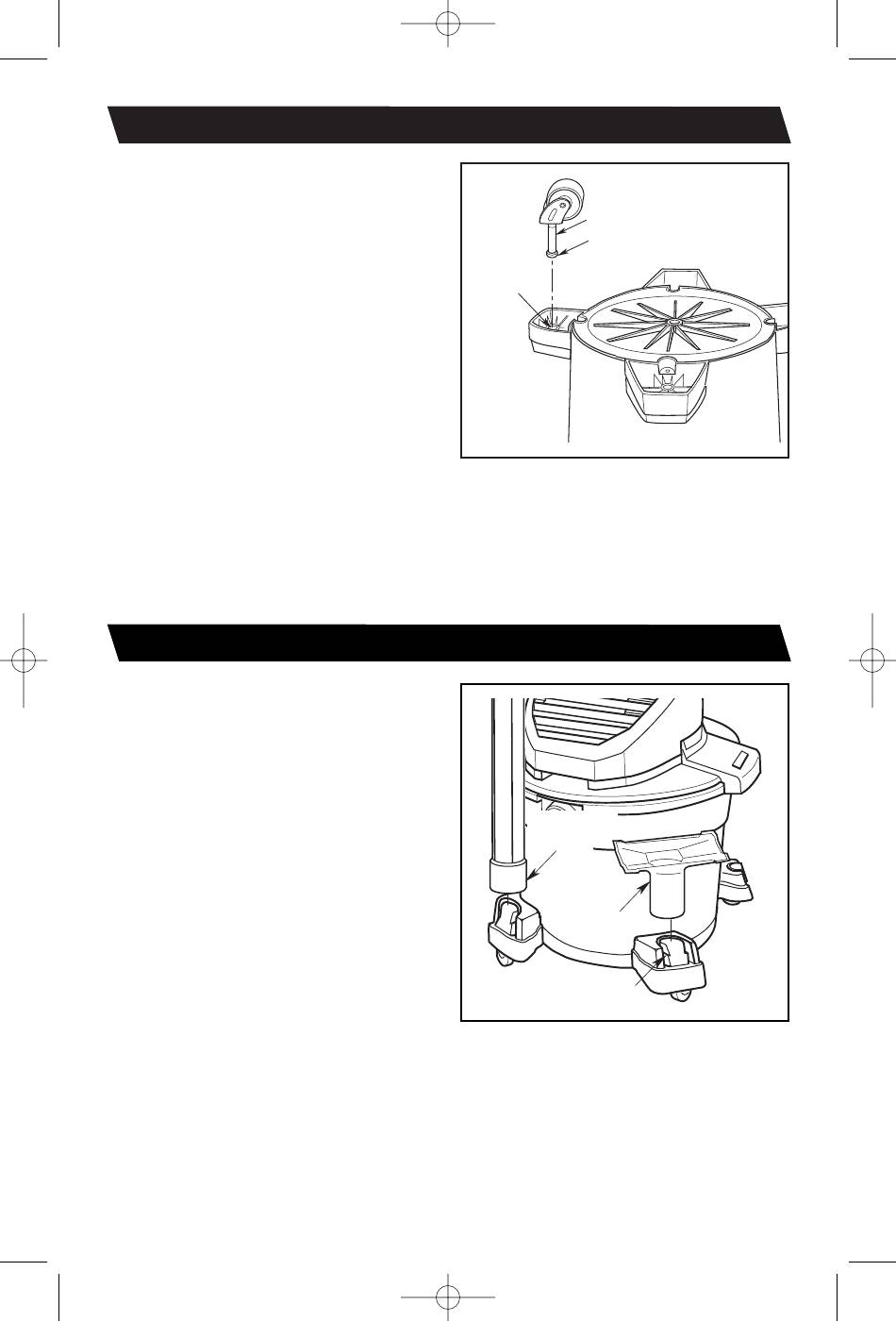

CASTER/CASTER FOOT ASSEMBLY

With the power head and lid assembly
removed from the drum, and the drum
upside down on the floor:
1. Insert the 4 caster feet into the bottom
of drum, as shown on the 4 locations.
2. Push firmly on the caster foot until the
foot is flush with bottom of the dust
drum.
3. Insert the caster stem into the socket
of the caster foot, as shown
(4 places).
4. With a slight twisting motion, push on
the caster until the ball on the caster
stem is inserted all the way into the
socket. You will hear the ball snap into
the socket and the caster will swivel
easily when positioning is correct.
5. Turn the drum upright.
ACCESSORY STORAGE & ASSEMBLY
Your WORKSHOP Wet/Dry Vac is
designed to provide better accessory
storage which is built into the four caster
feet. You may conveniently store your
accessory nozzles, extension wands and
hose at these locations.
7/27/12 2:01 PM
Socket
6
Page 6
Caster Stem
Caster Ball
Extension
Wand
Utility
Nozzle
Caster Foot
w/Storage
