6.1.2 Choose the power supply line
Depending on the version, the device can be
provided with different power supply voltages. Their
value is shown on the product identification label.
Electrical connections must be performed
with the power supply disconnected and
the circuit-breaker open.
When commencing installation make sure
that the specifications for the power supply
for the installation correspond with those
required by the device.
Make sure that the power source and
connecting cables are suitable for the
power consumption of the system.
Use a power cable that is suitable for
outdoor use (ES H05RH-F).

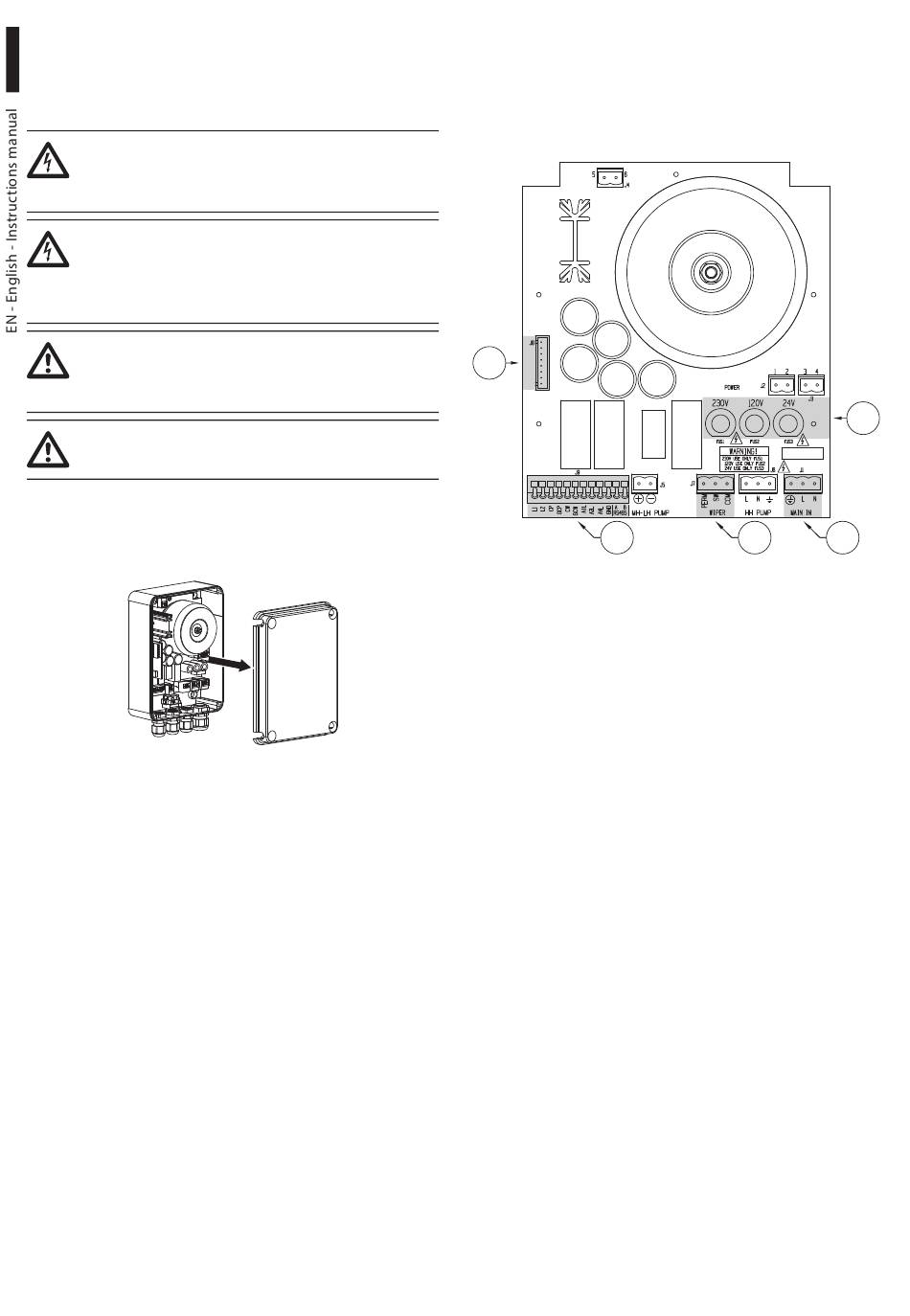

6.1.3 Open the box
Open the cover of the water-proof box and connect
as described below.
Fig. 4
4
6.1.4 Connection of the board
Find the position of the following on the pump
control board: fuses (01), power supply terminal
J1 (02), wiper connector J7 (03), control terminal
J9 (04) and DTWRX optional board connector J8 (05).
05
04
Fig. 5
01
03 02
