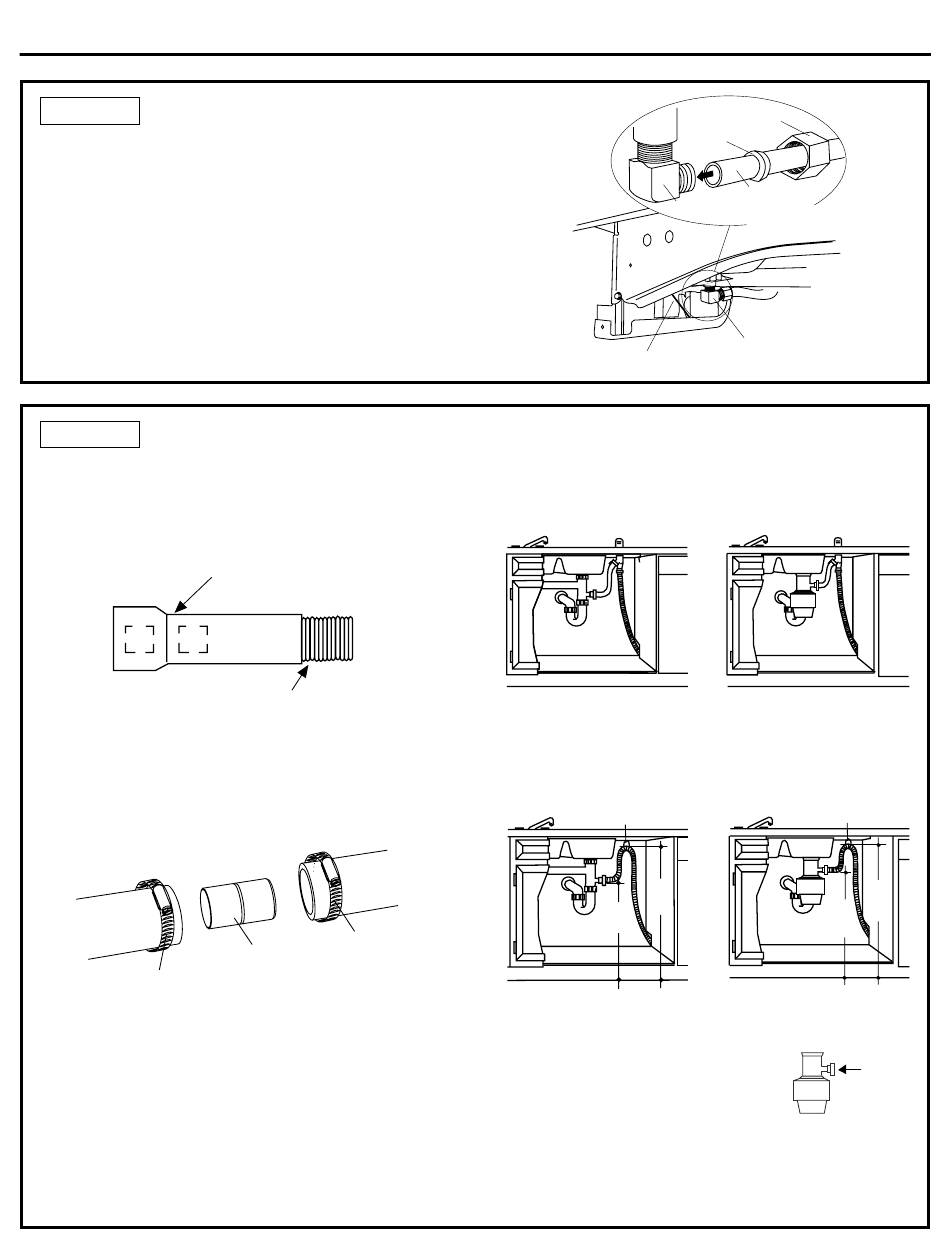

STEP 13
CONNECT WATER SUPPLY
Connect water supply line to 90° elbow.
• Slide compression nut, then ferrule over end of
water line.
• Insert water line into 90° elbow.
• Slide ferrule against elbow and secure with
compression nut.
IMPORTANT
spring does not rub or contact the fill hose or water supply
line. Test by opening and closing the door. Re-route the
lines if a rubbing noise or interference occurs.
STEP 14
CONNECT DRAIN LINE
FOLLOW ALL LOCAL CODES AND ORDINANCES.
The drain hose molded end will fit 5/8" or 1" diameter
connections on the air gap, waste tee or disposer. Cut
on the marked line as required for your installation.
Cutting Line
Figure DD
1"
5/8"
IMPORTANT: Do not cut corrugated
portion of hose
• If a longer drain hose is required, add up to 42" of
length for a total of 10 ft. to the factory installed hose.
Use 5/8" or 7/8" inside diameter hose and a coupler to
connect the two hose ends. Secure the connection
with hose clamps.
Figure EE
Hose Clamp
• Secure the drain hose to the air gap, waste tee or
disposer with clamps.
NOTE: TOTAL DRAIN HOSE LENGTH MUST NOT EXCEED
10 FEET FOR PROPER DRAIN OPERATION.
Installation Instructions
Check to be sure that door
—
Hose Clamp
Coupler
Door Spring
DRAIN LINE INSTALLATION
• Connect drain line to air gap, waste tee or disposer
using either previously determined method.
Method 1—Air gap with waste tee or disposer
Waste Tee Installation
Method 2—"High drain loop" with waste tee or
disposer
Fasten to underside
of countertop
18"
Min.
Waste Tee Installation
IMPORTANT
connecting drain line to disposer,
check to be sure that drain plug has
been removed. DISHWASHER WILL
NOT DRAIN IF PLUG IS LEFT IN PLACE.
TIP: Avoid unnecessary service call charges. Always
be sure disposer drain plug has been removed before
attaching dishwasher drain hose to the disposer.
13
Compression Nut
Ferrule
Hot Water
90° Elbow
Supply Line
Figure CC
90° Elbow
Disposer Installation
Figure FF
Fasten to underside
of countertop
32"
Min.
Disposer Installation
Figure GG
When
—
32"
Min.
18"
Min.
Remove
Hopper
Plug
