CONNECT THE WIRES (REMOTE BLOWER)
Note: This range hood must be properly grounded. The unit should be installed by a qualified electrician in
accordance with all applicable national and local electrical and building codes.

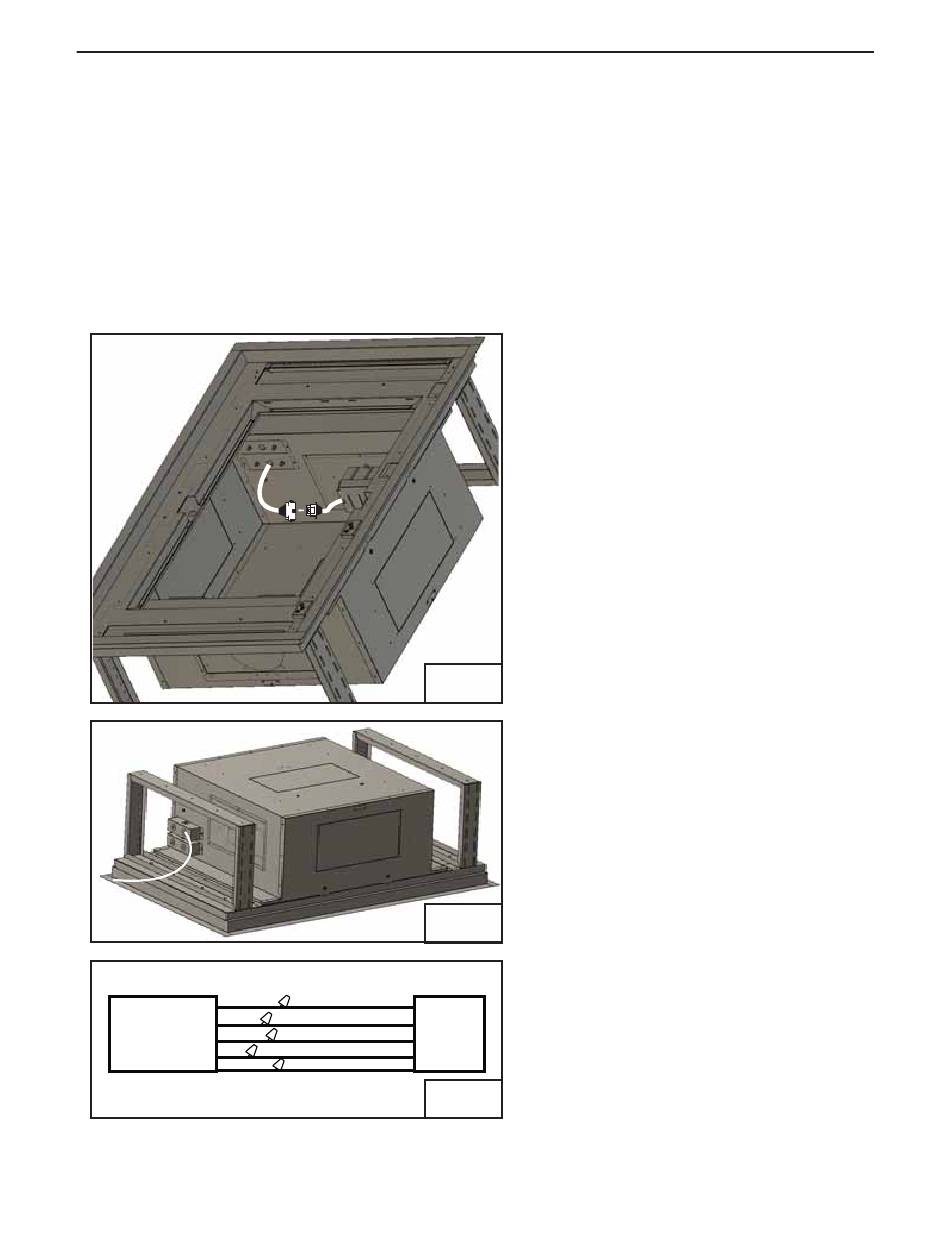

1. Connect 6 Pin Remote Blower Cable to 6 Pin molex plug from internal component box inside range hood.
FIG. 22
2. Run 5-wire power with ground cable from remote blower to the remote blower wiring box. FIG. 23
3. Connect the 5-wire power with ground from remote blower to remote blower cable wires. FIG. 24
CONNECTION AT REMOTE BLOWER
1. Make 5-wire power with ground connection at remote blower (see instructions providedd with remote
blower for further information.
5 Wire Connection
From Remote Blower
CBE-1000 / PBN-1000A: WIRING DIAGRAM
Remote Blower
Wiring Box
(hood)
A
FIG. 22
FIG. 23
White (common)
Black (high)
Junction Box
Blue (med)
(Remote Blower)
Red (low)
Green (ground)
FIG. 24
- 22 -
