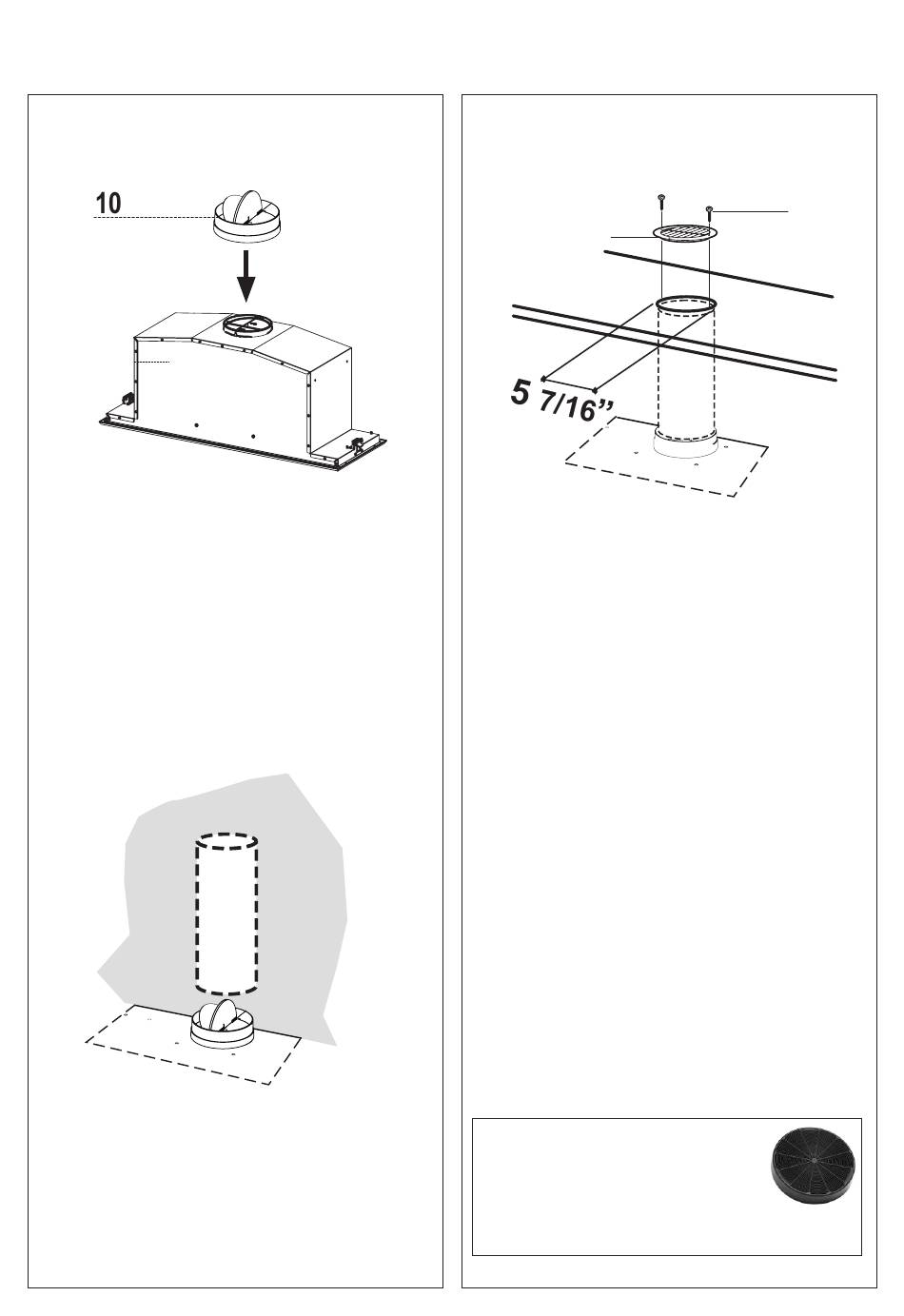

Ducted Venting Installation
Install Damper that is included with the
Hood before connecting to the ductwork.
Install Roof or Wall Cap purchased
separately. Connect the 6" metal duct-
work to the Roof or Wall Cap and then
attach ductwork.
10
Choose your ducting method
For Non-Ducted Recirculation venting route
the ductwork to a location above the hood
where the discharge is vented back into the
room.
Use the included Recirculation Vent Grill (8)
to cover the opening. Secure the grill with
the 2 screws (12e) provided in the Install
Kit.
If the directional grille is not used, fit a straight
tube at least 15" in length from the hood air
outlet to the wall unit.
Non Ducted -
Recirculation Option
8
Required Activated Charcoal Filter
Accessory - sku # - FILTER1
Long Lasting Activated Charcoal
Filter Accessory - sku # FILTER1LL
(purchased separately)
12e
