MANUAL CRANK HANDLE

USInG THE InCLUDED PoWER LoSS MAnUAL CRAnK HAnDLE
In case of a dead battery, your downrigger comes equipped with a power loss manual crank handle. This handle allows
for the retrieval of your weight should you lose power or have an electrical failure. To utilize the handle follow the below
steps.
WARnInG: LOOSENING OR REMOVING THE CLUTCH KNOB WILL RELEASE THE SPOOL AND ALLOW IT TO RUN
FREE. MAKE SURE YOU HOLD THE SPOOL BEFORE REMOVING THE CLUTCH KNOB. It is recommended that you wear
protective gloves when working with the spool.
1. Unplug downrigger and secure reel. See warning above.
2. Rotating clockwise, remove the clutch knob.(Figure 22)
CAUTIon: Take care when removing the clutch knob over open water.
3. Install the handle' s hex pattern to match the hex pattern on the spool. Once installed, turn the crank towards you to
retrieve the weight. (Figure 23)
©2016 Johnson Outdoors Marine Electronics, Inc.

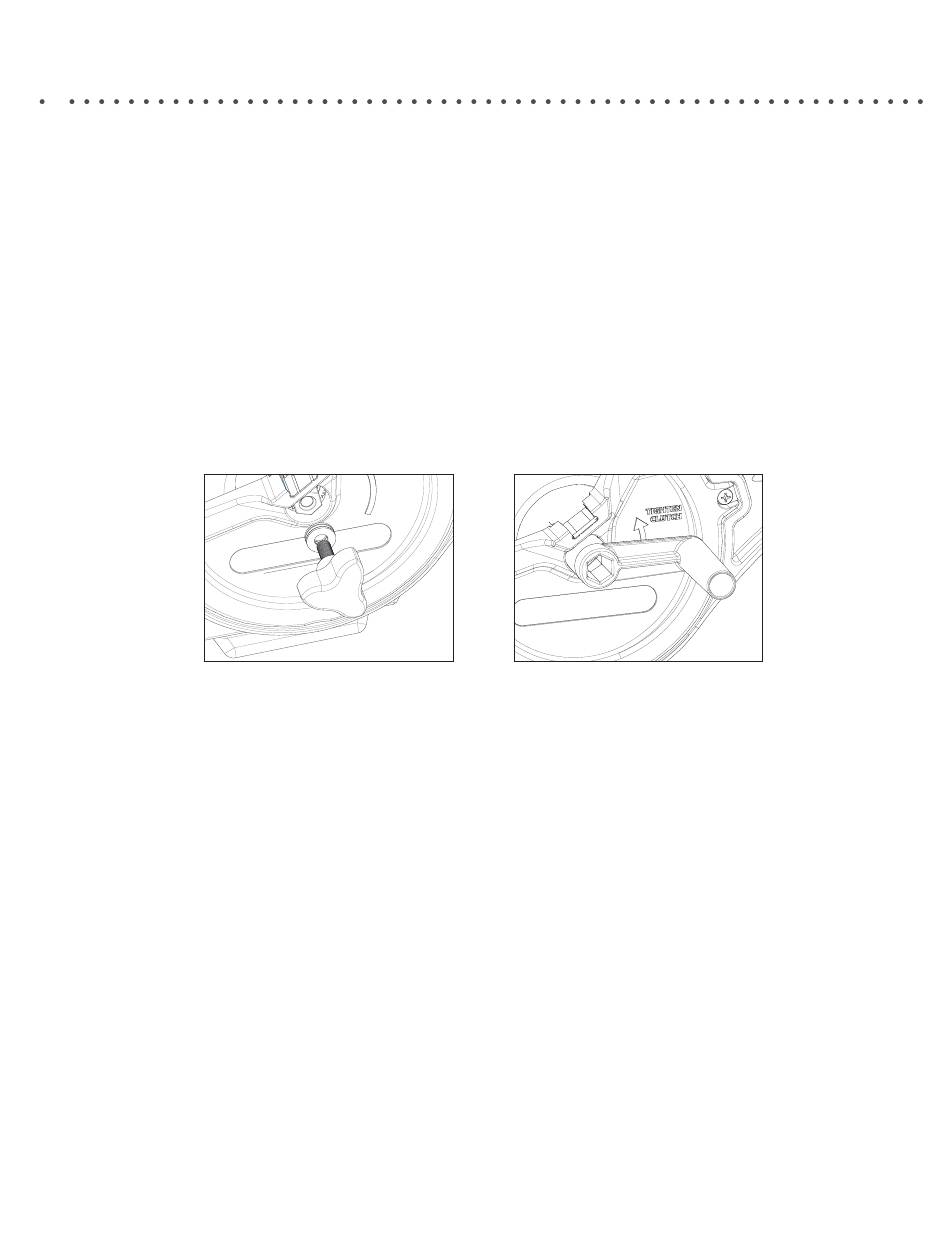

Figure 22 Figure 23
