ASSEMbLy & INSTALLATION

INSTALLING THE END PULLEY

1. Locate boom end assembly and then insert boom end post into end of the small tube of the boom assembly. (Figure 4)
2. Align hole in boom post with hole in small end tube.
3. Secure boom end with #8 screw as shown. Tighten with Phillips head screw driver by turning screw clockwise until tight.
(Figure 5)
ADJUSTING THE BOOM LENGTH (UNI-TROLL 10 MODELS ONLY)
To adjust the boom length (with the boom extending away from you) rotate the boom clamps (See item # 7 on page 5)
approximately ¼ turn counter-clockwise to unlock and slide the boom section to the desired position. Once in place,
lock the boom clamps by rotating clockwise until tight.

ATTACHING THE CRANK HANDLE ASSEMBLY

1. Make sure the thrust bearing is placed between both thrust washers.The
spring should be oriented with the narrow end is toward the bearing.
2. Slide the bearing, washers and spring over the shaft.
3. Carefully thread the crank handle onto the shaft and continue turning the
handle clockwise until the clutch is fully tightened.
8 | cannondownriggers.com

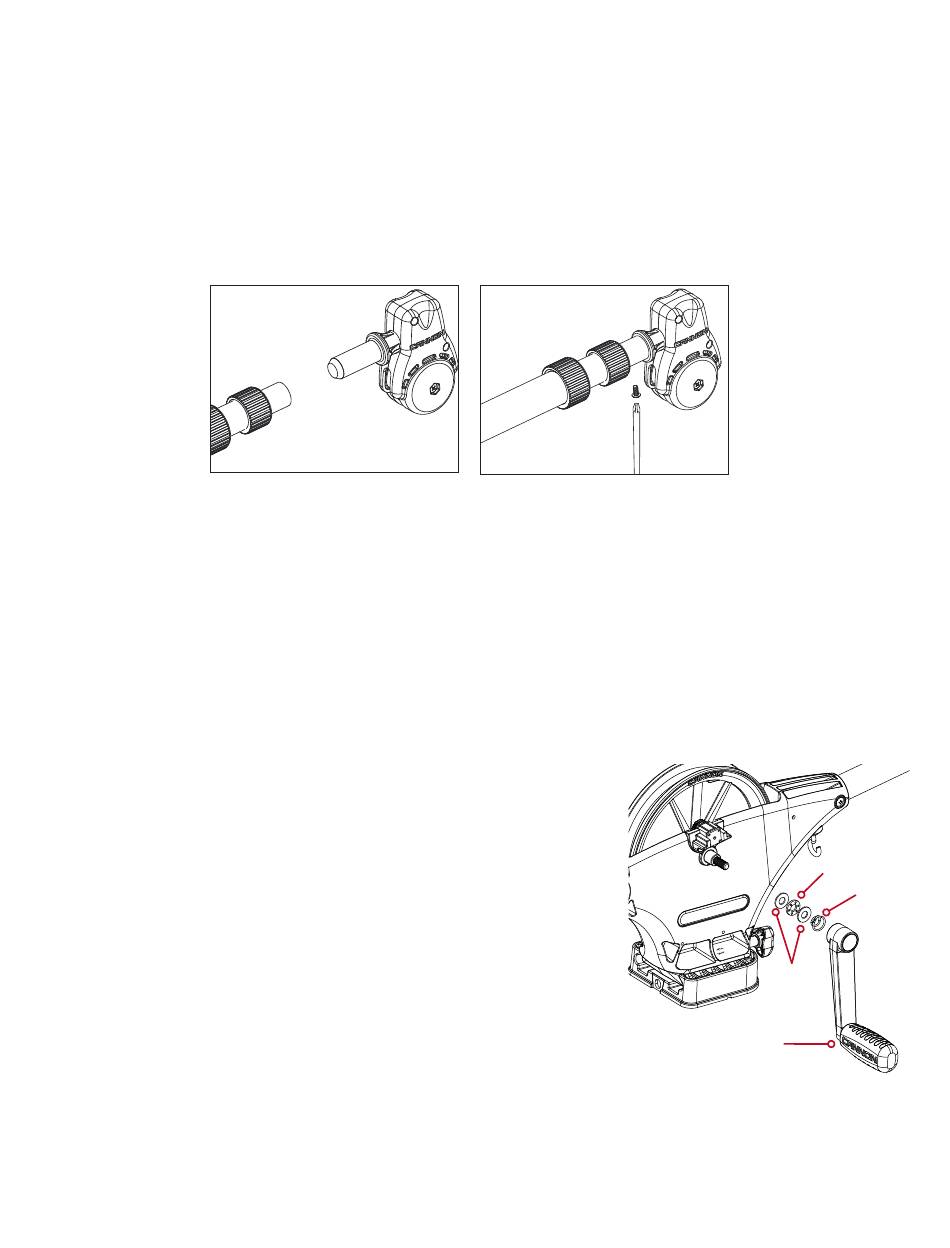

Figure 4
