VessRAID 1000i Series Quick Start Guide

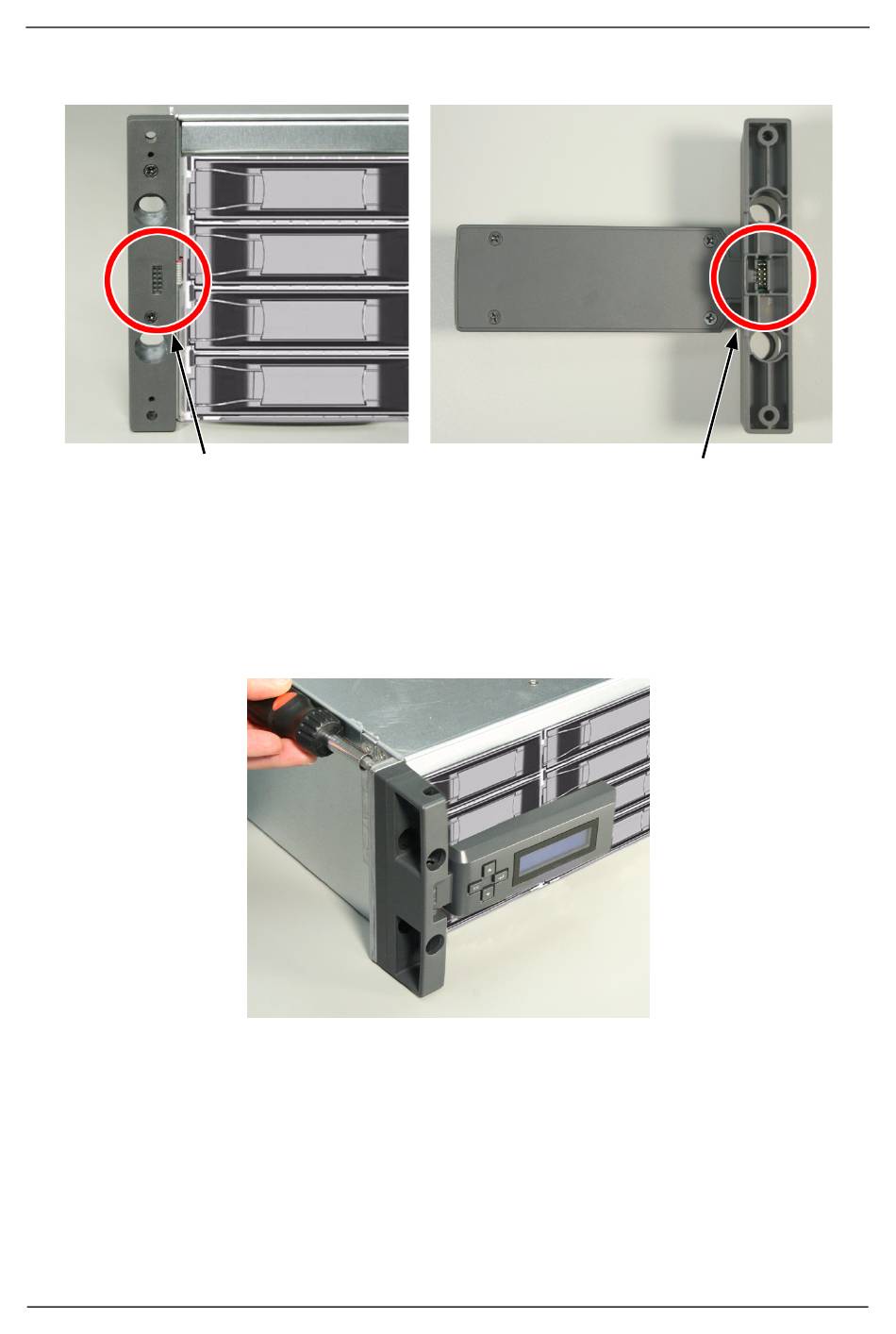

Figure 4. Align the connectors on the enclosure and the LCD panel
2. Insert the two attaching screws through the holes in the left bracket and into
the threaded holes in the LCD panel, as shown in Figure 5.
Tighten the screws to secure the LCD panel to the bracket.
Figure 5. Attaching the LCD panel to the VessRAID enclosure
The LCD screen activates when the VessRAID boots. See "Task 7: Connecting
the Power" on page 18.
Go to "Task 3: Mounting VessRAID in a Rack" on page 7.
Connector on
the enclosure
Connector on
the LCD panel
