INSTALLATION CON'T.
2. Electronic Ignition Module:
NOTE: A licensed electrician should be used to install the ignition module and make any wiring extensions or
modifications.
This grill has been supplied with enough wire to mount the ignition module in the location shown in Figure 1.
The ignition module must be mounted so as to have easy access to the battery compartment for battery replacement (see
Figure 2).
Connect wires to the small and large connections on the rear of the ignition module (see Figure 3).

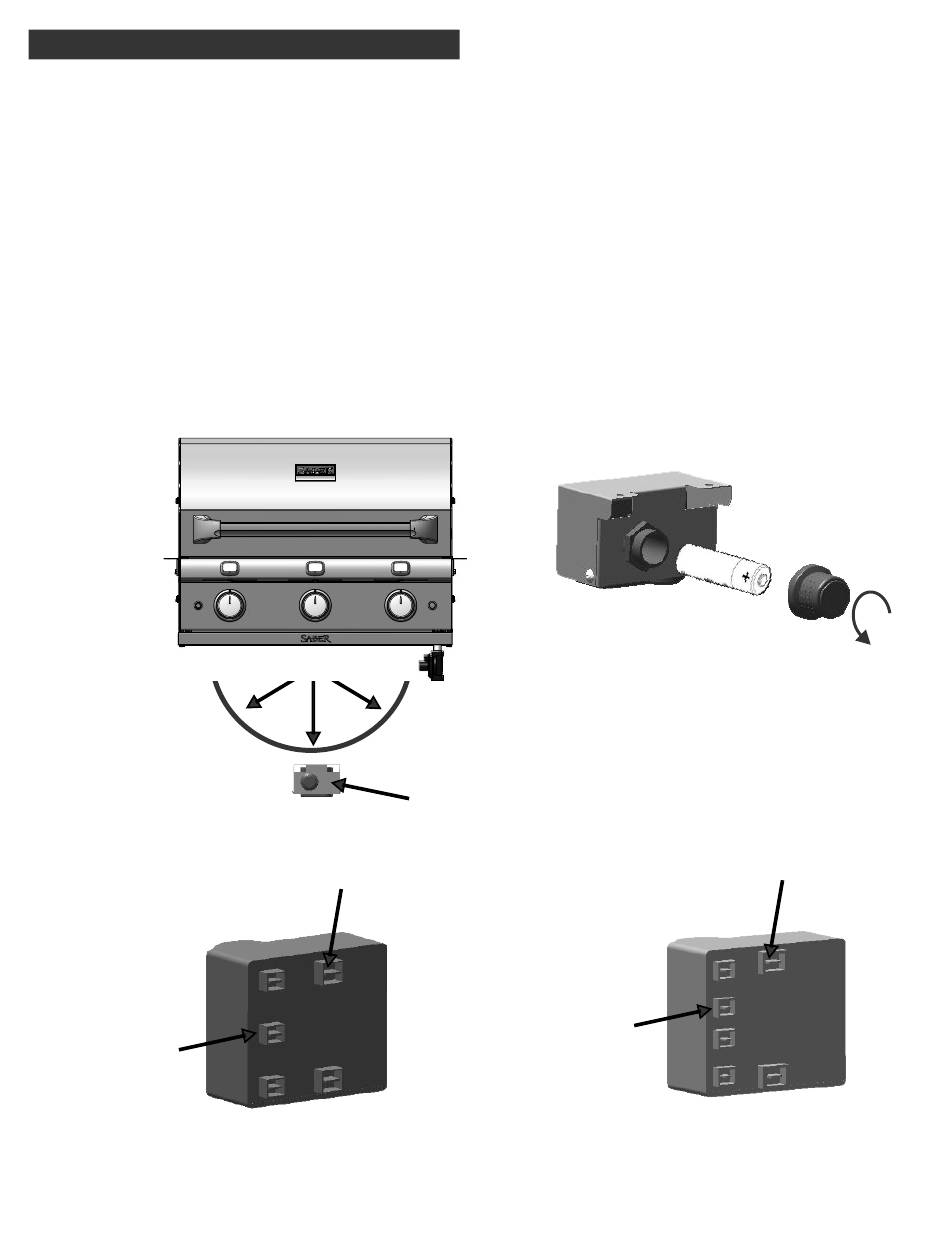

Figure 1
3 Small
Connectors
Portion of Grill Shown
for Illustration Only
3 ft
Ignition Module
& Heat Shield
2 Large Connectors
R50SB1517
Rotate cap counterclockwise
to open battery compartment.
Figure 2
4 Small
Connectors
Figure 3
2 Large Connectors
R67SB1017
