Xylem FLOJET R7000 Mode D'emploi

FITTINGS
20381-700 20381-701 20381-704
( 1 PAIR ) ( 1 PAIR ) (1 PAIR )
PORT PORT PORT
1" (25 mm)
3/4" (19 mm) 1/2" - 14 QEST
HOSE BARB HOSE BARB STRAIGHT-EP
STRAIGHT-EP STRAIGHT-EP

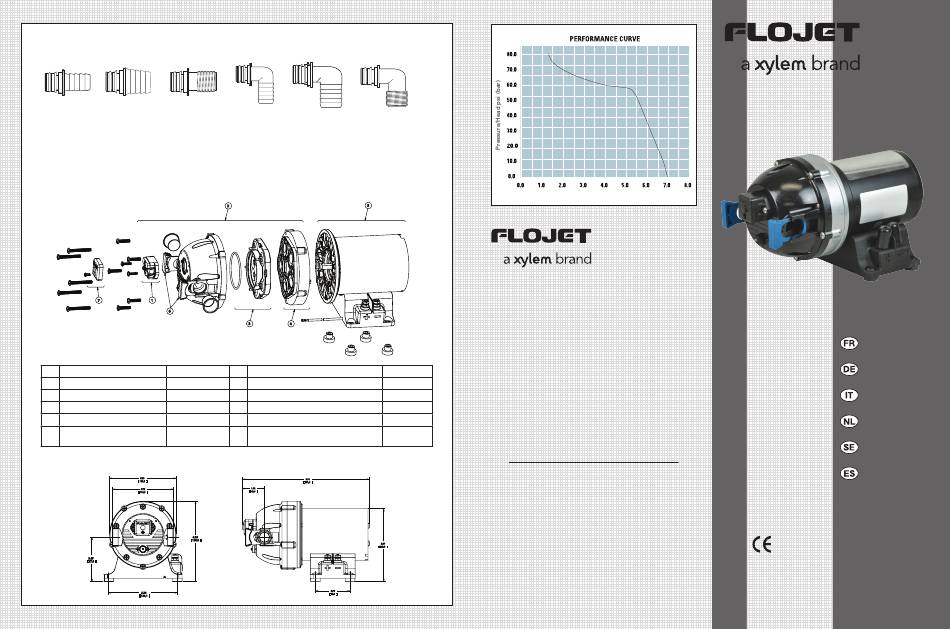

EXPLODED VIEW
Key Description Part Number
1 Pressure Switch 02090780
2 Pump Head Kit 20406780
3 Check Valve Assembly (EPDM) 20419730
3 Check Valve Assembly (Viton) 20407720
4 Lower Housing Assembly 20407730
(Santoprene)
DIMENSIONAL DRAWING
5.20
[ 132,1 ]
4.76
[ 120,9 ]
6.25
[ 158,8 ]
3.45
[ 87,6 ]
5.36
[ 136,1 ]
20381-710
20381-711 20381-714
( 1 PAIR ) ( 1 PAIR )
( 1 PAIR )
PORT
PORT PORT
3/4" (19 mm)
1" (25 mm) 1/2" - 14 MALE QEST
HOSE BARB
HOSE BARB
90° ELBOW-EP
90° ELBOW-EP
90° ELBOW-EP
Key Description Part Number
5 Motor With Baseplate 12V R2009209
5 Motor with Baseplate 24V R2019086
6 Port Clips (2) 20408700
7
9.90
[ 251,4 ]
1.72
[ 43,6 ]
5.67
[ 143,9 ]
2.70
[ 68,6 ]
Flow Rate (gpm)
UNITED STATES
East Coast
Tel: +1 978 281 0440 Fax: +1 978 283 2619
West Coast
Tel: +1 949 608 3900 Fax: +1 949 608 3887
UNITED KINGDOM
Tel: +44 (0) 1992 450 145 Fax: +44 (0) 1992 467 132
GERMANY
Tel: +49 (0) 40 53 53 73 0 Fax: +49 (0) 40 53 53 73 11
ITALY
Tel: +39 039 6852323 Fax: +39 039 666307
JAPAN
Tel: +81 (0) 45 475 8906 Fax: +81 (0) 45 477 1162
CHINA
Tel: (86)21 2208 2888 Fax: (86)21 2208 2999
www.xylemflowcontrol.com
The products described herein are subject to the flojet one year limited
warranty, which is available for your inspection upon request.
Les produits décrits ci-dessous bénéficient de la garantie limitée d'un an de Flojet, que vous
pouvez consulter sur simple demande.
Die nachstehend beschriebenen Produkte unterliegen einer einjährigen Gewährleistung. Die
Gewährleistungsbedingungen können bei Flojet angefordert werden.
I prodotti qui descritti sono coperti dalla garanzia Flojet limitata di un anno, disponibile per la
visione su richiesta.
De hierin beschreven producten worden aangeboden met de beperkte Flojet garantie van één
jaar. Deze is op aanvraag verkrijgbaar ter inzage.
För produkterna som beskrivs nedan utfärdar Flojet ett års begränsad garanti, som vi kan
skicka till dig på begäran.
Los productos descritos en este folleto están respaldados por la garantía limitada de Flojet por
un año, que está disponible para su lectura a pedido.
Flojet is a trademark of Xylem Inc. or one of its subsidiaries.
© 2012 Xylem, Inc. 81000-446 Rev. D 11/2012
Installation
Guide
R7000 Guide d'installation
Einbauanleitung
Guida all'installazione
Installatiegids
Installationsmanual
Guía de instalación
