Agitator Shaft
Eje del agitador
Arbre d'entraînement
Belt Pulley
Polea para
correa
Poulie de
la courroie
Push Off
Empuje hacia
fuera
Pousser

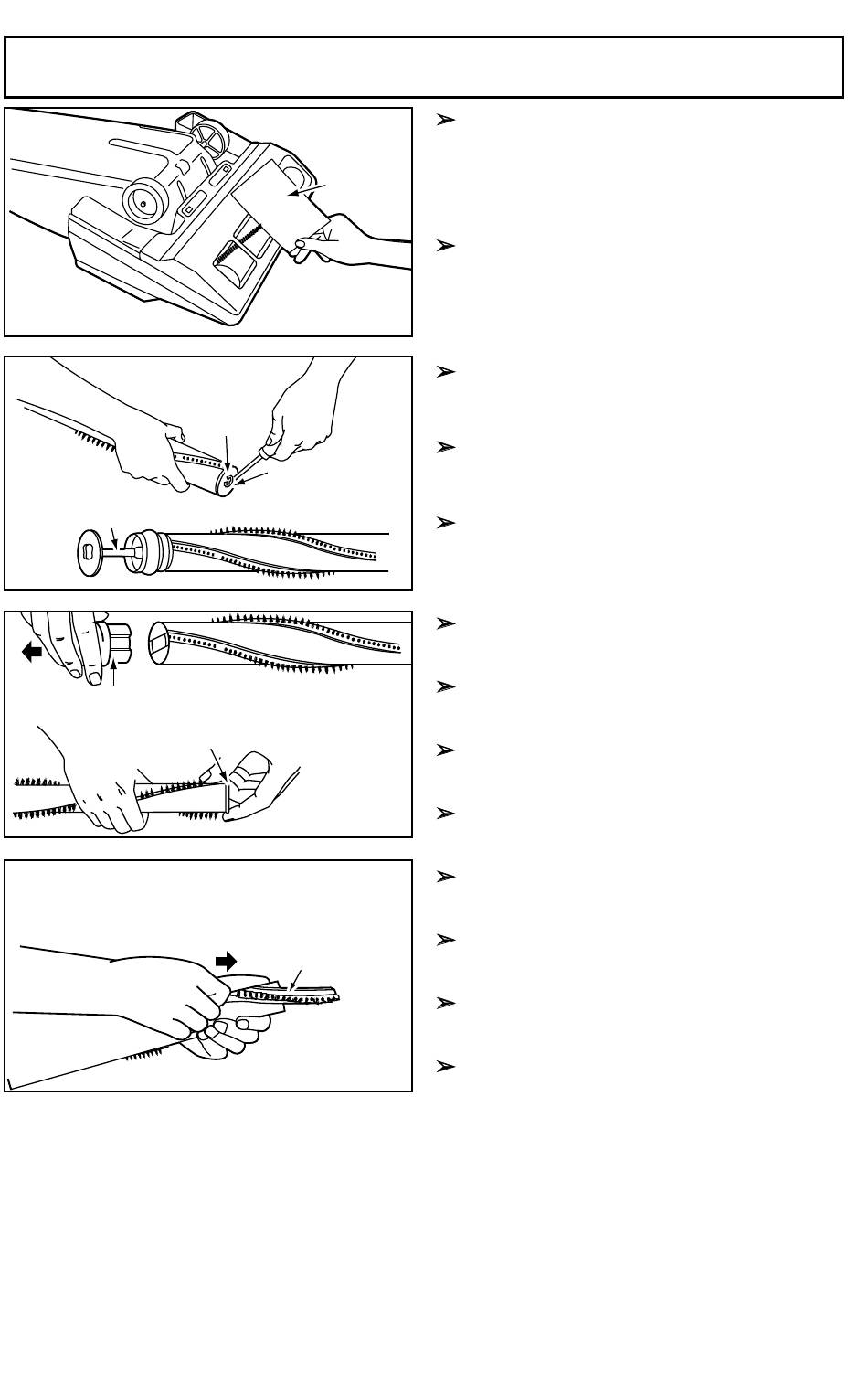

Replacing Brushes
Card
Tarjeta
Carte
E-Clip
Sujetador
de E
Bride en E
Right End Cap
Tapa de extremo
derecho
Bouchon droit
Agitator Holder
Support de l'agitateur
Soporte del agitador
Brush
Cepillo
Brosse
When the bristles on the agitator are
worn so that they do not touch a card
held across the lower plate, the
brushes should be replaced.
Remove lower plate and agitator.
Remove the E-clip from agitator shaft
and end cap.
Do not bend agitator shaft or lose E-
clip.
Pull agitator shaft out of agitator
body.
Pull, or pry out, agitator holder and
agitator pulley.
Push each brush out of agitator body
as shown.
Install new brushes by reversing
procedure.
Reinstall agitator holder and agitator
pulley completely.
Reinstall the agitator shaft, end cap
and E-clip.
See exploded view on page 32 for
correct assembly of parts.
Position belt over agitator pulley on
the agitator.
Reinstall agitator and lower plate.
- 30 -
