Alpha 600 Handbook
Custom Model:
Model: CA600 18G (NS-WAK-001)
Input voltage range: 90-264Vac
Outputs 18V 25A (450W, 100AT total)
Ambient 50°C max
Orientations All except psu vertical with airflow downwards and psu upside down
Model NS-WAK-001 is identical to Model Alpha 600 18G.
Both Models are identical to the standard product, except they may be fitted with a Papst 612NGM fan.

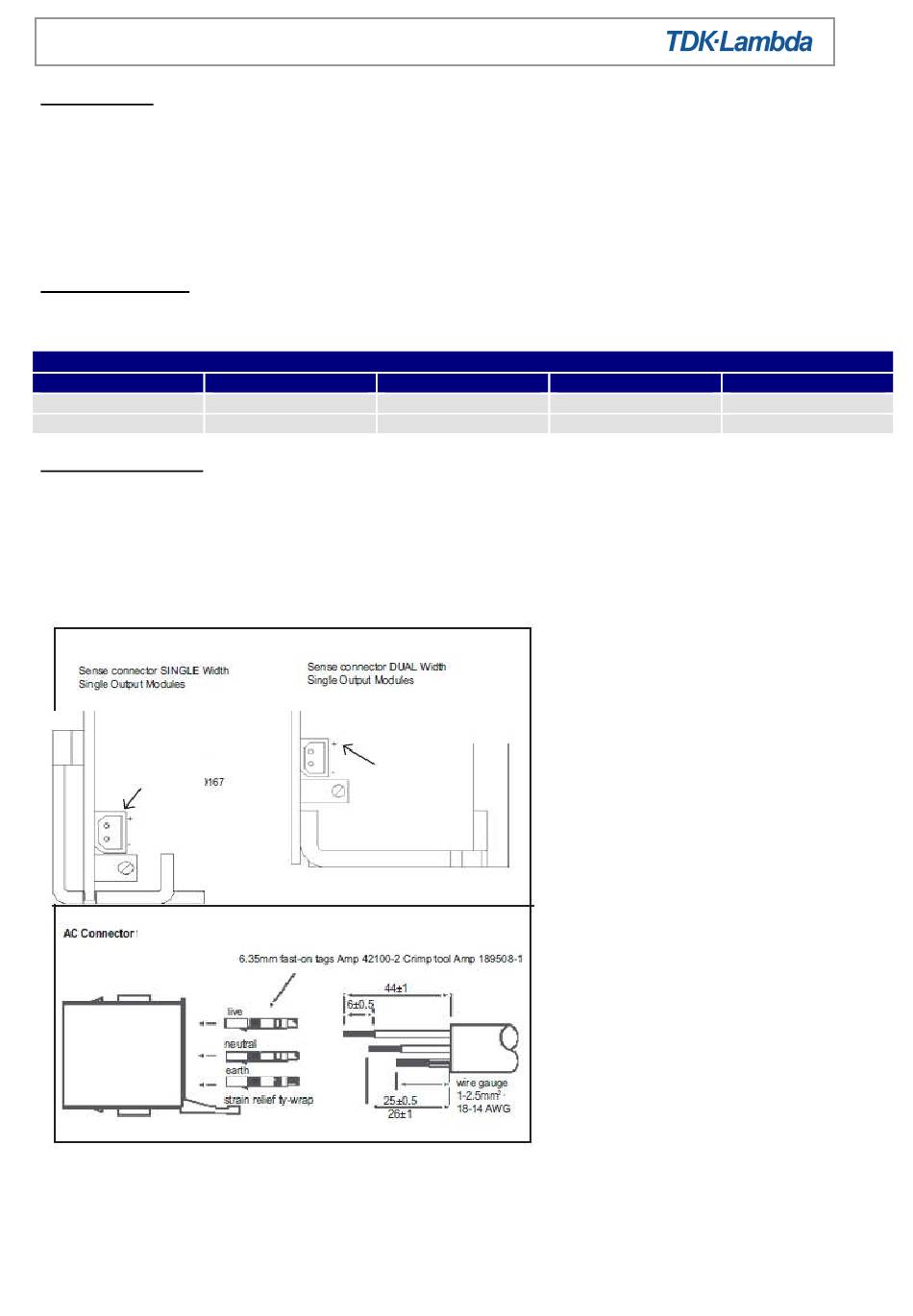

Input Connections:
Input tabs- 6.3mm x 0.8mm, tin plated brass, rated 15A.
Brand
Amp Red
Amp Blue
Output Connections:
Output Connector Ratings:
1) 6.35mm fastons are rated at 15A.
2) 9.5mm Faston terminals are rated at 32A (tab thickness = 1.0mm, suitable Faston terminals are AMP 151667-2 or
AMP 280223-2)
3) M5 screw terminals are rated at 100A subject to the wire and wire connector used to connect them. Maximum
recommended torque setting for M5 screws is 2.4 – 2.6Nm.
Mating input faston connectors
Colour Wire size (awg)
22 - 18
16 - 14
Page 17 of 20
Part number
2-520407-2
3-520408-2
17130 issue 36, September 2018
Current rating
15A
15A
