Unit door

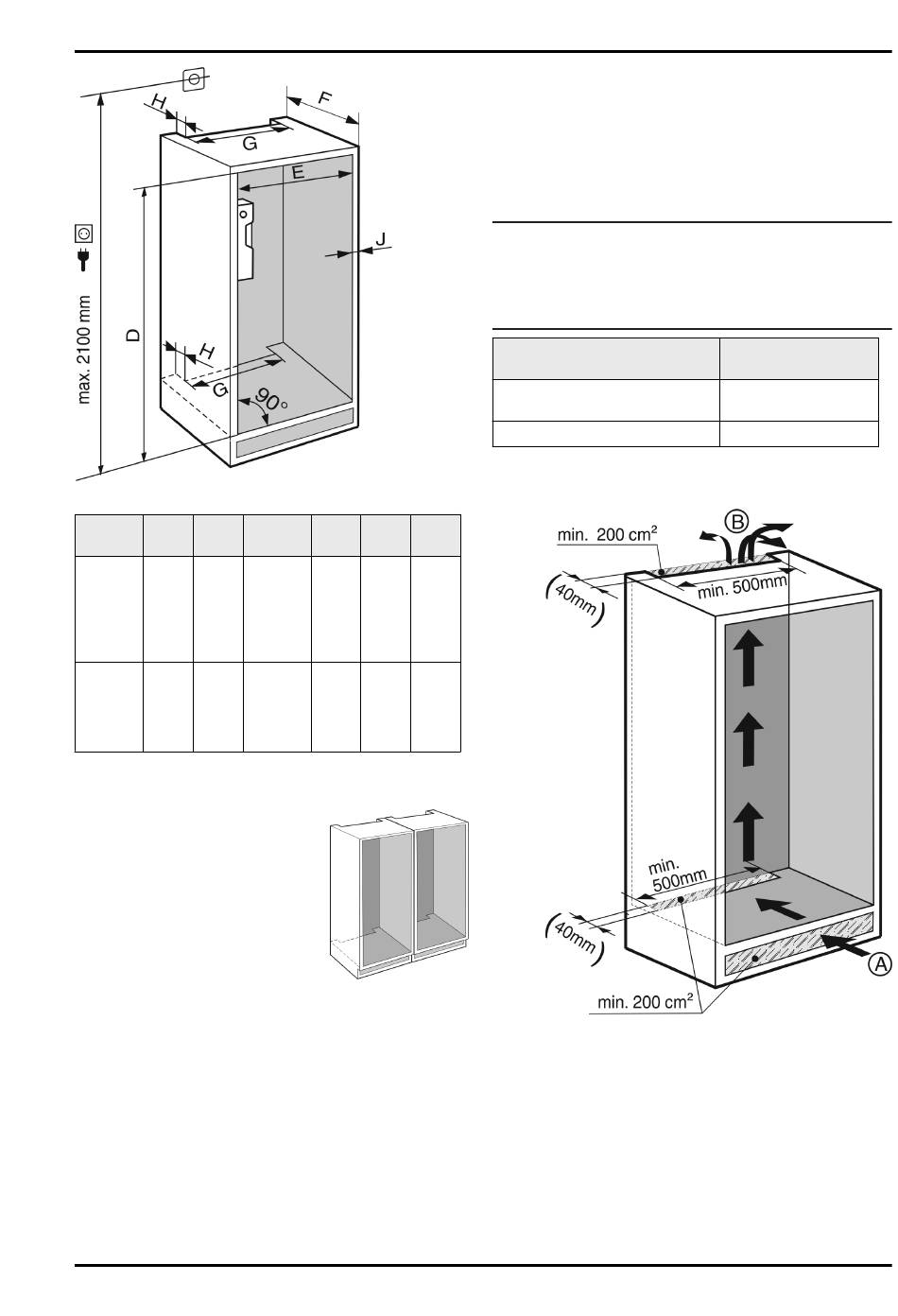

Fig. 2
D E
(mm) (mm)
Magnum
2 60i
1772 560
eco,
— —
Jumbo
1788 570
60i, Iglu
60i
Ideal 60i
874 560
— —
890 570
The specified energy consumption applies to a unit depth of
560 mm. The appliance will work properly at a unit depth of 550
mm, but at a slightly higher energy consumption.
u In the case of Side-by-Side installa-
tion, two appliances next to one
another, build the appliances into
separate kitchen units.*
u Check the wall thickness of the adjoining cabinets: it must
be min. 16 mm thick.
u Only install the appliance in robust, stable kitchen units.
Secure the units against tipping.
u Align the kitchen unit using a spirit level and marking square
and if necessary compensate with shims.
u Ensure that the floor and walls of the unit are at right angles
to one another.
6 Unit door
- One door is required for the kitchen unit.
- The door must be minimum 16 mm and maximum 19 mm
thick.
22
F (mm) G H J
(mm) (mm) (mm)
min.
550,
min. min. max.
recom-
500 40 19
mended:
560
min.
550,
min. min. max.
recom-
500 40 19
mended:
560
There must be a gap of minimum 3 mm width between the
-
door and the unit door located above it (if one exists).
The width of the unit door depends on the style of the
-
kitchen and the gap size between the door panels of the
cabinet. Generally, there should remain a vertical gap of
3 mm between the unit doors.
- If other cabinets are present, the top edge of the unit door
should be on a level with the doors of the adjoining units.
- The unit door must be planar and mounted stress-free.
NOTICE
Risk of damage from over-heavy unit door!
If the unit door is too heavy, damage to the hinges and resulting
impairment of function cannot be excluded.
u Before mounting the unit door, make sure that the door does
not exceed the approved unit door weight.
Appliance model
Magnum 2 60i eco, Jumbo 60i,
Iglu 60i
Ideal 60i

7 Ventilation of the kitchen unit

*
- There must be an effective ventilation shaft of at least
200 cm 2 per appliance at the air inlet
Fig. 3 (B) vent.
The principle applies that the larger the ventilation shaft, the
-
more energy-saving the operation of the appliance.
- The depth of the ventilation shaft at the back of the cabinet
must be min. 40 mm.
Maximum
door weight (kg)
26
16
Fig. 3 (A) and outlet
* Depending on model and options
cabinet
Fig. 3
