Becker tubular drives with mechanical limit switching must not be connected in parallel. For simultaneous control of several
drives use appropriate Becker controls.
Other devices or consumption units (lamps, relays, etc.) must not be connected directly to the drive connection cables. For
this purpose, the drives and additional units must be decoupled by relay controls. When installing the drive, an allpole separa-
tion capability from the mains with at least 3mm contact opening width per pole must be provided (VDE 0700).
Attention
Only use mechanically or electrically locked switching elements with a marked zero position! Protect the
electrical connections against dampness.
Becker tubular drives bear the CE mark. These drives comply with the valid EU guidelines and meet EMC regulations.
If the drive is operated with units containing sources of interference, the electrician must ensure suitable interference sup-
pression for the relevant devices.
Type
Nominal torque (Nm)
Output speed (min )
-1
Final limit position range
Mains voltage
Power consumption (W)
Nominal current consumption (A)
Operating mode
Degree of protection
Minimum barrel diameter (mm)
Operation with individual switch
Subject to technical changes without notice

Information for the Electrician

Technical data

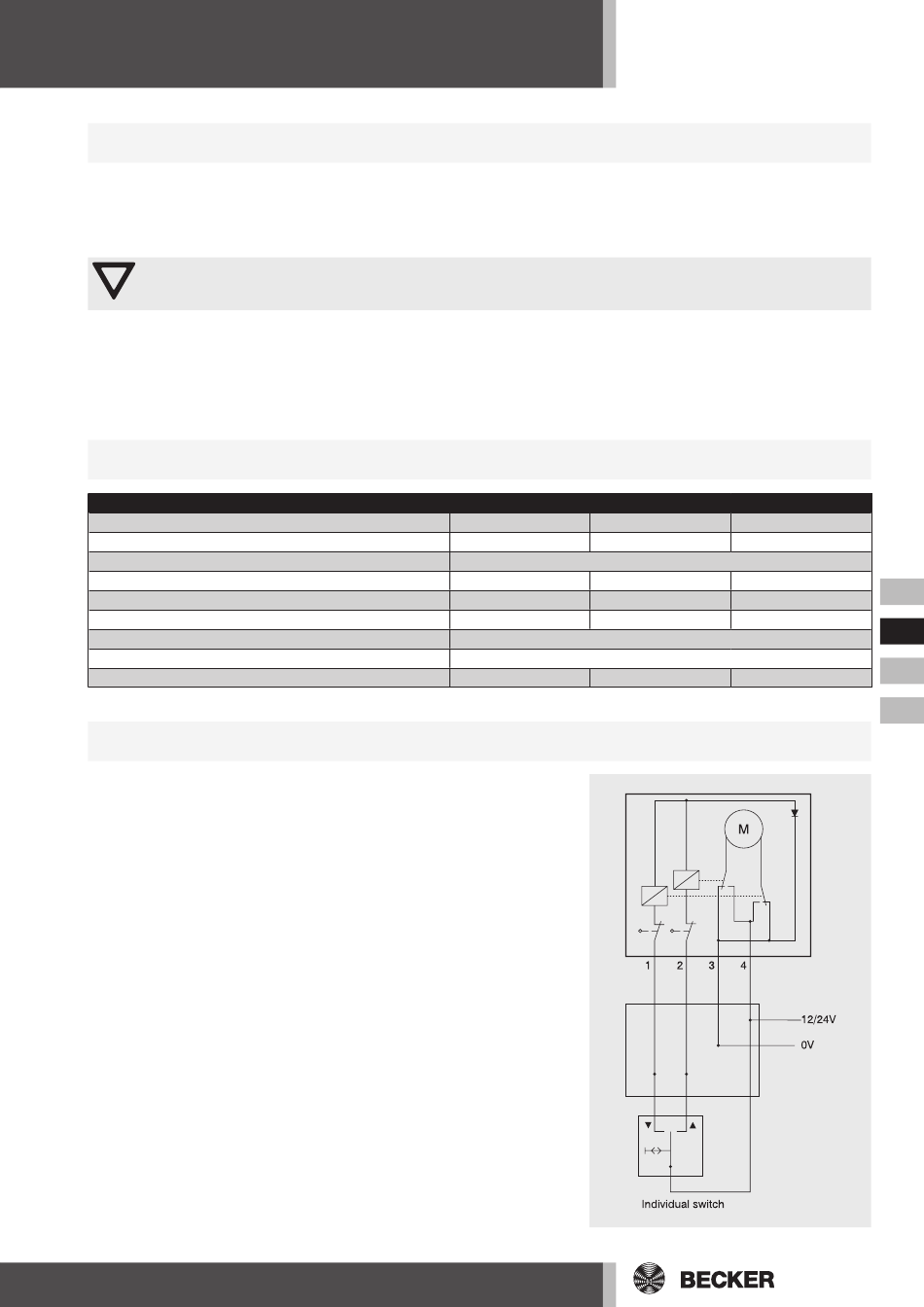

Connection example

R35/8G R60/8G
35 60
8 8
36 revolutions
12 V DC 24 V DC
100 150
9 6,3
S2 4 Min.
IP 44
60 60
R120/3G
120
3
24 V DC
DE
120
5
GB
FR
60
NL
15
