For optimal dust extraction, use the connecting
sleeve 6.30796.
We recommend using an antistatic suction hose
with diameter 35 mm.
7. Attaching the accessory
Disconnect the mains plug before changing
any accessories. The machine must be
switched off and the spindle must be at a standstill.
7.1
Locking the spindle
Press in the spindle locking knob (9) only
when the spindle is stationary!
- Press in the spindle locking button (9) and turn the
spindle (7) by hand until you feel the spindle
locking button engage.
7.2
Fitting/removing the routing tool
For safety reasons, use the safety guard (19)
with the attached depth stop (22).
See illustration B on page 2.
To fit:
- Lock the spindle (see chapter 7.1).
- Screw on and tighten the routing tool (6) using the
2-hole spanner (5) in a clockwise direction.
To remove:
- Lock the spindle (see chapter 7.1). Unscrew the
routing tool (6) with the 2-hole spanner (5) in an
anticlockwise direction.
7.3
Fitting/removing the diamond cup wheel
For safety reasons, use the safety guard (19)
with the attached depth stop (22).
See illustration C on page 2.
To fit:
- Fit the support flange (12) on the spindle. (7) The
flange should not turn on the spindle when
properly attached.
- Lay the diamond cup wheel (11) on the support
flange (12) so that it lies flat along the support
flange.
- The 2 sides of the clamping nut (10) are different.
Screw the clamping nut onto the spindle so that
the band of the clamping nut (10) is facing upward.
- Lock the spindle (see chapter 7.1). Turn the
clamping nut (10) clockwise using the 2-hole
spanner (5) to secure.
To remove:
- Lock the spindle (see chapter 7.1). Turn the
clamping nut (10) anticlockwise using the 2-hole
spanner (5) to unscrew.
8. Use
8.1
Setting speed
Set the optimum speed on the setting wheel (18),
depending on the application.
8.2
Switching On and Off
Always guide the machine with both hands.
Switch on first, then guide the accessory
towards the workpiece.
The machine must not be allowed to draw in
additional dust and shavings. When switching
the machine on and off, keep it away from dust
deposits. After switching off the machine, only place
it down when the motor has come to a standstill.
Avoid inadvertent starts: always switch the
tool off when the plug is removed from the
mains socket or if there has been a power cut.
In continuous operation, the machine
continues running if it is forced out of your
hands. Therefore, always hold the machine with
both hands using the handles provided, stand in a
safe position and concentrate.

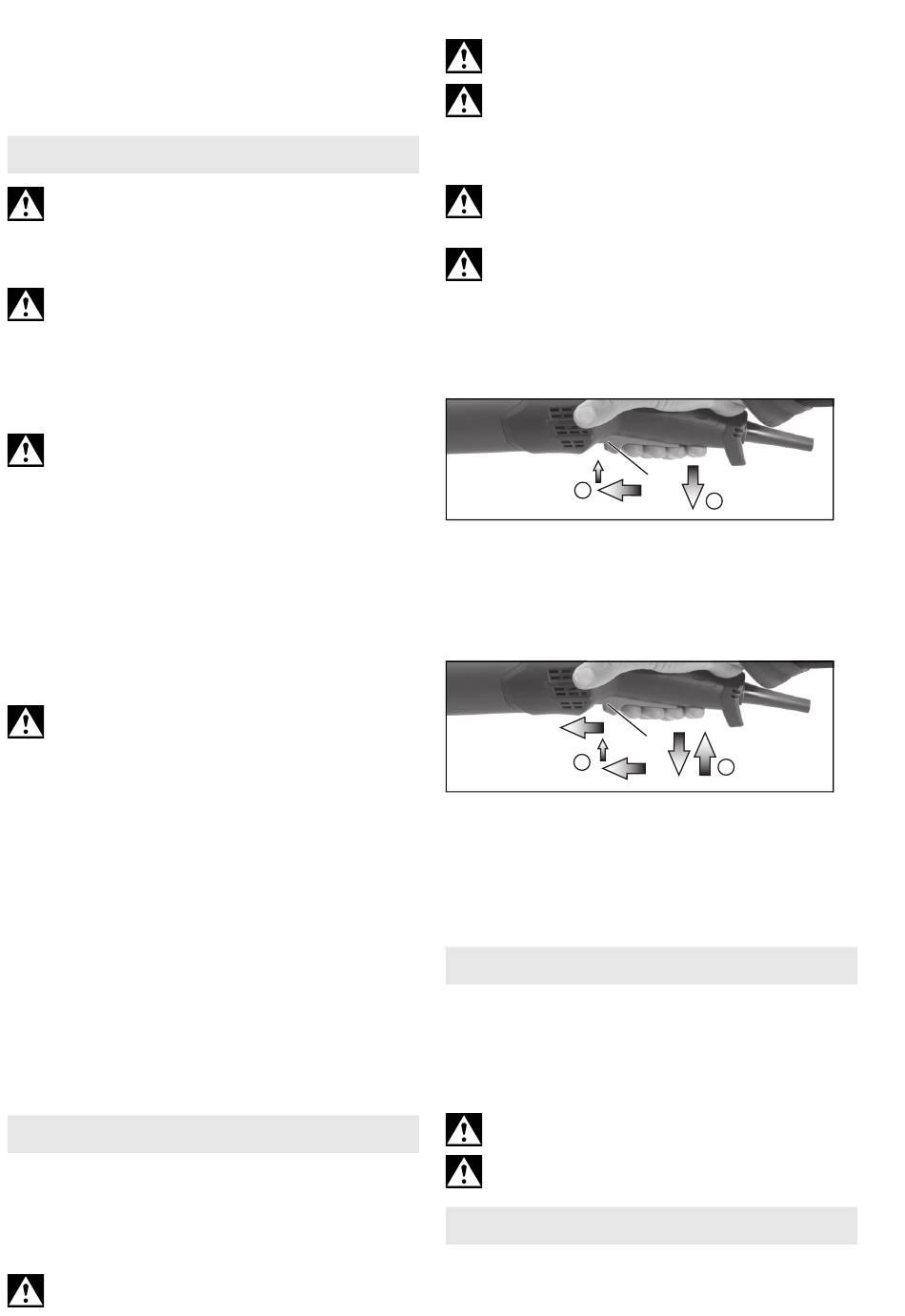

Machines with the designation W...RT:
Torque activation (with dead man's lever)
I
Switching on: Slide the trigger switch (18)
forwards and then push the trigger switch
(18) upwards.
Switching off: Release the trigger switch (18).
Machines with the designation W...RT:
Continuous operation (depending on features)
I
Switching on: Switch the machine on as described
above. Now slide the trigger switch (18)
forwards again and release in the front
position to lock the trigger switch (18)
(continuous operation).
Switching off: Push the trigger switch (18)
upwards and release.
9. Maintenance
Replace worn or damaged routing wheels (see
figure, page 2):
- Removing the routing tool (see chapter 7.2).
- Extract the screw (13) in an anticlockwise
direction. Remove the safety disc (14).
- Replace all routing wheels as shown.
(Always use the same type of routing wheels).
-Reassemble all parts as shown.
Insert and turn the screw (13) in a clockwise
direction and tighten with 13 Nm ± 1 Nm.
10. Cleaning
Motor cleaning: blow compressed air through the
rear ventilation slots of the machine regularly,
ENGLISH en
