1.3.8 - 75 Ω Ω Ω Ω connecting strip
The 75 Ω connecting strip is supplied with element attaching in 19" rack..
!
Secure connecting strip on the rack uprights, above or under the ADR155C shelf,
!
Plug in respectively 'E1 INPUT', 'E1 OUTPUT' and 'SYNC' connectors on the connectors
(120 Ω) with the same name in the ADR155C shelf,
Make 75 Ω connections:
!
!
(TX) 1 to 21 transmission port : connecting strip upper line,
!
(RX) 1 to 21 reception port : connecting strip lower line,
!
SYNC (TX and RX) port : two connectors on the right side of the connecting strip.
No reproduction or communication without the written consent of SAGEM SA
1 - INSTALLATION AND COMMISSIONING

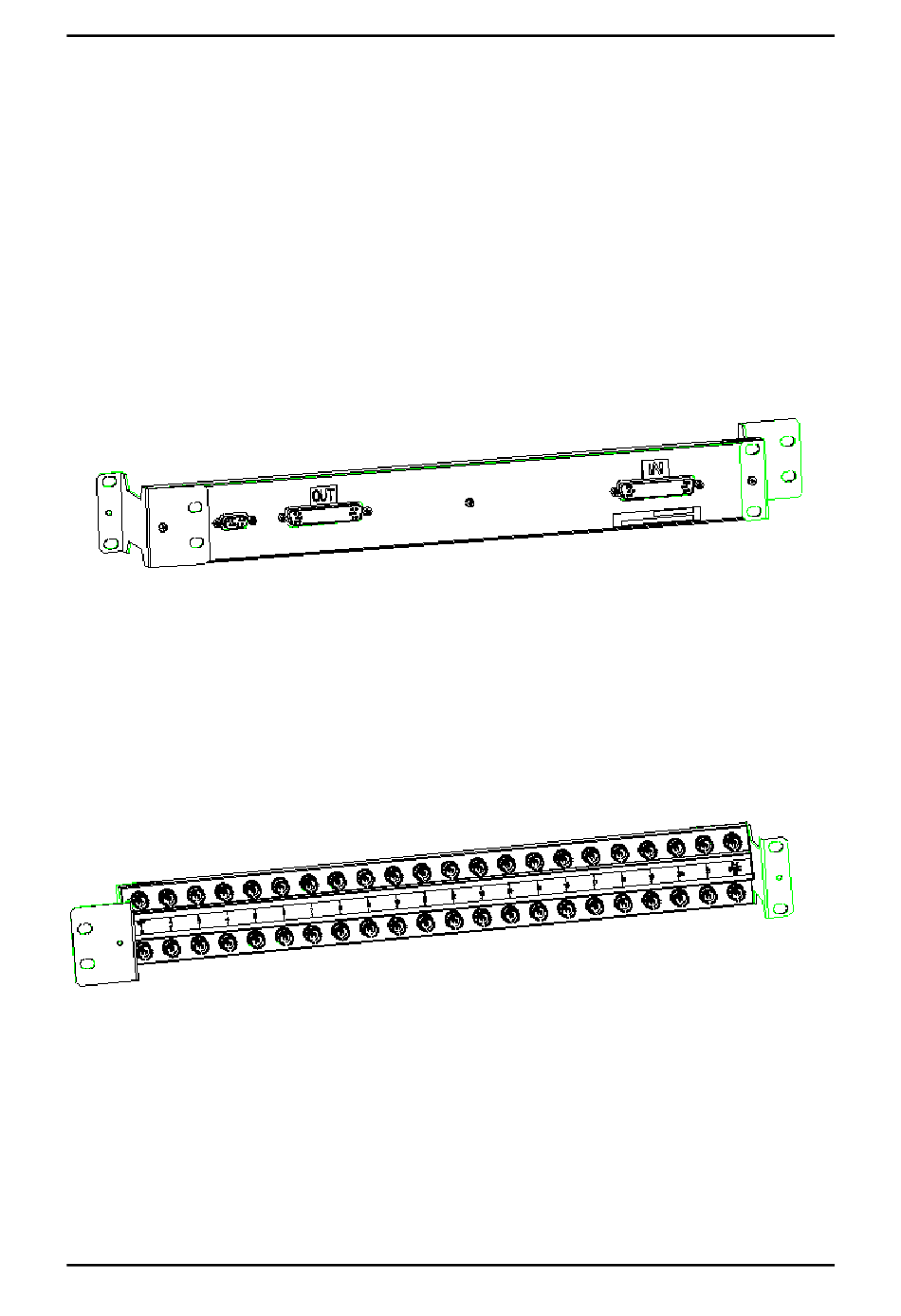

Figure 1-9 – 75 Ω Ω Ω Ω connecting strip
Installation and User Guide - N56717020104
Page A1-21
