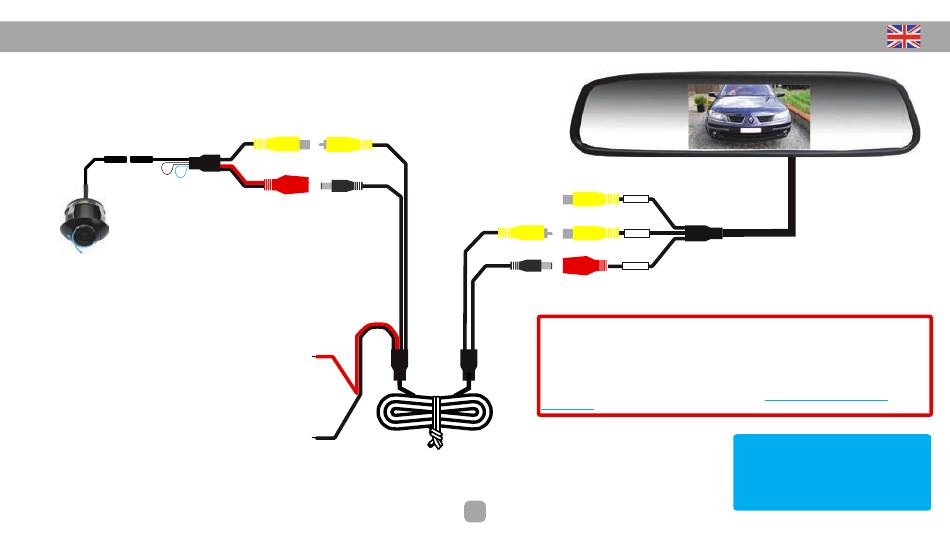

4. SYSTEM CONNECTION

Loop :
•Loop (1) : camera mirror
•Blue (2) : parking lines
Camera
Video
Power
RED
+12 V reversing light
BLACK
Ground
Optionnal camera
Video
Power
WARNING • VEHICLES NOT ALLOWING AN EXTRA POWER CONSUMPTION ON REVERSE LIGHT
On some vehicles, the +12 V Reversing light is noisy when the engine is running that may interfere with proper operation of the
parking sensors or reversing camera kit.
In other cases, +12 V Reversing light allows no additional power consumer.
For these vehicles, BEEPER has developed the RCANR2 module to retrieve information +12V Reversing light from the CANBUS
network. This module connects to the CANBUS compatible carrier and can deliver a +12 V Reversing light for connecting a
parking sensor or a backup camera
Ref : RCANR2, more info & list of compatible cars, please follow the link : http://www.beeper.fr/radar-camera-de-
recul/rcanr2.php
8 m. cable
For long vehicles, an extension of 8 m. are
optionally
Réf : RX40/8
15
CAM 2
CAM 1
DC12V
(1) CLOSED white loop: image NORMAL
OPENED white loop = image REVERSED
(2) CLOSED blue loop= templates VISIBLE
OPENED blue loop= templates NOT VISIBLES
Display
