Tonearm and Cartridge

The tonearm weight was removed for transport.
When mounting the turntable, turn it from behind
onto the tonearm and then adjust the tracking
force and anti skating.
On the TP 92 tonearm a lot of available pickups
can be mounted with a 12.5 mm (½ „) mounting
hole spacing.
To connect the cartridge, the four color-coded
cables are pushed onto the corresponding con-
nection pins at the back of the cartridge.
If the cartridge does not have a color code, con-
Fig. 8
nect to the following scheme:
R right Channel (Signal) ➔ red
G righ Channel (Ground) ➔ green
L left Channel (Signal) ➔ white
G left Channel (Ground) ➔ blue

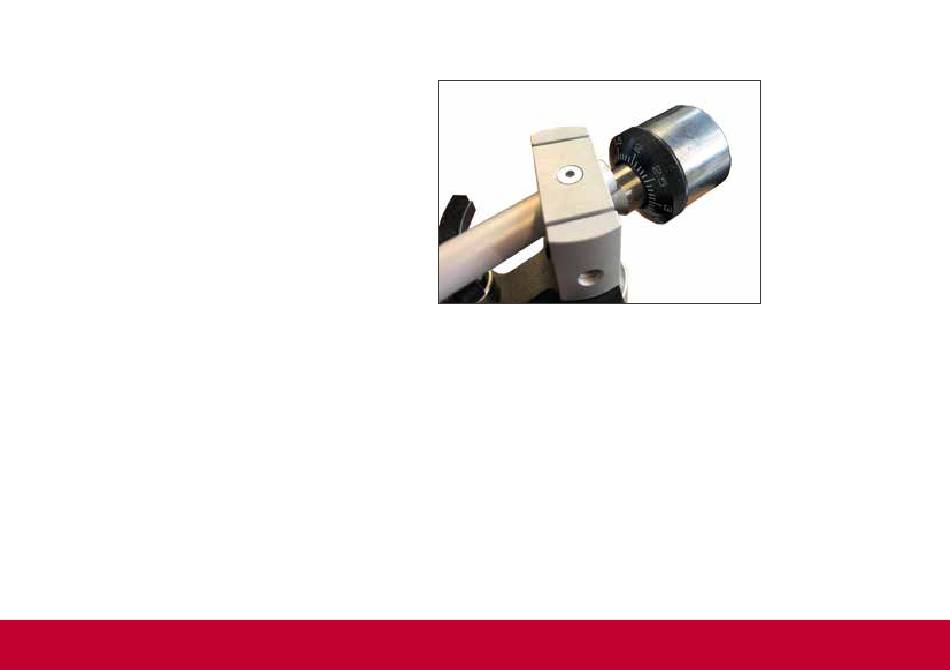

Adjustment of the tracking force is achieved by
turning the tonearm counter weight (Fig. 8). The
further the weight is turned forwards towards the
cartridge, the greater the tracking force.
TONEARM AND CARTRIDGE
