28
Assembling and Maintaining the RBK 615 Recumbent Exercise Bike
7. Lift the upright support and position its lower end over the
upright support channel on the body assembly. Slide the
support into position so that its screw holes line up with
the corresponding holes on the body assembly, as shown
in the following figure.
Note: If the support is positioned correctly, it rests on a
metal tab in the upright support channel.

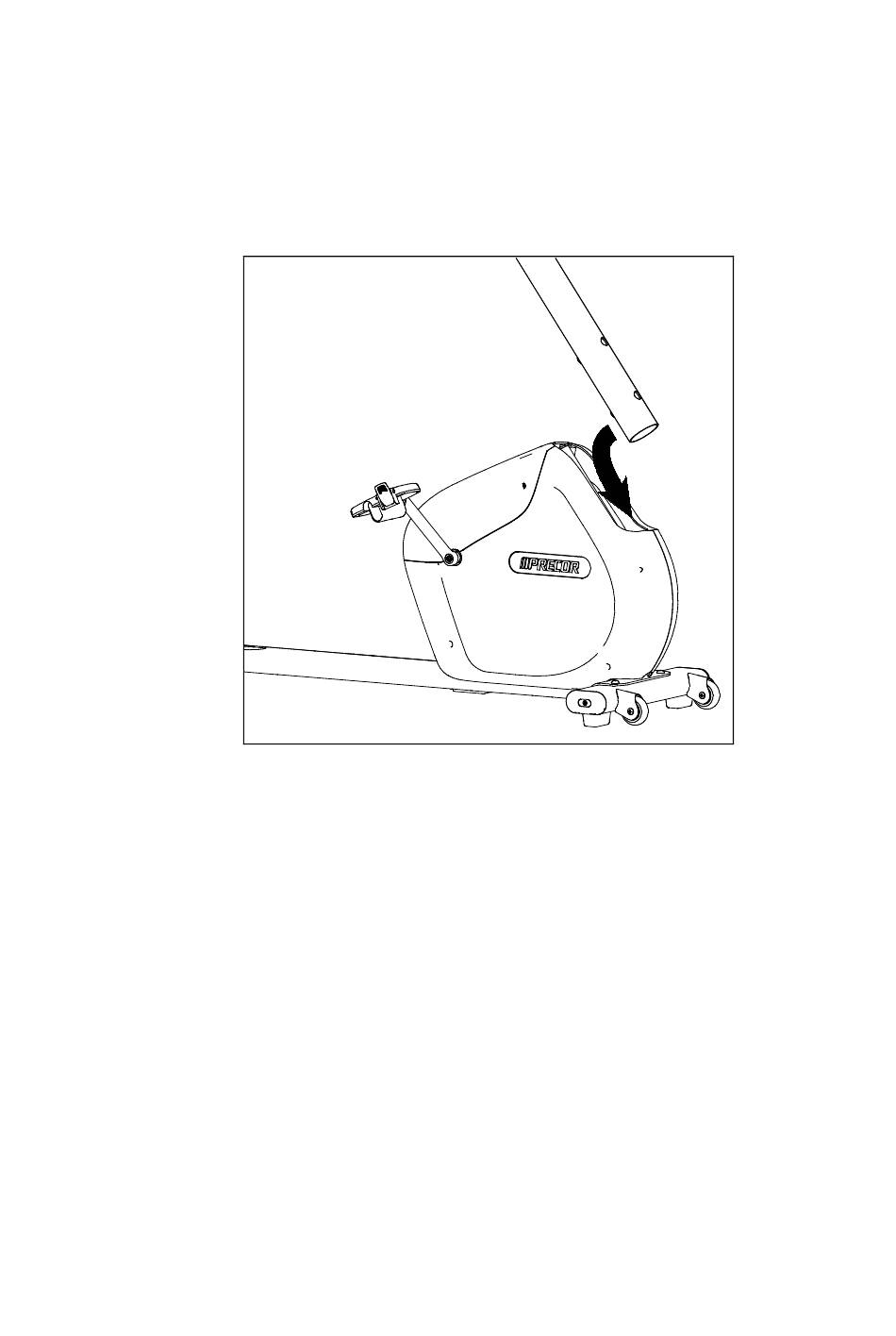

Figure 13: Upright support installation
Important: In the following step, be extremely careful not to
trap or pinch any of the cables between the mounting screws
and their seats.
